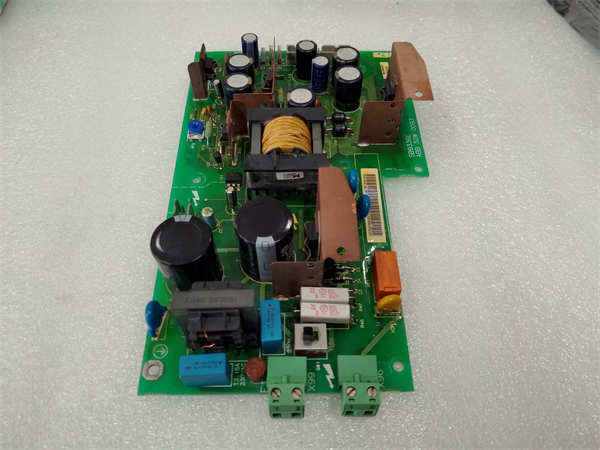

ABB SDCS-POW-1

Detailed Description of ABB SDCS-POW-1 Power Interface Board
Product Overview

The ABB SDCS-POW-1 power interface board is a key component in ABB automation systems, primarily used to provide power to other modules in the system. It usually serves as a distribution point for system power, distributing input power to multiple modules to ensure the normal operation of the system.

main features

Power distribution: Distribute input power to multiple modules to provide stable power supply.

Isolation protection: In some models, it may have isolation function to protect equipment from overvoltage, overcurrent and other faults.

Modular design: easy to install and maintain, and can be flexibly configured according to system requirements.

High reliability: Adopting industrial grade design, it has the characteristics of strong anti-interference ability and high stability.

Product parameters

Parameter Item Parameter Value Unit

Input voltage 24V DC, 48V DC, etc. (depending on the model) V

Output voltage: Multiple output channels, voltage range varies depending on the model and configuration

The output current varies depending on the model and configuration

Working temperature -20 ℃~+55 ℃

Installation method: DIN rail-

Note: The above parameters are only typical values. Please refer to the product data manual for specific parameters. The parameters of SDCS-POW-1 power interface boards of different models may vary.

Product specifications

Standards: IEC 61131-2, UL 508, EN 50178

Certification: CE

Environment: Working temperature: -20 ℃~+55 ℃

Size: Depending on the specific model

Series and Features

SDCS-POW-1 belongs to ABB Ability ™ The System 800xA ® hardware series is an important component of this system. Its main features include:

High integration: Integrating power distribution and protection functions into one.

Modular design: facilitates system expansion and maintenance.

Reliability: Using high-quality components to ensure long-term stable operation.

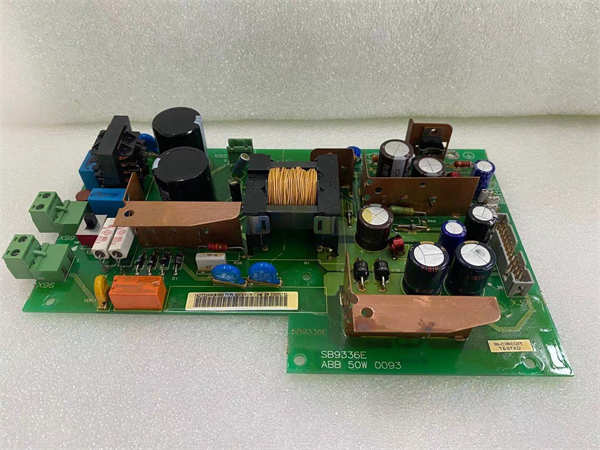

ABB SDCS-POW-1
Function and Application

The main function of the SDCS-POW-1 power interface board is to provide power to other modules in ABB automation systems. Its main uses include:

Power allocation: Allocate system input power to multiple modules, such as I/O modules, controllers, etc.

Isolation protection: In some cases, isolation protection can be provided to prevent the spread of faults.

System expansion: With the expansion of the system scale, power interface boards can be added to meet the demand.

application area

The SDCS-POW-1 power interface board has a wide range of applications in ABB automation systems, such as:

Process control system: provides power for various I/O modules and controllers.

Drive control system: provides power to the motor drive.

Power distribution system: plays the role of power distribution in the system.
