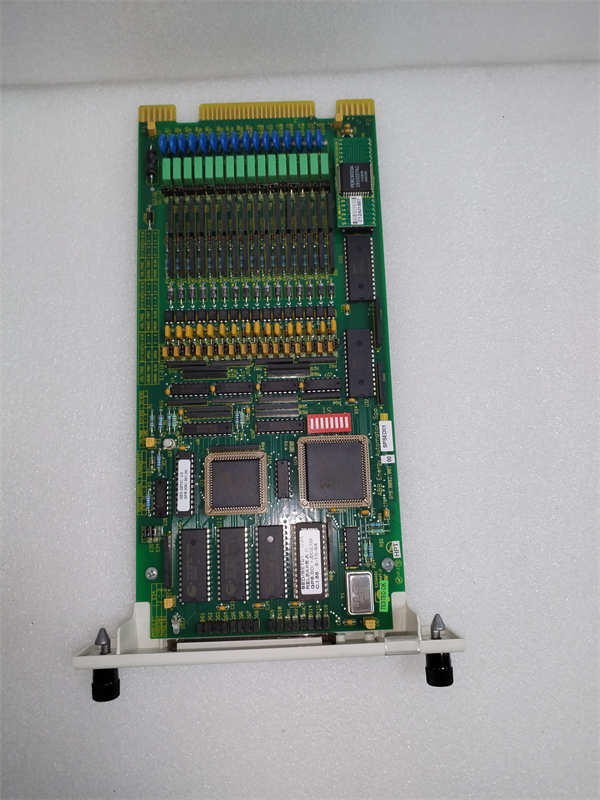

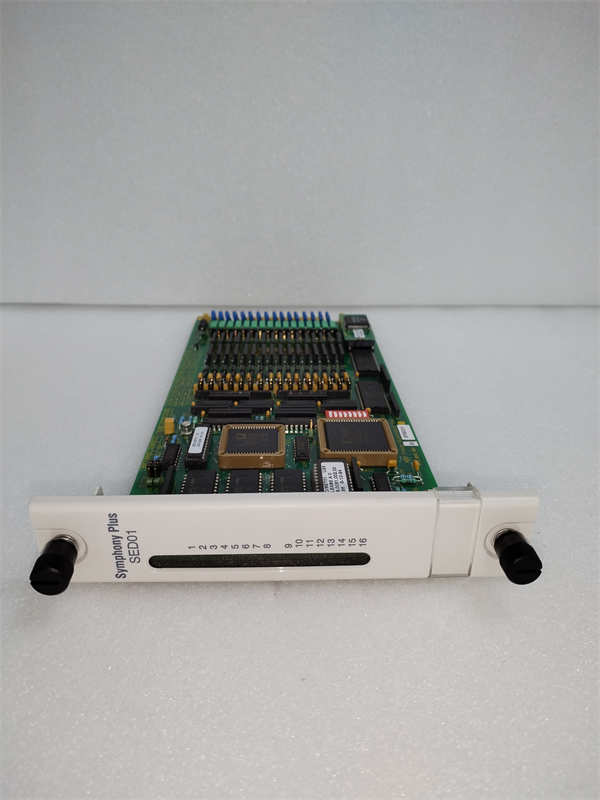

ABB SPSED01

ABB SPSED01 Event Sequence Digital Input Module
Product Overview

ABB SPSED01 is an event sequence digital input module mainly used to collect and record event sequences of digital signals in ABB automation systems. It can accurately capture changes in digital signals and record their timestamps and status information, providing key data for fault diagnosis, process analysis, and event reconstruction.

Product Features

High precision timestamp: capable of recording the time of event occurrence with microsecond level accuracy, providing accurate time reference for event analysis.

Multi channel input: Supports multiple digital input channels and can simultaneously monitor changes in multiple signals.

Flexible configuration: It can be flexibly configured according to different application requirements, including input types, triggering methods, etc.

High reliability: Adopting industrial grade design, it has high reliability and stability, and can operate reliably for a long time in harsh industrial environments.

Easy to integrate: It can be easily integrated into ABB automation systems, facilitating system integration and maintenance.

Product parameters

Parameter Name Parameter Value Unit

16 input channels

Programmable input type, supporting multiple voltage and current signals

Time resolution microsecond level us

Working temperature -20 ℃~60 ℃

Working humidity 5%~95% RH%

The size depends on the specific model in millimeters

Weight depends on specific model kg

Note: Please refer to the latest product information provided by ABB for specific parameter values.

Product specifications

Compliant with standards: Compliant with relevant industrial standards.

Protection level: Different protection levels are provided according to specific models and application environments.

Power requirements: Provide different power requirements based on specific models and application environments.

Product function

The SPSED01 module is mainly used for:

Event sequence collection: Collecting and recording event sequences of digital signals to provide data for fault diagnosis and process analysis.

Time synchronization: Synchronize time with other devices to ensure the accuracy of event timestamps.

Data recording: Store the collected data inside the module or transmit it to the upper computer.

ABB SPSED01

Product Usage

Fault diagnosis: By analyzing the sequence of events, quickly locate the cause of the fault.

Process analysis: Monitor changes in process parameters and optimize the production process.

Data recording: Record important data during the production process to provide a basis for subsequent analysis.

application area

Power industry: power plants, substations, etc.

Process industries: petrochemicals, metallurgy, papermaking, etc.

Automobile manufacturing: production line monitoring, quality control, etc.
