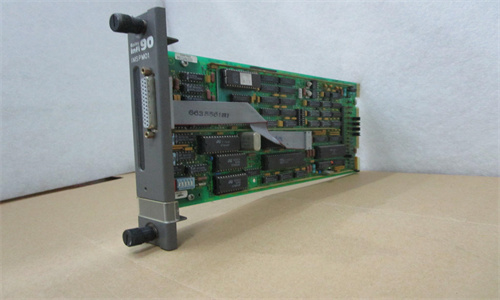

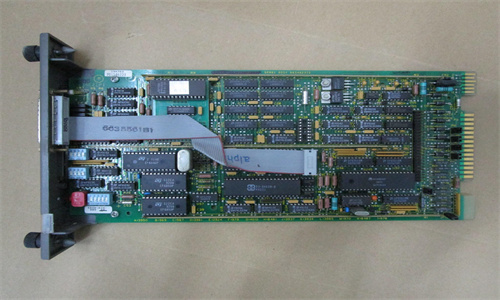

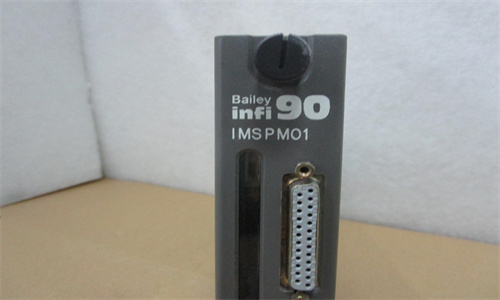

IMSPM01 BAILEY

For simple components, this setting is used to incorporate the horizontal value of the measured parameter, above or below which the starting state is established. In more complex components, a set of tuning values may need to be provided to determine the range of the measured parameters, which will cause the component to start< Strong>Start delay setting : This constant is used to set the startup delay between the startup and operation output states< Strong>Reset Delay Setting: This constant is used to set the delay between the operation output state and the return logic zero

Lockout Settings : The default value for all operands output by the comparator is either logical or; The flag is not set;. All comparators will enter the testing state after the running input is set to logic 1. If at any time the RUN input is changed to logic 0, the comparator will return to its default state. The running input is used to check the comparator. Lockout input is one of the inputs for operation control
