01. Product Features
YZ-5847 is an information security module specifically designed to block the transmission of drone image/remote control signals. This module has an average output power of 47dBm (50W), sufficient power, good flatness in the band, and small offset between the upper and lower bands. The module circuit board is made using a 4-layer high-frequency mixed pressure plate manufacturing process and a full board gold plating process. The product comes with operation indicator LED lights, efficient sweep frequency interference source with very small temperature drift, and a small signal high and low level control switch, making it easy to use for frequency hopping drones with good countermeasures.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
5700 |
|
5900 |
MHz |
|
|
output power |
46.5 |
47 |
47.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
3.8 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
45 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
0.22kg |
||||
|
size |
132*53*17 mm |
||||
|
Note: 1. The red line represents the positive pole, the black line represents the negative pole, and the yellow line represents the small signal line (if small signal control is not required, it can be connected in parallel with the red line for power supply) 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

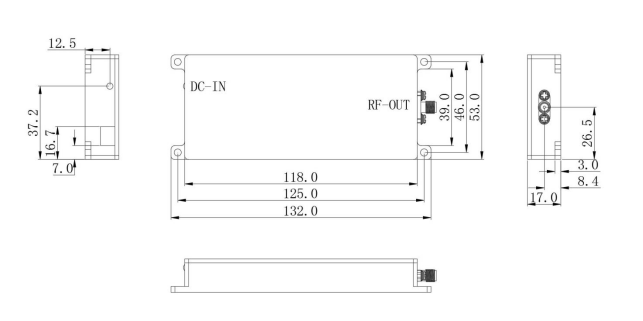

03. Structural dimensions
04. Test chart

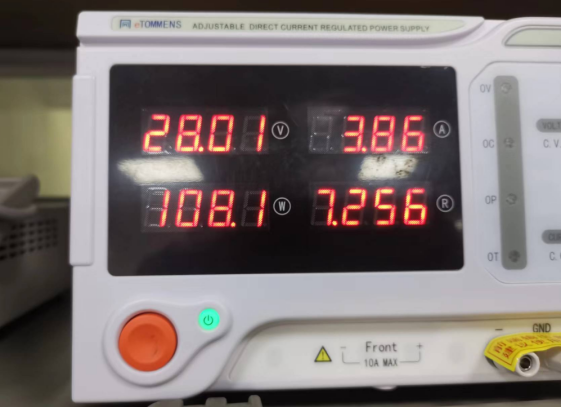

YZ-5847-Actual Power Supply Diagram

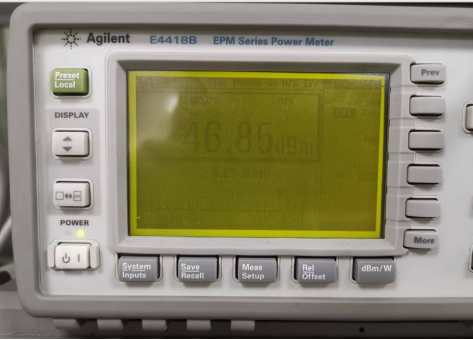

YZ-5847-Power Meter Test Diagram

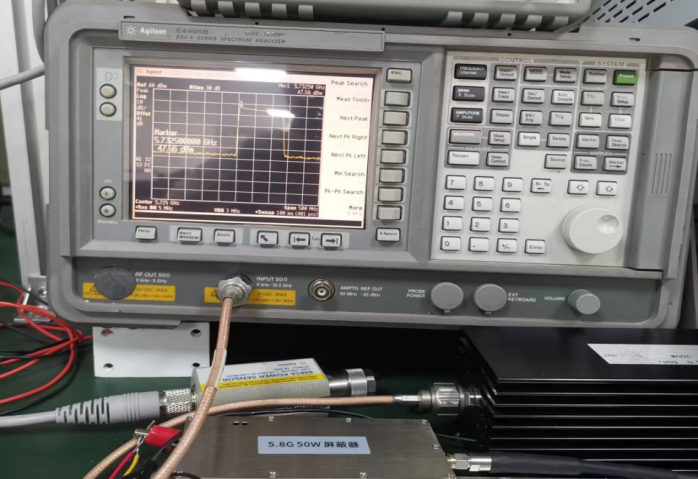

YZ-5847-Spectrum Test Diagram
