01. Product Features
YZ-2453 is an information security module specifically designed to block the transmission of drone image/remote control signals. This module has an average output power of 53dBm (200W), sufficient power, good in band flatness, and small upper and lower sideband offset. The product comes with an operation indicator LED light and a high-efficiency sweep frequency interference source with very small temperature drift, making it easy to apply and effective in countering frequency hopping drones.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
2400 |
|
2500 |
MHz |
|
|
output power |
52.5 |
53 |
43.5 |
Decibel meter |
|
|
In-band flatness |
|
1 |
|
decibel |
|
|
Working current |
|
15 |
|
one |
|
|
working voltage |
28 |
|
32 |
V |
|
|
工作效率 |
|
45 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
megahertz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
megahertz |
Module surface temperature 85 ° C |
|
weight |
1.06 kilograms |
||||
|
size |
205 * 112 * 18 millimeters |
||||
|
Note: 1. The red line represents the positive electrode, and the black line represents the negative electrode 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

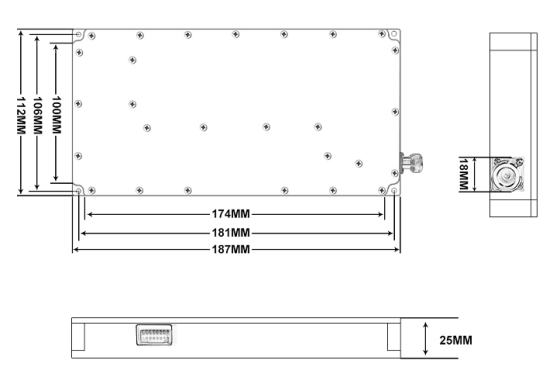

03. Structural dimensions
04. Test chart

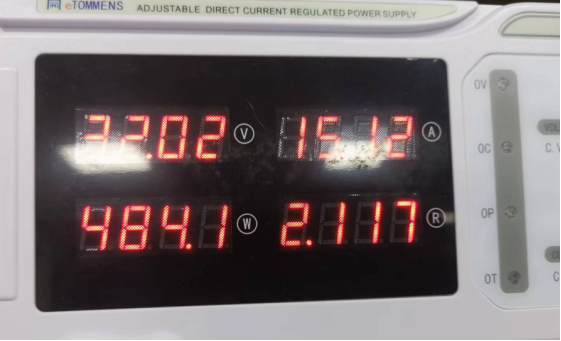

YZ-2453- Tested Power Supply Diagram

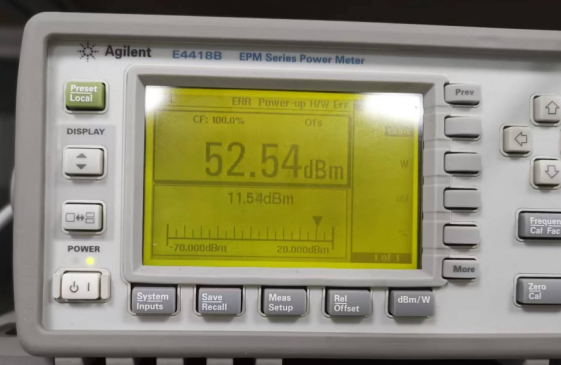

YZ-2453 Power Meter Test Diagram

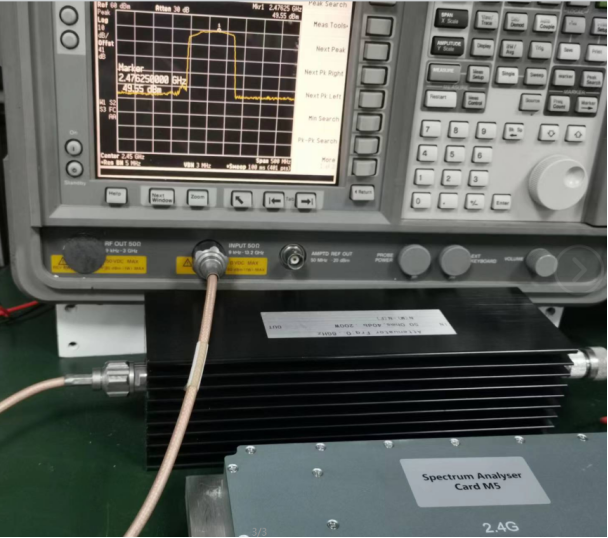

YZ-2453 Spectrum Test Diagram
