01. Product Features
YZ-5850 is an information security module specifically designed to block the transmission of drone image/remote control signals. This module has an average output power of 50dBm (100W), sufficient power, good flatness in the band, and small offset between the upper and lower bands. The module circuit board is made using a 4-layer high-frequency hybrid board manufacturing process and a full board gold plating process. The product comes with operation indicator LED lights and a highly efficient frequency scanning interference source with very small temperature drift, making it easy to apply and effective in countering frequency hopping drones.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
5700 |
|
5900 |
MHz |
|
|
output power |
48.5 |
49 |
49.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
6.4 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
45 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
0.88kg |
||||
|
size |
205*112*25 mm |
||||
|
Note: 1. The red line represents the positive electrode, and the black line represents the negative electrode |
|||||

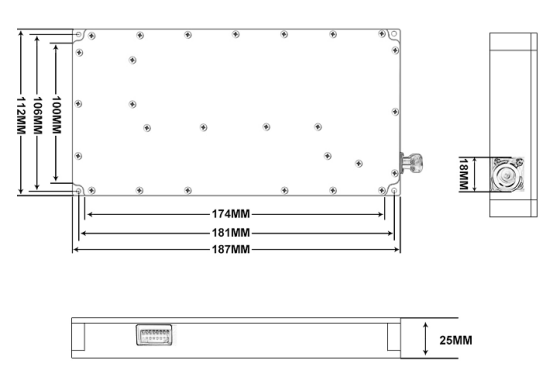

03. Structural dimensions
04. Test chart

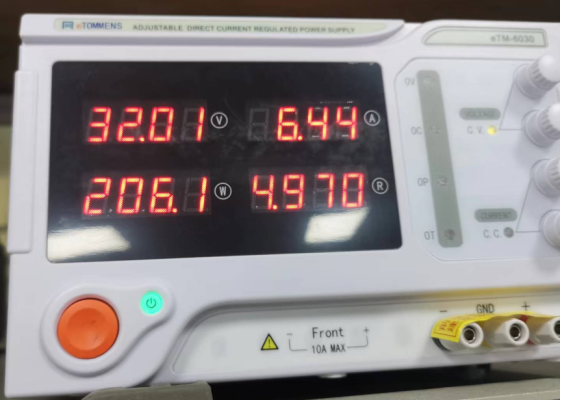

YZ-5850- Tested Power Supply Diagram

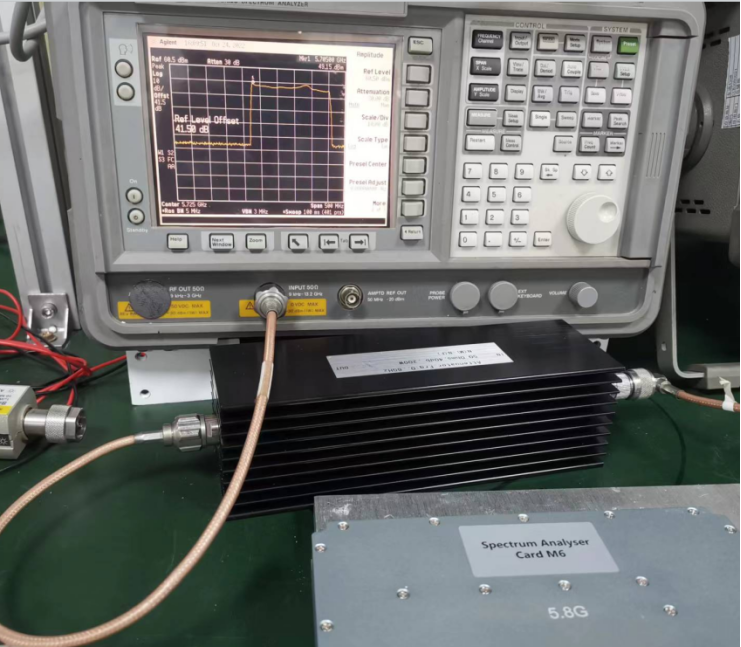

YZ-5850 Power Meter Test Diagram
YZ-5850 Spectrum Test Diagram
