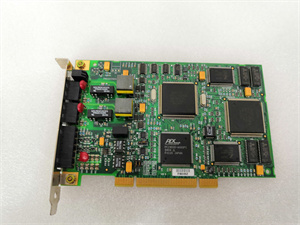

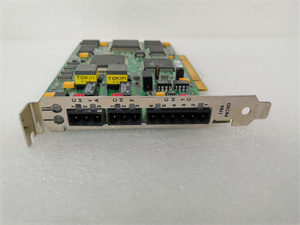

A-B 1784-PKTXD
A-B 1784-PKTXD Product Description
summary
A-B 1784-PKTXD is a half size 8-channel analog output module of Allen Bradley 1784 I/O series, with isolation function. It can be used to convert digital signals into analog signals so that PLC can control analog devices. A-B 1784-PKTXD has high precision, wide range, fast update rate, and robust isolation function, which can meet various application needs.

Product parameters

Number of channels:8

Output type:Current

Range:-20 mA to+20 mA

Accuracy:0.1%full scale

Resolution:12 bits

Update rate:250 Hz

Working temperature:-40 to 70°C(-40 to 158°F)

Storage temperature:-40 to 85°C(-40 to 185°F)

Humidity:5%to 95%non condensing

Vibration:5 G,10 to 500 Hz

Impact:5 G,11 ms

Isolation voltage:2500 V RMS

Product application

A-B 1784-PKTXD can be used for various applications,including:

process control

servo control

Valve control

temperature control

Lighting control

size

A-B 1784-PKTXD is a half size module with dimensions of 48 x 89 x 23.5 millimeters(1.89 x 3.50 x 0.93 inches).This makes it an ideal choice for applications with limited space.

quarantine

A-B 1784-PKTXD has a sturdy and durable isolation function,which can isolate on-site equipment from control systems.This can prevent current leakage and noise interference,and improve the reliability and safety of the system.
