01. Product Features
YZ-1245 is an information security module designed to block the transmission of GPS navigation systems in unmanned aerial vehicles. This module has an average output power of 45dBm (40W), sufficient power, good in band flatness, and small offset between upper and lower bands. The product is equipped with operation indicator LED lights, efficient sweep frequency interference source with very small temperature drift, and stable and reliable power supply through a through-hole capacitor. It is easy to apply and has good countermeasures for frequency hopping unmanned aerial vehicles.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
1100 |
|
1300 |
MHz |
|
|
output power |
44.5 |
45 |
45.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
2.9 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
38 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
0.22kg |
||||
|
size |
136*60*18mm |
||||
|
Note: 1. The positive electrode is connected to the through-hole capacitor, and the negative electrode is connected to the edge of the casing 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

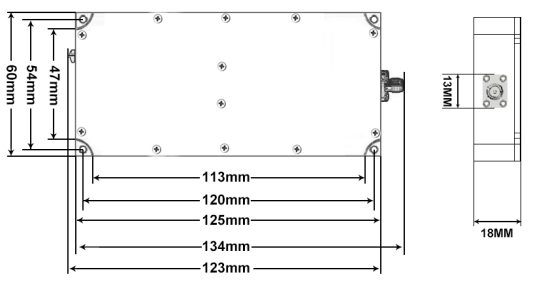

03.结构尺寸
04. Test chart

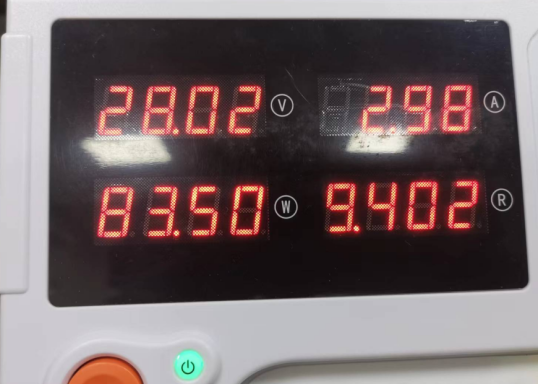

YZ-1245- Tested Power Supply Diagram

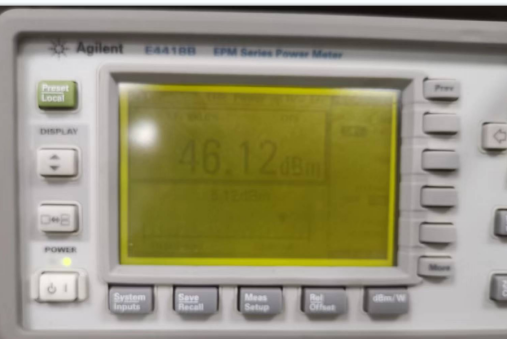

YZ-1245 Power Meter Test Diagram

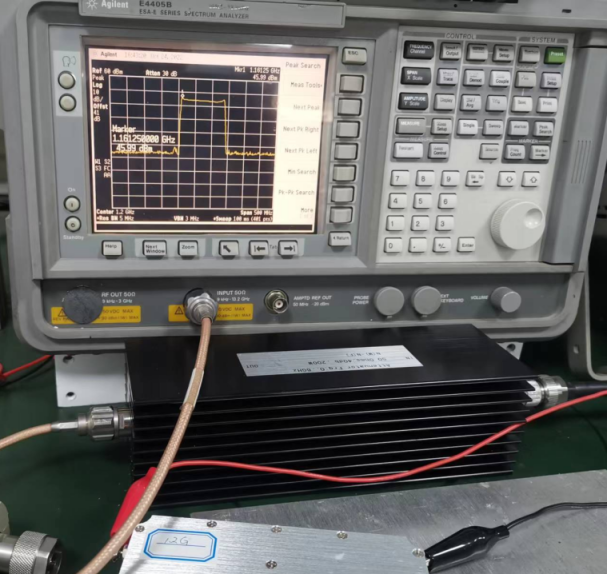

YZ-1245 Spectrum Test Diagram
