01. Product Features
YZ-2450 is an information security module designed to block the transmission of drone image/remote control signals. This module has an average output power of 50dBm (100W), sufficient power, good in band flatness, and small upper and lower sideband offset. The product is equipped with operation indicator LED lights, efficient frequency scanning interference source, and very small temperature drift, making it easy to apply. Frequency hopping drones have good countermeasures.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
2400 |
|
2500 |
MHz |
|
|
output power |
49.5 |
50 |
50.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
10.8 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
38 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
0.9kg |
||||
|
size |
220*102*27 mm |
||||
|
Note: 1. The red line represents the positive electrode, and the black line represents the negative electrode 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

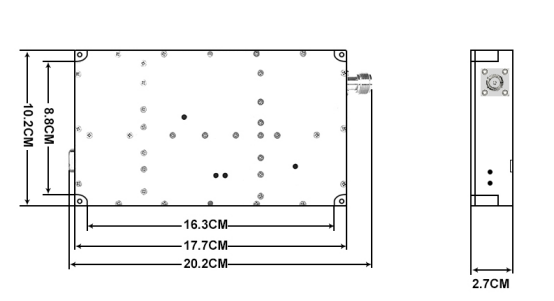

03. Structural dimensions
04. Test chart

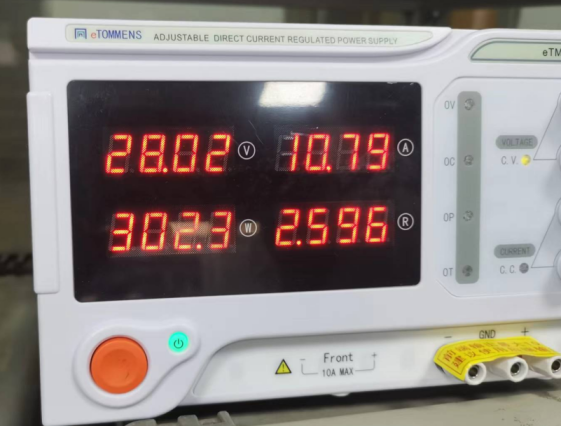

YZ-2450- Actual Power Supply Diagram

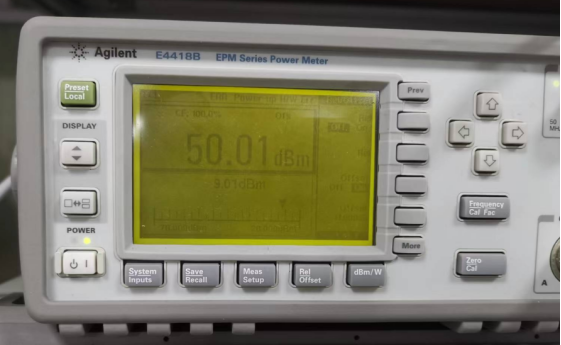

YZ-2450 Power Meter Test Diagram

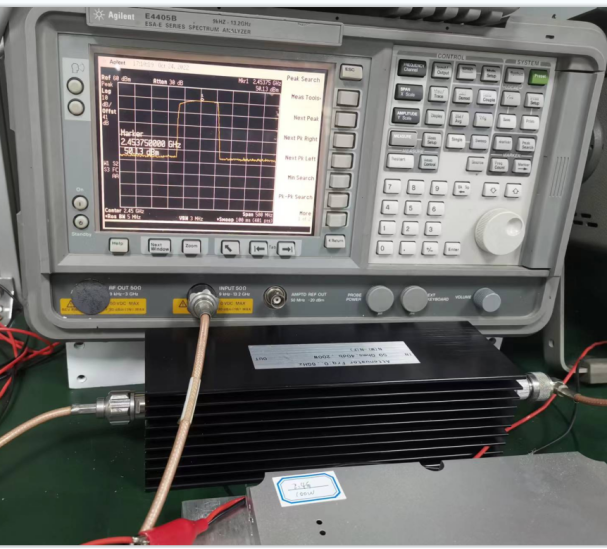

YZ-2450 Spectrum Test Diagram
