01. Product Features
TZ-1250 is an information security module specifically designed to block the transmission of GPS navigation signals in unmanned aerial vehicles. This module has an average output power of 50dBm (100W), sufficient power, good in band flatness, and small offset between upper and lower bands. The product is equipped with operation indicator LED lights and an efficient sweep frequency interference source with very small temperature drift, making it easy to apply and effective in countering frequency hopping unmanned aerial vehicles.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
1100 |
|
1300 |
MHz |
|
|
output power |
49.5 |
50 |
50.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
11.1 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
38 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
1.06kg |
||||
|
size |
205*112*18 mm |
||||
|
Note: 1. The red line represents the positive electrode, and the black line represents the negative electrode 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

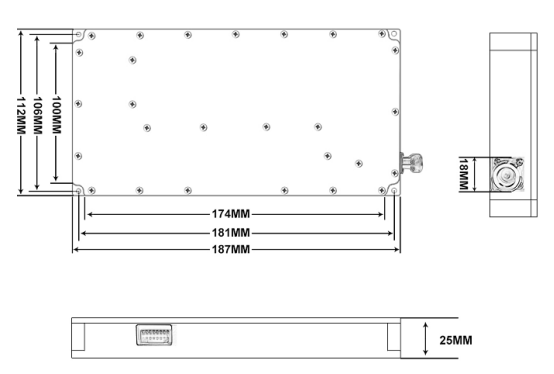

03. Structural dimensions
04. Test chart

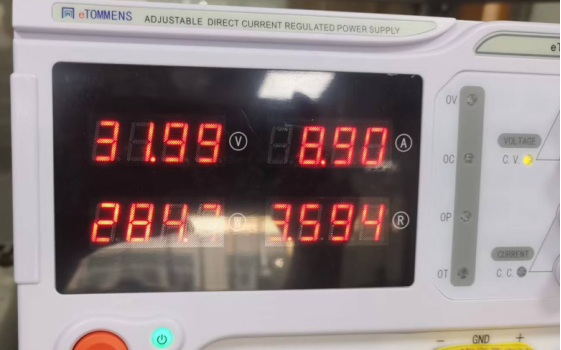

YZ-1250- Actual Power Supply Diagram

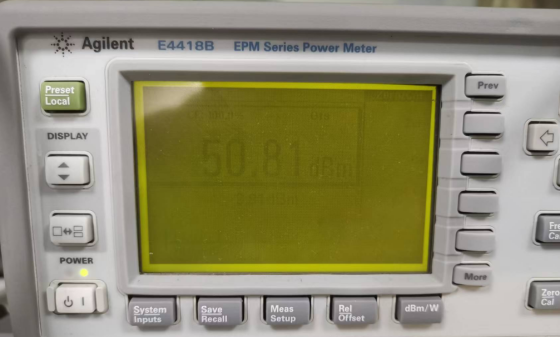

YZ-1250 Power Meter Test Diagram

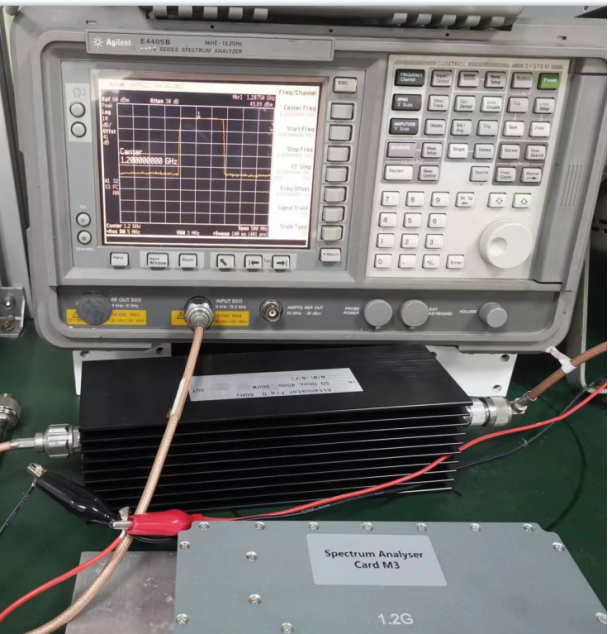

YZ-1250 Spectrum Test Diagram
