01. Product Features
YZ-1645 is an information security module specifically designed to block the transmission of GPS navigation systems in unmanned aerial vehicles. This module has an average output power of 45dBm (40W), sufficient power, good in band flatness, and small offset between upper and lower bands. The product is equipped with operation indicator LED lights, efficient sweep frequency interference source with very small temperature drift, and stable and reliable power supply through a through-hole capacitor. It is easy to apply and has good countermeasures for frequency hopping unmanned aerial vehicles.
02.主要性能指标
|
参数 |
特征值 |
单位 |
描述 |
||
|
|
最小 |
典型 |
最大 |
|
|
|
信号带宽 |
1550 |
|
1620 |
MHz |
|
|
输出功率 |
44.5 |
45 |
45.5 |
dBm |
|
|
带内平坦度 |
|
1 |
|
dB |
|
|
工作电流 |
|
2.9 |
|
A |
|
|
工作电压 |
28 |
|
32 |
V |
|
|
工作效率 |
|
38 |
|
% |
|
|
上边带热偏移 |
|
8 |
|
MHz |
模组表面温度85°C |
|
下边带热偏移 |
|
8 |
|
MHz |
模组表面温度85°C |
|
重量 |
0.22kg |
||||
|
尺寸 |
136*60*18mm |
||||
|
备注：备注：1.正极接穿心电容，负极接在外壳边缘 2.此模组请在连接好天线的情况下再通电，否则可能会损坏模组，供电前请确认电源电压是否在允许范围之内 |
|||||

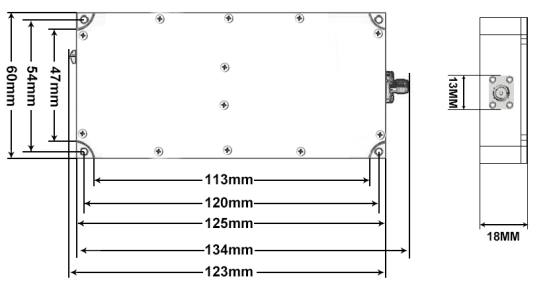

03.结构尺寸
04.测试图

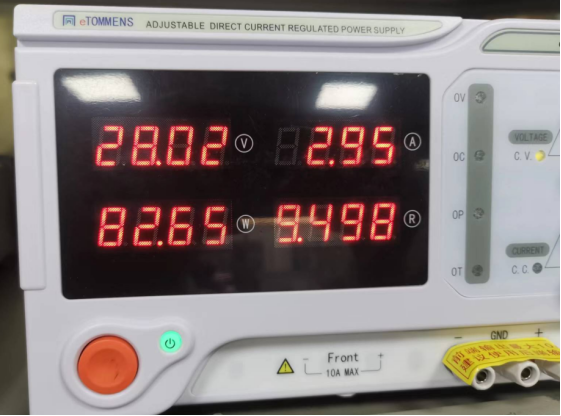

YZ-1645-实测电源图

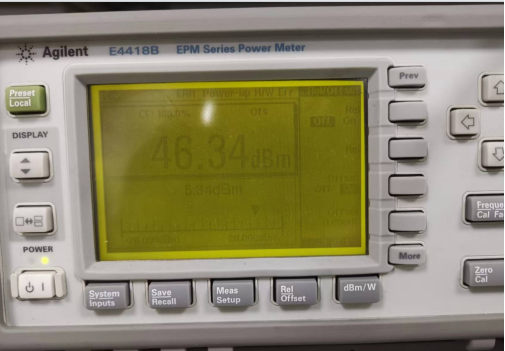

YZ-1645-功率计测试图

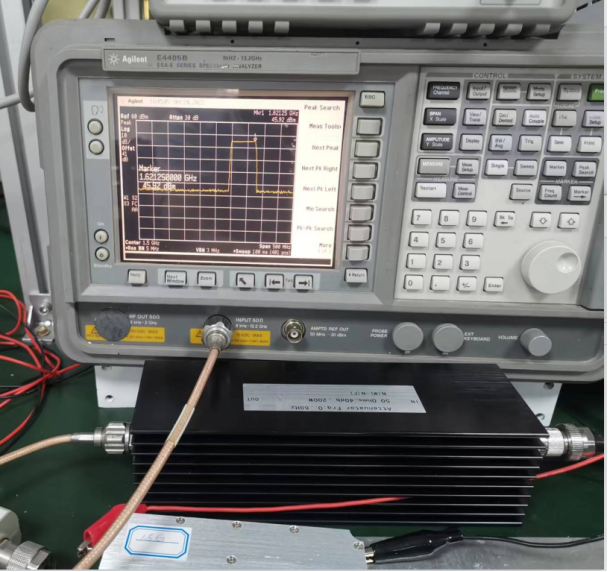

YZ-1645-频谱测试图
