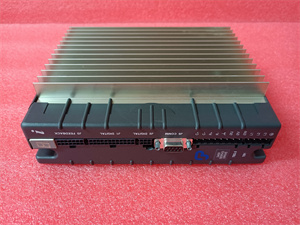

PACIFIC SCIENTIFIC PC3406AI-001-E

PACIFIC SCIENTIFIC PC3406AI-001-E Brushless Server Driver Detailed Explanation
Product Overview

The main Pacific Technology PC3406AI-001-E is a high-performance brushless servo drive used to drive various types of brushless motors and achieve precise motion control. This drive is widely used for its high performance, high performance, and flexible configuration.

Product Features

Performance: With features such as high motion, high speed, and high performance, it can meet various demanding motion control requirements.

Flexible configuration: Supports multiple control modes, such as position control, speed control, action control, etc., and can be flexibly configured according to different applications.

High reliability: Using industrial grade workpieces, it has multiple protection functions such as overload protection and overheating protection to ensure the stable operation of the system.

Easy to use: Provides a user-friendly interface and programming tools, making it convenient for users to set parameters and debug.

Rich communication functions: Supports multiple communication protocols such as CANopen, EtherCAT, etc., making it convenient to communicate with the upper computer.

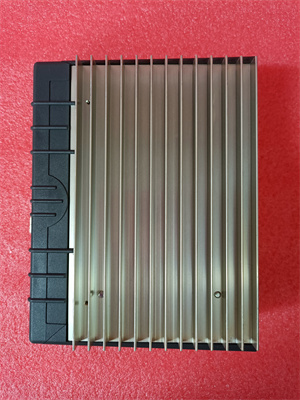

PACIFIC SCIENTIFIC PC3406AI-001-E

Product parameters (typical values, please refer to the product manual for details)

Rated voltage: 24V DC

Rated current: 6A

Peak current: 12A

Control methods: position control, speed control, action control

Communication interfaces: CANopen, EtherCAT

Protection level: IP20

Working temperature: -20 ℃~+60 ℃

Product specifications

Dimensions: Please refer to the product manual for specific dimensions

Installation method: DIN bracket installation or panel installation

EMC standards: comply with relevant EMC standards

Security certification: Complies with relevant security certification standards

Product series

The servo drive series of PC3406AI-001-E PACIFIC SCIENTIFIC company has multiple power levels and functional drives on its motherboard, which can meet the needs of different applications.

Product function and purpose

Motion control: used to drive various types of brushless motors to achieve precise motion control.

Automation Control: Evaluate fields such as industrial automation, robotics, and CNC machine tools.

Testing equipment: Used as a driving testing device in motors to achieve precise motion control.

application area

Industrial automation: production line automation, packaging machinery, logistics automation, etc.

Robots: robot joint drive, collaborative robots, etc.

CNC machine tools: spindle drive, feed axis drive, etc.

Semiconductor equipment: wafer transfer, testing equipment, etc.
