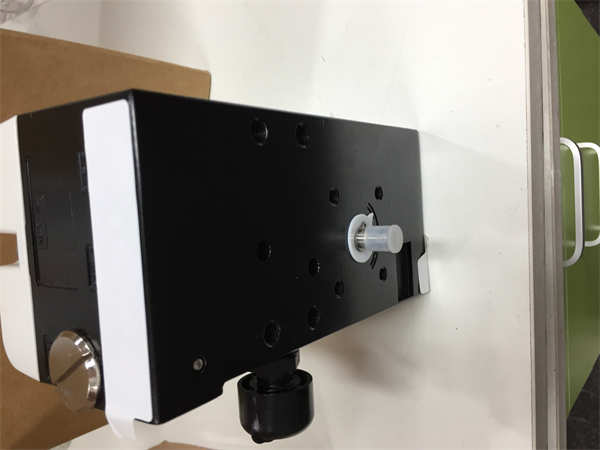

ABB TZIDC V18345-1010521001

ABB TZIDC V18345-1010521001 Electric Pneumatic Positioner Product Explanation
Product Overview

ABB TZIDC V18345-1010521001 is an intelligent valve positioner belonging to the ABB TZIDC series. It converts electrical signals into pneumatic signals, accurately controls the opening of valves, and thus achieves precise adjustment of process variables. This product is widely used in industries such as petroleum, chemical, power, metallurgy, etc., for regulating valves, actuators and other equipment.

Product features and functions

Intelligence: Adopting advanced microprocessor control technology, it has self-tuning, adaptive and other functions, and can automatically adjust parameters according to on-site working conditions to improve control accuracy.

High precision: Using high-precision sensors and A/D conversion technology to ensure the accuracy of control signals and improve control precision.

Multifunctional: It has multiple communication methods (such as HART, PROFIBUS, etc.), which facilitate communication with the upper computer and enable remote monitoring and parameter setting.

High reliability: using industrial grade components with good anti-interference and stability.

Easy to install and maintain: simple structure, easy installation, and low maintenance cost.

Product parameters and specifications

Please refer to ABB's official product manual for specific parameters. The following are general parameters:

Input signal: 4-20mA

Output signal: Pneumatic signal

Working temperature: -20 ℃~+85 ℃

Protection level: IP65

Communication methods: HART, PROFIBUS

Series Introduction

The ABB TZIDC series is an intelligent valve positioner series launched by ABB. This series of products has the characteristics of high precision, high reliability, and easy operation, and is widely used in the field of process control.

effect

Convert electrical signals into pneumatic signals: Convert electrical signals from the control system into signals required by pneumatic actuators.

Precise control of valve opening: Adjust the valve opening accurately based on the control signal to achieve precise control of process variables.

Improve control accuracy: By using self-tuning, adaptive and other functions, the stability and reliability of the control system can be improved.

ABB TZIDC V18345-1010521001

purpose

Regulating valve: used to control the opening of the regulating valve, achieving the regulation of process variables such as flow rate, pressure, temperature, etc.

Executor: Used to control the action of actuators and achieve automated control of equipment.

application area

Petrochemical industry: used to control parameters such as flow rate, pressure, temperature, etc. in various processes.

Electricity: used to control equipment such as boilers and turbines.

Metallurgy: Used to control parameters such as temperature and flow rate during the smelting process.

Paper making: used to control parameters such as flow rate and pressure during pulp preparation and paper processing.
