ABB-RTAC-01 Product Overview
Product Overview

ABB-RTAC-01 is a pulse encoder interface module produced by ABB. It is mainly used for drive equipment such as ABB frequency converters, providing an interface for connecting external pulse encoders to achieve precise feedback on motor speed or position.

Product parameters (typical values, please refer to official data for specific parameters)

Interface type: Digital pulse interface

Supporting encoder types: multiple types, please refer to the product manual for specific supported types

Power supply voltage: DC 24V

Working temperature: -25 ℃~+70 ℃

Size: Standard DIN rail installation size

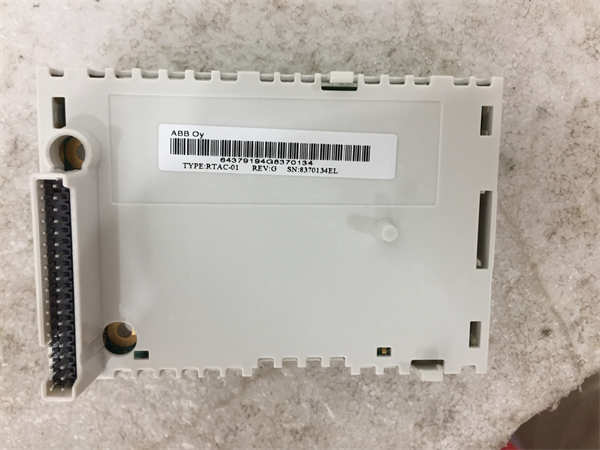

RTAC-01

Product specifications

Installation method: DIN rail installation

Protection level: IP20

Certification: CE, UL, etc

series

This product belongs to the ABB drive accessory series.

features

High precision: Provides high-precision speed and position feedback.

Strong compatibility: Supports multiple encoder types and ABB drive models.

Easy installation: DIN rail installation, convenient and fast.

High reliability: Adopting industrial grade design to ensure long-term stable operation.

effect

Speed feedback: Feedback the motor speed signal to the frequency converter to achieve closed-loop control.

Position feedback: Feed back the motor rotor position signal to the frequency converter to achieve precise position control.

Improve control accuracy: Improve the control accuracy of the drive system through precise feedback signals.

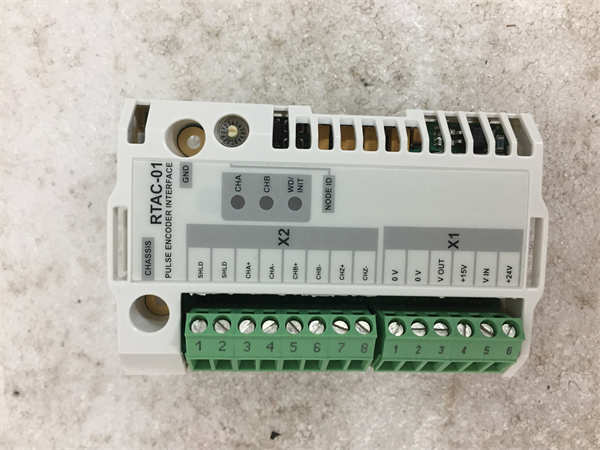

RTAC-01
