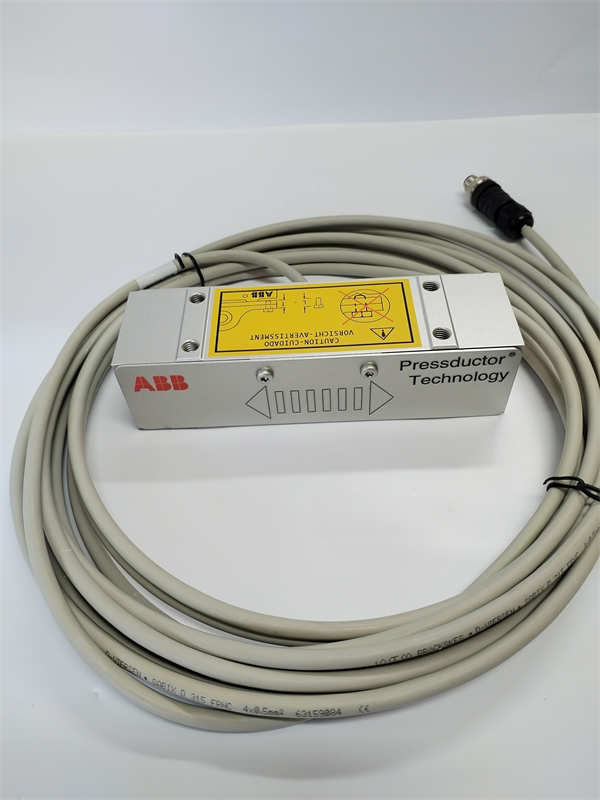

ABB PFTL301E

ABB PFTL301E Weighing Sensor Detailed Explanation
Product Overview

ABB PFTL301E is a high-precision and highly reliable tension load sensor mainly used for measuring tension. It belongs to the ABB PFTL series and is designed for applications that require precise measurement of tension, particularly suitable for industries such as papermaking, textiles, and plastics.

Product Features

High precision: With high measurement accuracy, it can meet the rigorous requirements of tension measurement.

High reliability: sturdy structure, strong durability, suitable for harsh industrial environments.

Low temperature drift: less affected by temperature, stable measurement results.

Quick response: Fast response speed, suitable for dynamic tension measurement.

Flexible installation: Various installation methods and strong adaptability.

Product parameters (typical values, specific parameters subject to actual product)

Range: Depending on the model, the common range is 1kN, 2kN, etc.

Nonlinear error: ≤ 0.05% FS

Repeatability: ≤ 0.02% FS

Creep: ≤ 0.03% FS/10h

Zero stability: ≤ 0.02% FS/10h

Output signal: mV/V (customizable)

Working temperature: -10 ℃~+50 ℃

Protection level: IP67

ABB PFTL301E
Product specifications

Material: Stainless steel

Dimensions: Different depending on the model and range

Interface type: cable type or lead type

Installation methods: beam type, micro type, etc

Series Introduction

The PFTL series is a high-performance weighing sensor series launched by ABB, widely used in the field of industrial automation. This series of sensors has the following characteristics:

High precision: High measurement accuracy, suitable for various weighing applications.

High reliability: sturdy structure and long lifespan.

Diversity: The product range is diverse and can meet the needs of different customers.

Function and Application

The main function of ABB PFTL301E is to measure tension and convert it into electrical signals. It is widely used in the following fields:

Paper industry: Paper tension measurement.

Textile industry: fabric tension measurement.

Plastic industry: film tension measurement.

Other industries: occasions requiring tension measurement

application area

ABB PFTL301E is suitable for various industrial automation fields, such as:

Process control: Achieving precise control over the production process.

Quality control: Ensure the stability of product quality.

Data collection: Collect tension data and conduct data analysis.
