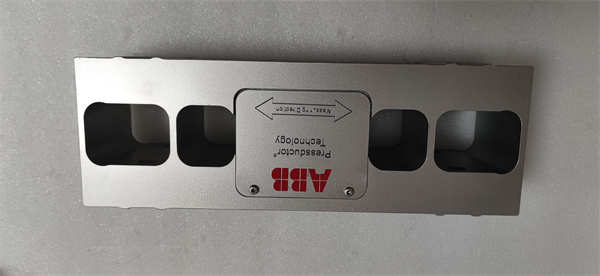

ABB PFTL101B 5.0KN 3BSE004191R1 Weighing Sensor Detailed Explanation
Product Overview

ABB PFTL101B 5.0KN 3BSE004191R1 is a high-performance weighing sensor belonging to the ABB PFTL series. This sensor is designed specifically for measuring large loads and is commonly used in industrial automation fields such as papermaking, textiles, metal processing, and other industries.

Product Features

High precision: With high measurement accuracy, it can meet strict weighing requirements.

High reliability: sturdy structure, strong durability, suitable for harsh industrial environments.

Low temperature drift: less affected by temperature, stable measurement results.

Quick response: Fast response speed, suitable for dynamic weighing.

Flexible installation: Various installation methods and strong adaptability.

Product parameters (typical values, specific parameters subject to actual product)

Range: 5.0kN

Nonlinear error: ≤ 0.05% FS

Repeatability: ≤ 0.02% FS

Creep: ≤ 0.03% FS/10h

Zero stability: ≤ 0.02% FS/10h

Output signal: mV/V (customizable)

Working temperature: -10 ℃~+50 ℃

Protection level: IP67

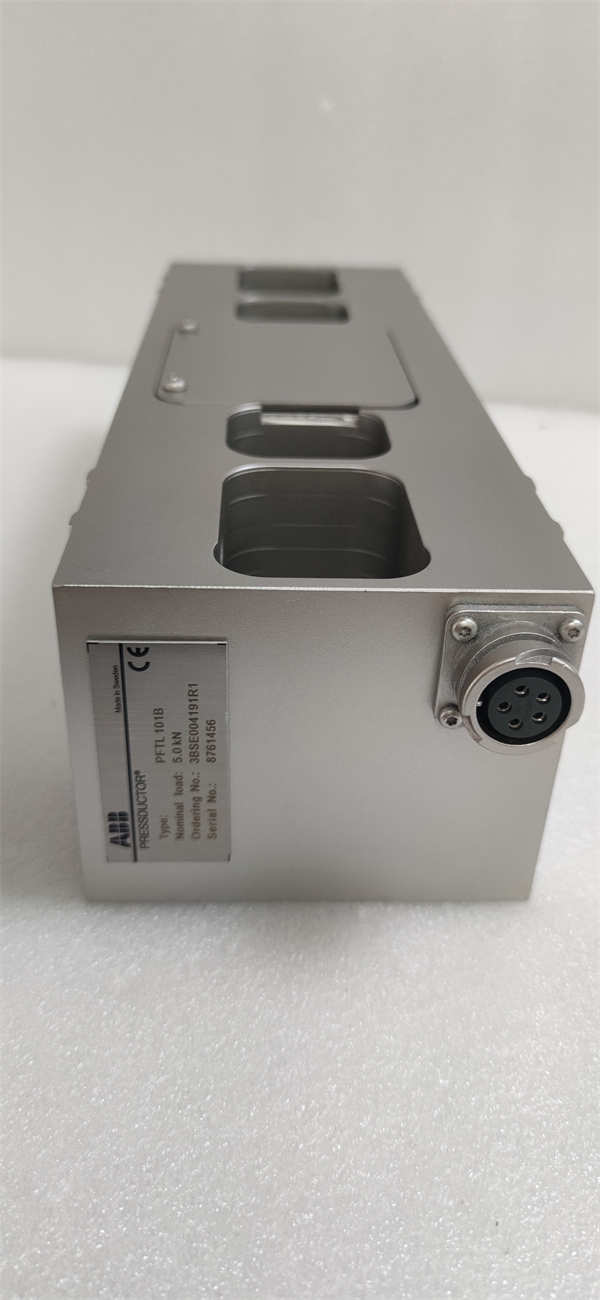

ABB PFTL101B 5.0KN 3BSE004191R1
Product specifications

Material: Stainless steel

Dimensions: Different depending on installation method and range

Interface type: cable type or lead type

Installation methods: embedded, surface mount, etc

Series Introduction

The PFTL series is a high-performance weighing sensor series launched by ABB, widely used in the field of industrial automation. This series of sensors has the following characteristics:

High precision: High measurement accuracy, suitable for various weighing applications.

High reliability: sturdy structure and long lifespan.

Diversity: The product range is diverse and can meet the needs of different customers.

Function and Application

The main function of ABB weighing sensor PFTL101B is to measure larger forces and convert them into electrical signals. It is widely used in the following fields:

Paper industry: measurement of paper tension.

Textile industry: fabric tension measurement.

Metal processing industry: tensile measurement.

Automated production line: tension control of various materials.

application area

The ABB weighing sensor PFTL101B is suitable for various industrial automation fields, such as:

Process control: Achieving precise control over the production process.

Quality control: Ensure the stability of product quality.

Data collection: Collect weighing data and conduct data analysis.
