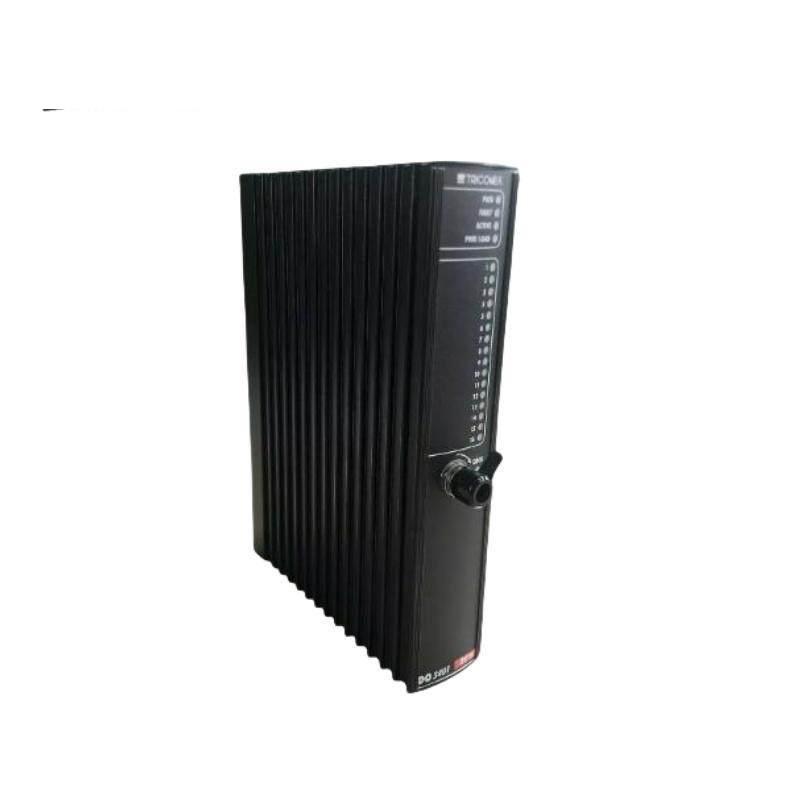

Model Type:Digital Output Module

Manufacturer:Invensys Triconex

Product ID:3401

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting; 3.0 A, typical

Degraded Mode Current:> 0.7 A, self-limiting; 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region

Leakage to Load (Off):Minimal

Commoned Points:16

Weight:N/A (not specified)

    The Invensys Triconex 3401 Digital Output Module is engineered for durability and precision, making it an ideal choice for demanding industrial environments.

    With its robust design, this module offers unparalleled reliability, ensuring stable performance under extreme conditions.

    Equipped with advanced circuitry, the Triconex 3401 Digital Output Module guarantees seamless integration with existing control systems, enhancing operational efficiency.

    Suitable for a wide array of applications, from automated production lines to complex process control systems, this module delivers consistent and accurate output signals.

    Manufactured with high-quality materials, the Invensys Triconex 3401 Digital Output Module adheres to stringent industry standards, ensuring longevity and minimal maintenance requirements.
