Operating Voltage:120V AC

Contact Rating:10A at 250V AC

Relay Type:Soldered

Relay Configuration:16 Form C

Insulation Resistance:≥1000MΩ

Operating Ambient Temperature:-40°C to +85°C

Storage Temperature Range:-55°C to +125°C

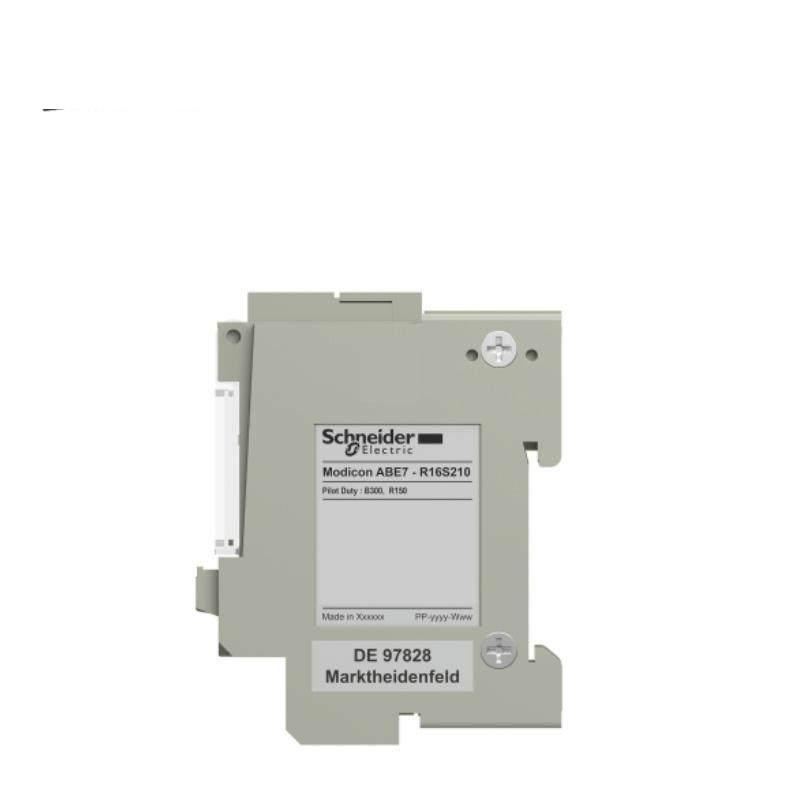

    Schneider’s ABE7-R16S210 soldered electromechanical relays are designed for durability and precision, making them an indispensable component in industrial control systems. These relays feature robust construction from high-grade bronze, steel, and copper materials, ensuring longevity and reliability in demanding environments.

    With 16 SPST contacts, this relay module offers versatile control capabilities, supporting a wide range of applications from simple switching tasks to complex circuit management. The relays are rated for 5A at 24V DC, providing ample current capacity for most industrial loads.

    Operating within a temperature range of -25°C to +85°C, these relays are engineered to withstand extreme conditions without compromising performance. They are compatible with both 12V DC and 24V AC power sources, offering flexibility in installation and integration.

    The screw terminal configuration simplifies connection, allowing for secure and easy wiring. The IP20 enclosure protects against dust and splashing water, enhancing safety and operational reliability in industrial settings.

    Designed for panel mounting, the ABE7-R16S210 is compact and space-efficient, facilitating seamless integration into control panels and automation systems. Its precise control and reliability make it a preferred choice for engineers and technicians seeking robust solutions for their industrial control projects.
