Type:High-Power IGBT Module

Model Number:FS450R12KE3/AGDR-61C

Operating Frequency:Up to 60 kHz

Peak Current Capability:1200 A

Switching Voltage:610 V DC

Temperature Range:-40°C to +125°C

Cooling Method:Air Cooling

Certification:IEC 60077-1, IEC 60077-2

Operating Voltage:Up to 690 V AC / 1000 V DC

Weight:Approximately 4.2 kg

Dimensions:225 mm x 125 mm x 120 mm

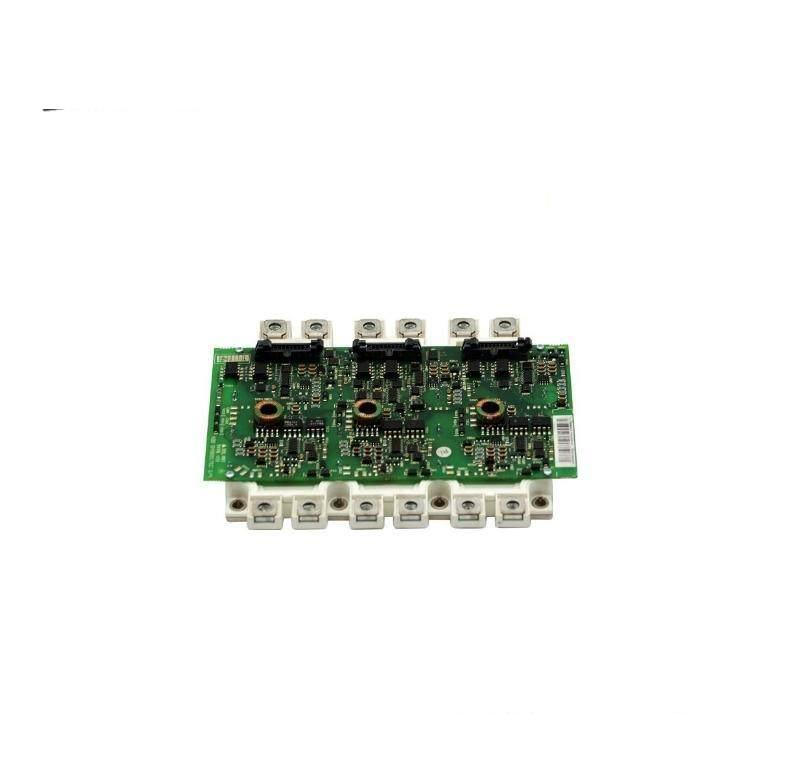

    The ABB FS450R12KE3/AGDR-61C IGBT Module is engineered to deliver exceptional performance and reliability in demanding industrial environments.

    Featuring advanced semiconductor technology, this module ensures precise power management and control, enhancing system efficiency and reducing energy consumption.

    Designed for seamless integration into a wide range of automation systems, it supports various control protocols and interfaces, facilitating easy setup and operation.

    Equipped with robust water cooling for enhanced heat dissipation, the FS450R12KE3/AGDR-61C ensures stable operation even under high ambient temperatures.

    With its high insulation class F and IP21 protection rating, this IGBT Module is safeguarded against dust and light splashes, ensuring longevity and reliability in industrial settings.
