Board Type:Communication Terminal

Model Number:CTB810

Series:HPC800

Operating Voltage:24V DC

Data Rate:Up to 1 Mbps

Protocol Compatibility:Modbus RTU/TCP, OPC-UA

Number of Channels:16

Dimensions (WxHxD):120mm x 80mm x 30mm

Weight:0.2kg

Operating Temperature Range:-20°C to +60°C

Humidity Range:0% to 95% non-condensing

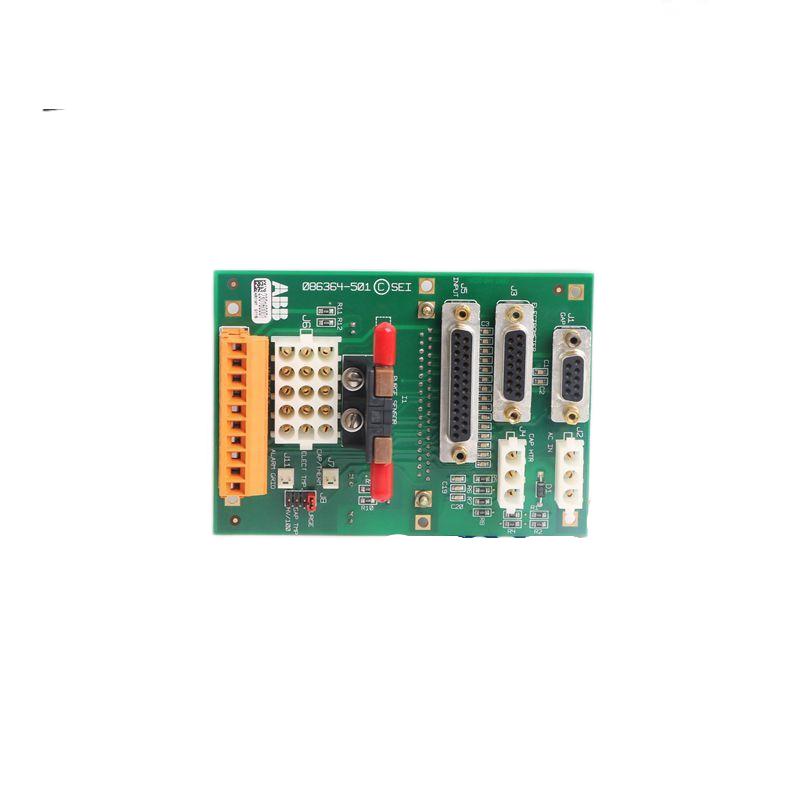

    The ABB CTB810 HPC800 Communication Terminal Board is meticulously designed to cater to the stringent demands of industrial automation environments. It boasts an impressive operating frequency of up to 10 MHz, ensuring rapid data processing and transmission.

    Equipped with support for multiple communication protocols including MODBUS, CANopen, and Ethernet/IP, this terminal board ensures compatibility across various industrial systems, enhancing interoperability.

    Compact yet robust, the CTB810 measures 127.5 x 185 x 59 mm, making it a space-efficient solution for integration into complex machinery and control panels. Its lightweight design, weighing less than 0.77 kg, allows for easy installation without compromising on performance.

    The terminal board operates with a low power consumption of less than 5 W, contributing to energy efficiency and cost savings in long-term operation. This feature is particularly advantageous in scenarios where power management is critical.

    Engineered with high-quality materials and advanced manufacturing techniques, the ABB CTB810 HPC800 Communication Terminal Board offers unparalleled reliability and durability, ensuring continuous operation even under challenging industrial conditions. Its robust construction withstands harsh environments, making it suitable for applications in manufacturing, automotive, and other industries requiring high levels of automation.
