Model Number:PR6423/005-031-CN CON041-CN

Sensor Type:Eddy Current Sensor

Measuring Range:2mm (80 mils)

Initial Air Gap:0.5mm (20 mils)

Operating Temperature Range:-25°C to +70°C

Resolution:0.01mm

Power Supply Voltage:10V to 30V DC

Output Signal:Square Wave, Frequency 30kHz

Operating Current:Max. 10mA

Material:Stainless Steel

IP Rating:IP67

Weight:0.25kg

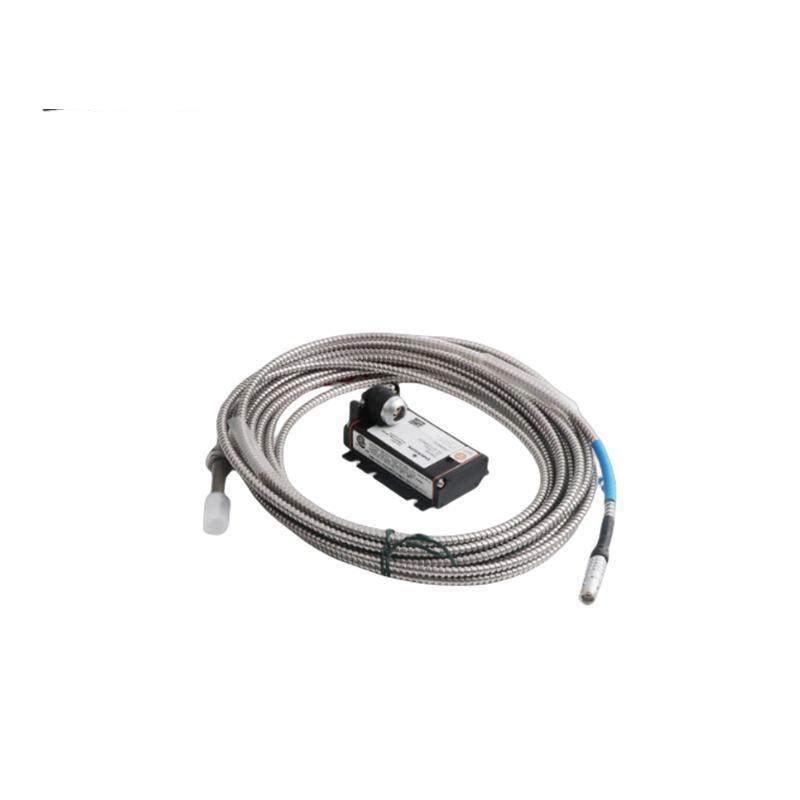

    Introducing the EPRO PR6423/005-031-CN CON041-CN Eddy Current Sensor, designed for critical industrial applications requiring exceptional accuracy and durability. This sensor is meticulously engineered to withstand harsh environments, ensuring reliable performance day after day.

    With a measuring range from ±1.0 mm (.04 in) in static conditions to dynamic measurements up to 500 μm (20 mils), it provides precise material identification and distance measurement capabilities essential for advanced automation systems.

    Featuring an innovative design that minimizes temperature errors to ±200 mV per 100˚ K, the EPRO sensor ensures high accuracy under varying environmental conditions. The zero point calibration ensures consistent readings, enhancing operational efficiency.

    The linear measurement range extends to 2 mm (80 mils) with a precise initial air gap of 0.5 mm (20 mils), making it ideal for applications requiring fine control over distances and material separation.

    Crafted from high-grade stainless steel, the EPRO PR6423/005-031-CN CON041-CN sensor boasts exceptional resistance to corrosion and wear, ensuring longevity and maintenance-free operation in even the most demanding industrial settings.
