Functional Product Description:Relay Output Board

Functional Product Acronym:TCRA

PCB Coating Style:Normal Coating

1st Functional Revision:A

Performance Impact:Functionality-enhancing product revision A

Dimensions:8.5 inches wide x 11 inches high

Hardware Components:Populated with 30 plug-in relays

Connectors:4x 34-pin, 4x 12-pin connectors

ID Assignments:JOR, JOS, JOT, JO for 34-pin, JS3, JS4, JS5, JS6 for 12-pin

Weight:Due to the weight of the relays, it requires secure mounting

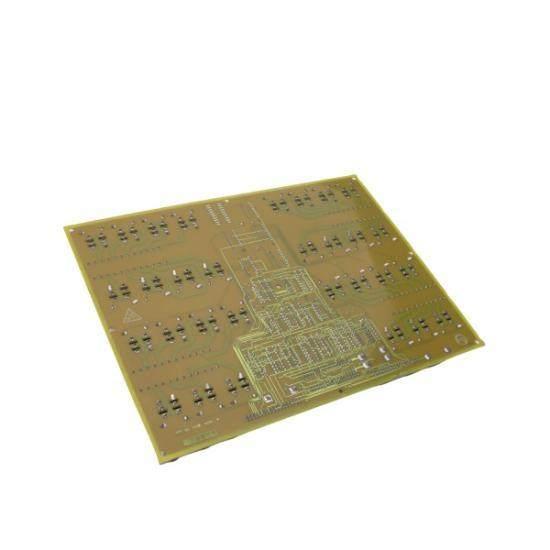

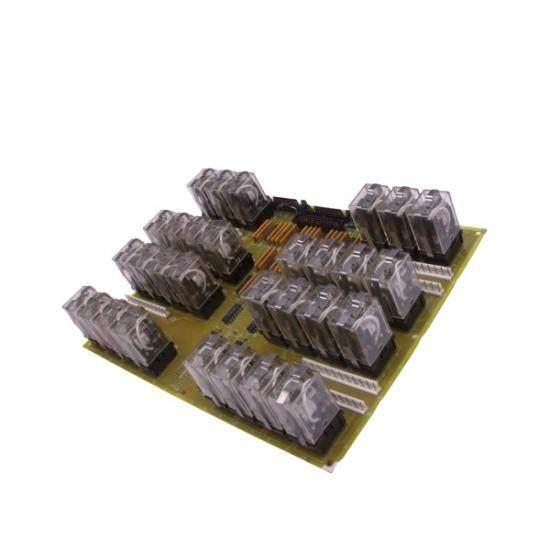

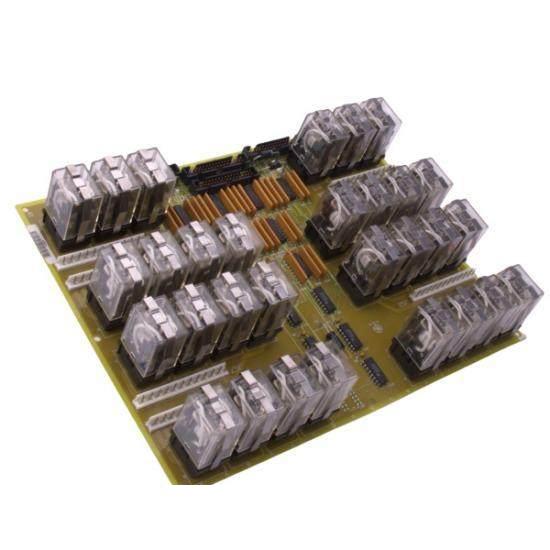

    Crafted with precision and durability, the GE DS200TCRAG1A Relay Output Relay is engineered to meet the stringent demands of modern industrial control systems. This high-performance module boasts an innovative PCB design with a normal coating, ensuring optimal signal integrity and longevity in challenging conditions.

    Featuring a total of 30 plug-in relays, this relay output board offers unparalleled reliability and efficiency, enabling seamless integration into various control circuits. With four 34-pin connectors and four 12-pin connectors, it caters to diverse application requirements, enhancing system flexibility and scalability.

    Adopted as part of the GE‘s renowned Mark V series, this module is specifically designed for integration into LM Turbine Control systems, ensuring compatibility and enhanced operational performance. Its meticulous design allows for easy installation and maintenance, minimizing downtime and maximizing productivity.

    Engineered with safety at its core, the DS200TCRAG1A Relay Output Relay complies with international safety standards, including UL and CE certifications. This ensures not only compliance but also peace of mind for users, knowing they are handling equipment that meets global safety benchmarks.

    Designed for longevity and reliability, the relay output board is built to withstand the rigors of industrial environments, offering extended operational life and reduced maintenance costs. Its compact yet robust design facilitates efficient rack mounting, saving space and enhancing system aesthetics.
