Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Operating Voltage:24 V DC

Current Consumption:Up to 200 mA

Communication Interface:Profinet

Number of Inputs/Outputs:2 x 8

Relay Outputs:No

Relay Rating:3A @ 250V AC / 2A @ 30V DC

Dimensions (WxHxD):48.2mm x 44.4mm x 19mm

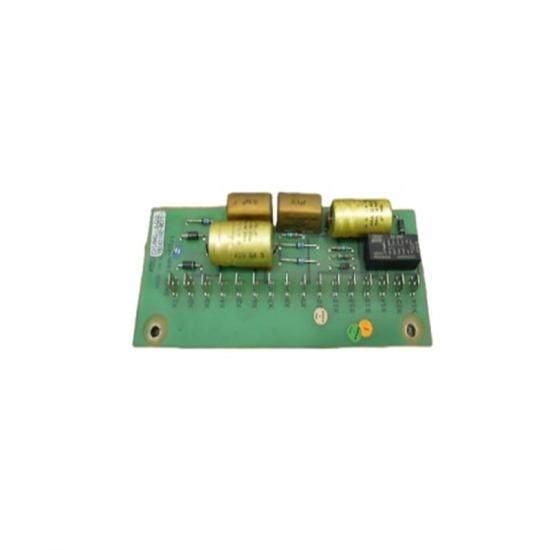

    The ABB DSQC 102 PC BOARD is engineered to provide seamless integration into complex automation environments, ensuring reliability and efficiency in managing industrial operations.

    Featuring an ergonomic design optimized for compact installation, this board effortlessly accommodates a wide range of industrial applications, from manufacturing lines to process control systems.

    With its robust build quality and IP20 protection rating, the DSQC 102 ensures durability in harsh industrial settings, enhancing system uptime and minimizing maintenance needs.

    Supporting both analog and digital input/output configurations, this module offers unparalleled flexibility, allowing users to tailor their automation solutions precisely to meet specific requirements.

    Backed by ABB’s industry-leading support and global service network, the DSQC 102 PC BOARD delivers peace of mind with easy access to expert guidance and comprehensive documentation, ensuring a smooth deployment and operation experience.
