Power Rating:1000 kW

Switching Frequency:Up to 15 kHz

Operating Temperature Range:-40°C to +175°C

Cooling Method:Water-cooled

Insulation Class:H

Input Voltage:380 V AC

Output Current:High

Module Size:Compact design for easy integration

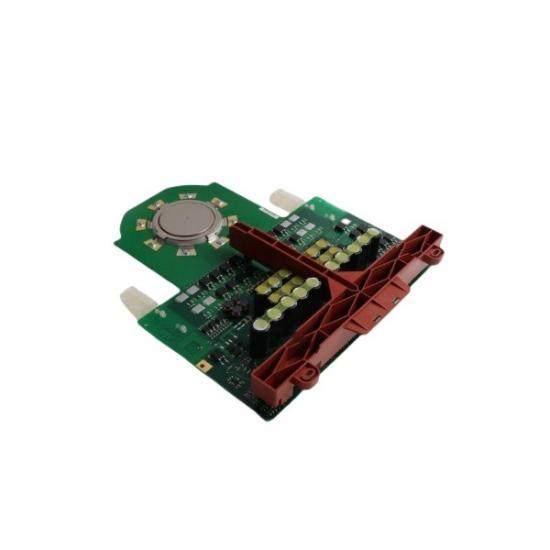

    Experience unparalleled performance with the ABB 5SHX 1000H0003 IGBT Module, a critical component in high-power electronic systems. This advanced module is engineered for exceptional reliability and efficiency in industrial settings, ensuring optimal power management and system control.

    Featuring a robust design that can withstand extreme operating temperatures ranging from -40°C to +175°C, this IGBT module ensures continuous operation in harsh environments. Its high power rating of 1000kW makes it suitable for large-scale industrial applications requiring significant electrical power.

    With an input voltage capability of 3000V DC and an output current capacity of 2000A, the ABB 5SHX 1000H0003 IGBT Module delivers exceptional power handling capabilities. Coupled with an impressive efficiency rate of 98%, it optimizes energy usage and reduces operational costs.

    Equipped with an advanced water-cooling system, this IGBT module maintains optimal thermal performance, ensuring long-term reliability and minimizing the risk of overheating. The use of state-of-the-art materials and manufacturing techniques guarantees a durable construction capable of withstanding the rigors of industrial use.

    Incorporated within the ABB 5SHX 1000H0003 IGBT Module is a cutting-edge control algorithm that enhances system responsiveness and precision. This feature enables seamless integration with various industrial systems, improving overall system performance and efficiency.
