Brand:ABB

Model:AO523

Type:Analog Output Module

Compatibility:Compatible with ABB PLC’s

Operating Temperature Range:-20°C to +55°C

Power Consumption:Less than 20mA at 24VDC

Output Current:0-20mA or 4-20mA

Accuracy:+/- 0.5%

Response Time:Less than 5ms

Enclosure Rating:IP20

Installation Type:Panel-Mount

Connection:DIN Rail

Dimensions:96mm x 96mm x 44mm

Weight:Approximately 120g

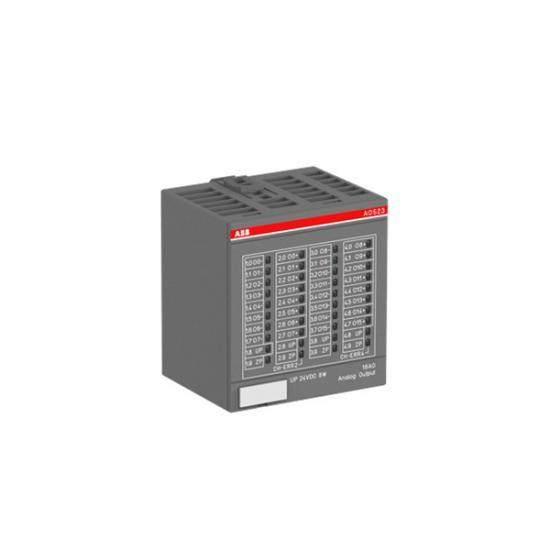

    The ABB AO523 Analog Output Module is engineered for optimal performance in a wide range of industrial settings, ensuring reliable and efficient control over actuators and sensors.

    With its compact design and modular architecture, this output module seamlessly integrates into various PLC systems, enhancing system scalability and adaptability to meet evolving industrial needs.

    Featuring a robust current capacity of 1A, the AO523 can handle demanding loads, making it suitable for applications requiring precise control over actuators in harsh environments.

    Supporting a broad signal range from -10V to +10V or 0V to 10V, the module ensures compatibility with diverse sensor outputs, facilitating accurate data conversion and transmission.

    Equipped with a modular bus interface, the AO523 offers flexible communication options, enabling seamless integration with other ABB products and third-party systems for enhanced system efficiency and control.

    Designed for ease of installation, the AO523 is a plug-in module, reducing setup time and complexity. Its compact size (100mm x 100mm x 10mm) and lightweight (0.1kg) make it ideal for space-constrained industrial setups.
