Operating Voltage:DC 24V

Input Current:Max. 100mA per channel

Output Current:Max. 250mA per channel

Number of Inputs:8 Analog Inputs

Number of Outputs:8 Digital Outputs

Communication Interface:RS-232, DeviceNet

Environmental Conditions:Operating Temperature: -25°C to +60°C, Storage Temperature: -40°C to +70°C

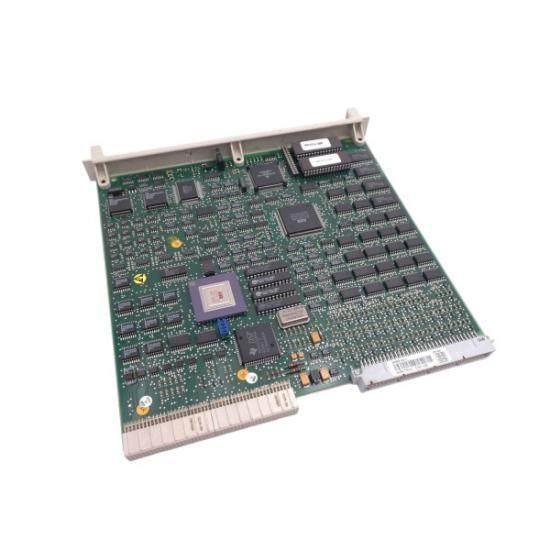

    The ABB DSQC335 3HAB6182-1 CONTROL BOARD is a versatile digital I/O module, optimized for integration into advanced control systems. Its compact design ensures efficient use of space on your control panel, making it ideal for both new installations and retrofit projects.

    Equipped with 16 digital inputs and 16 digital outputs, this board supports a wide range of applications, from simple on/off control scenarios to more complex logic operations. The high-quality materials used in its construction guarantee durability and long service life, even in harsh industrial environments.

    With an operating voltage of 24V DC, the DSQC335 is compatible with a broad spectrum of power supplies commonly found in modern manufacturing facilities. This compatibility ensures seamless integration with existing infrastructure, minimizing installation time and costs.

    The ABB DSQC335 comes with ABB‘s proprietary software interface, which simplifies programming and configuration. Users can easily configure the board’s settings through ABB‘s intuitive programming environment, ensuring quick setup and efficient operation.

    Safety and reliability are at the core of ABB‘s design philosophy. The DSQC335 has been rigorously tested to meet international safety standards, ensuring that it operates safely under various conditions. ABB‘s commitment to quality control means you can trust this module to perform consistently over extended periods.
