Model:3HAC5687-1/06

Brand:ABB

Series:DSQC509

Module Category:Panel Board Unit

Dimension (D x H x W):297.18 x 35.56 x 175.26 mm

Weight:0.6 kg

Operating Voltage:12-24 V DC

Input Current:≤ 50 mA

Output Current:≤ 20 mA

Communication Interface:RS-485

Protocol Support:DeviceNet, CANopen

Number of I/O Points:16 Digital Inputs, 16 Digital Outputs

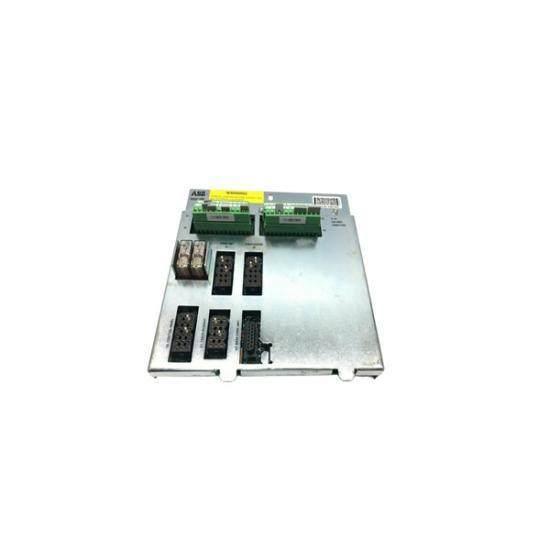

    The ABB 3HAC5687-1/06 DSQC509 Panel Board Unit is a high-performance control module tailored for industrial automation, featuring a robust design to withstand demanding environments.

    With its 8 analog input channels and 4 relay output channels, this unit provides versatile connectivity and control over a wide range of industrial processes.

    Equipped with a 24VDC power supply and RS-485 communication interface, it seamlessly integrates into existing systems, ensuring efficient data exchange and control.

    Operating within a temperature range from -25°C to +60°C, the DSQC509 Panel Board Unit is designed to function reliably under extreme conditions, making it suitable for diverse industrial applications.

    For storage, the device can handle temperatures from -40°C to +85°C, ensuring its durability even when not in use.

    Compact yet powerful, this control module measures 96mm in width, 120mm in height, and 51mm in depth, allowing for easy installation in tight spaces. Weighing only 0.15kg, it minimizes installation complexity without compromising on functionality.
