Product Type:IGCT Module

Module Class:High-Power

Manufacturer Part Number:3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010

Maximum Power Handling:Up to 10 MW

Operating Voltage:15 kV

Operating Current:10 kA

Switching Frequency:Up to 1 kHz

Cooling Method:Water-cooled

Dimensions (WxHxD):200 x 500 x 500 mm

Weight:150 kg

Environmental Conditions:Operable from -40°C to +60°C

Certifications:CE, UL, IEC, ISO 9001

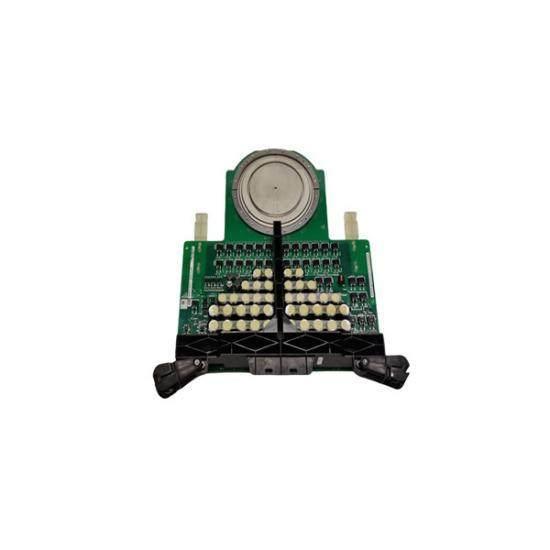

    The ABB IGCT module stands out in its class with a robust design that ensures exceptional performance under challenging conditions.

    Engineered with advanced semiconductor technology, this module offers unparalleled switching capabilities, making it ideal for renewable energy applications, electric vehicles, and industrial drives.

    Featuring an innovative cooling system, the ABB IGCT module maintains optimal thermal performance, enhancing its lifespan and reliability.

    Comprehensive diagnostic functions provide real-time monitoring, enabling predictive maintenance and reducing downtime.

    Designed for ease of integration into existing systems, the ABB IGCT module supports seamless installation and is compatible with a wide range of control systems, ensuring a smooth upgrade path for your power electronics infrastructure.
