Brand:Allen-Bradley

Series:Kinetix 6000

Module Type:Axis Module

Input Voltage:324-528V rms, 3-phase

Nominal Voltage:360 / 480V

Peak Current (RMS):15.3 Amperes

Peak Output Current (0-pk):21.6 Amperes

Continuous Output Power:3.9 kW

Internal Shunt Peak Power:5.6 KW

Internal Shunt Continuous Power:50W

Efficiency:98%

Capacitance:150 µF

Capacitive Rating:200,000 A (rms) symmetrical

PWM Frequency:8 kHz

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

Weight:22.3 lbs (10.1 kg)

Heat Dissipation:57-126 Watts

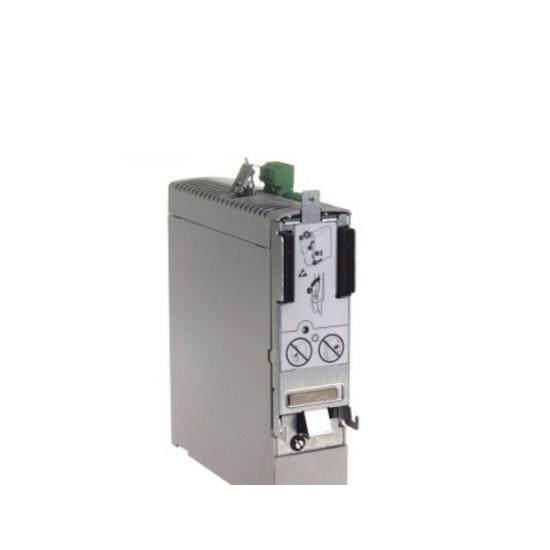

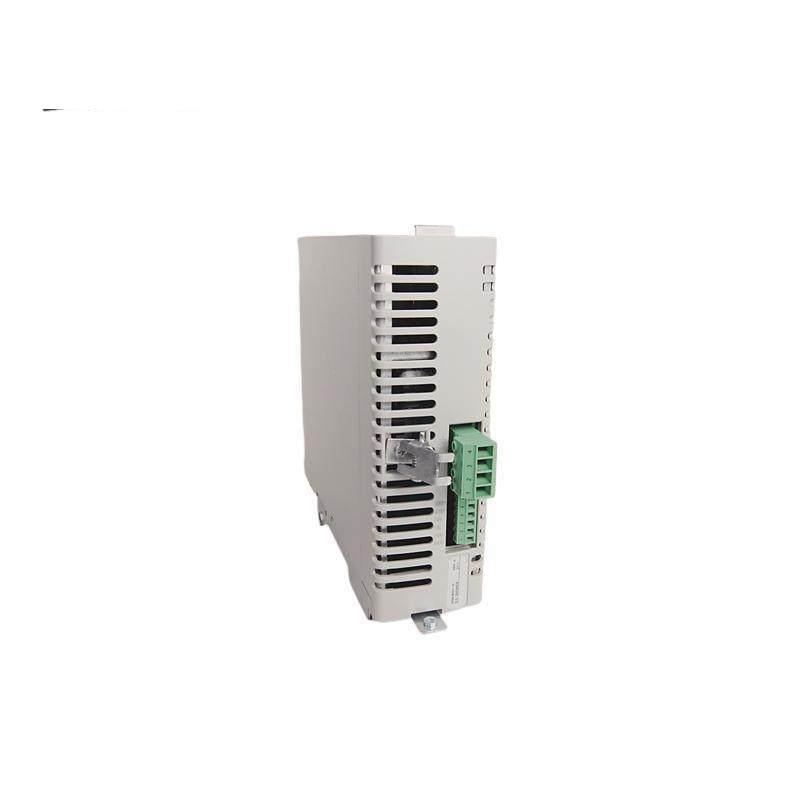

    The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for integration into the Kinetix 6000 Multi-Axis Drive Servo system. It offers exceptional efficiency and reliability, making it ideal for demanding industrial applications. With an integrated Safe Torque Off (STO) feature, this module ensures operator safety by automatically turning off power when necessary. The module’s robust design includes an internal shunt resistor rated at 115 Ohms, which helps in dissipating heat effectively. The built-in capacitors and PWM frequency ensure smooth and precise control over motor operations. Additionally, the module supports a wide range of input voltages and frequencies, allowing for flexible deployment across various industrial environments. Its advanced safety features, including Safe Speed monitoring and Zero Speed detection, provide comprehensive protection for both machinery and personnel. With a continuous output power of 3.9 kW and a peak current of 15.3 Amperes, this module delivers consistent and powerful performance, making it an indispensable component for modern industrial automation systems.
