Communication Protocol:Ethernet/IP

Data Transfer Rate:Up to 100 Mbps

Network Compatibility:Supports Modbus TCP/IP

Power Supply:DC 24V

Environmental Conditions:Operating temperature: 0°C to 50°C, Storage temperature: -20°C to 70°C

Dimensions:80mm x 80mm x 30mm

Weight:0.2kg

Safety Standards:CE Certified

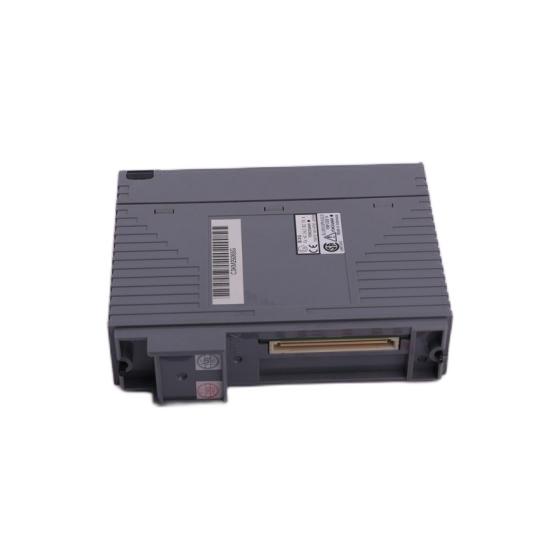

    The Yokogawa AIP502-S1 Coupler Module is a high-performance interface that seamlessly integrates into a variety of Distributed Control Systems (DCS), enhancing system connectivity and efficiency. With its Ethernet/IP compatibility, it supports a wide range of industrial protocols, ensuring compatibility across different devices and systems.

    Featuring a data transfer rate of up to 10/100 Mbps, the module ensures swift and reliable data exchange, crucial for real-time process control and monitoring. Its capacity to connect up to 32 nodes allows for scalability, making it suitable for both small and large-scale industrial applications.

    Built with energy efficiency in mind, the AIP502-S1 consumes less than 10 watts of power, reducing operational costs without compromising performance. It operates within an extensive temperature range (-10°C to 50°C) and maintains functionality in various humidity conditions (0% to 95% RH non-condensing), ensuring reliability in diverse industrial settings.

    The module’s IP20 (NEMA 1) enclosure type provides protection against dust and non-hazardous liquids, safeguarding the internal components from external hazards. This robust design ensures the longevity and maintenance-free operation of the coupler, even under challenging industrial conditions.

    Ease of installation is another highlight, with support for both panel and DIN Rail mounting options. This flexibility accommodates different installation preferences and space constraints, facilitating quick setup and integration into existing infrastructure.
