Number of Inputs:32

Input Voltage:24VDC

Current Consumption:80mA at 5V

Filter Time:3ms

Interrupt Channels:2

Isolation:Yes

Delay:50μs

Operating Temperature:-25°C to +70°C

Relative Humidity:5% to 95% non-condensing

Mechanical Dimensions:162mm x 105mm x 94mm

Weight:0.3kg

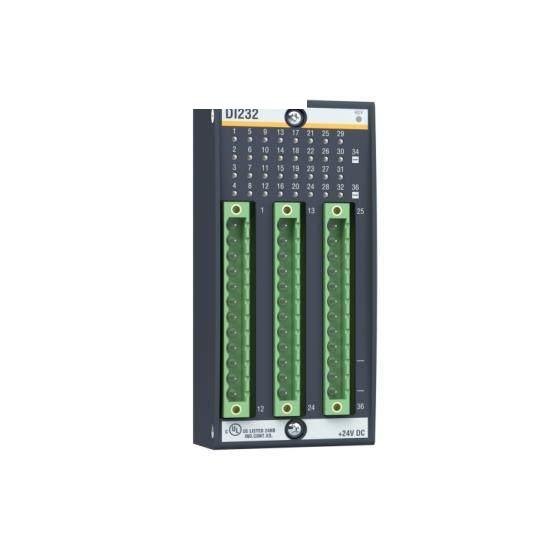

    The Bachmann Electronic DI232 is engineered with precision for industries requiring high-speed and accurate signal detection. Its robust design ensures longevity and reliability under harsh conditions.

    Each input channel is equipped with a 3ms filter to eliminate noise, ensuring precise signal interpretation. The dual interrupt channels facilitate real-time event handling, enhancing system responsiveness.

    With its compact size and lightweight construction, the DI232 is easily integrated into various machinery and control systems. Its isolation feature prevents interference between different circuits, ensuring system stability.

    Operating within a temperature range of -25°C to +70°C and withstanding humidity up to 95% non-condensing, the DI232 is suitable for a wide range of industrial environments, from cold storage facilities to dusty manufacturing floors.

    Backed by Bachmann’s commitment to quality, the DI232 comes with comprehensive technical support and a long-lasting warranty, ensuring peace of mind for users. Upgrade your industrial automation with the reliable and efficient Bachmann Electronic DI232.
