Model:ACS-CP-D

Type:Basic Control Panel

Power Supply:24V DC

Display:TFT touch screen, 256 colors, 10.4″

Resolution:640×480 pixels

Operating System:DigiVis

Memory:Built-in flash memory

Dimensions (HxWxD):250x105x290 mm

Weight:3 kg

Input/output:8 digital inputs, 2 digital outputs

Connectivity:Ethernet, USB

Programming Languages:Ladder Diagram, Function Block Diagram, Structured Text

Operating Temperature:-20°C to +55°C

Storage Temperature:-40°C to +70°C

Humidity:Relative humidity: 5 to 95%, non-condensing

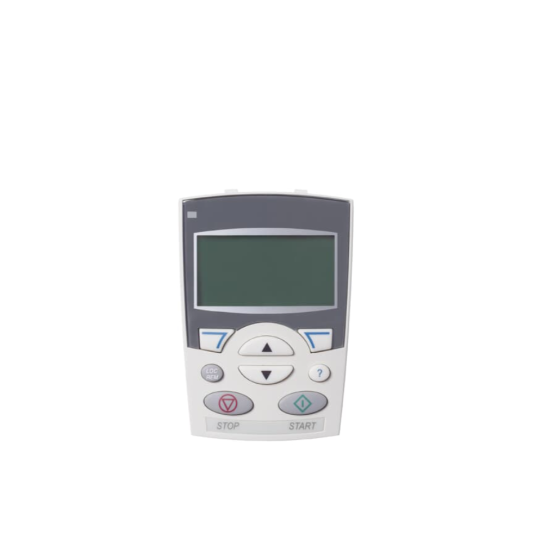

    The ABB ACS-CP-D Basic Control Panel is engineered to meet the stringent demands of modern industrial environments. Its compact yet robust design ensures durability and reliability in harsh conditions.

    Equipped with a high-resolution touch screen, the panel provides an intuitive user interface for easy setup and operation. Its intuitive design allows for quick customization to suit specific application requirements.

    Featuring a powerful microprocessor and ample memory, the ACS-CP-D delivers fast processing speeds and supports complex control algorithms without compromising on performance. This makes it suitable for applications requiring high-speed data processing and real-time response.

    With multiple communication interfaces, including Ethernet and Modbus protocols, the panel seamlessly integrates with various industrial systems, enhancing system connectivity and flexibility. This facilitates data exchange between different devices, improving overall operational efficiency.

    Designed for optimal performance across a wide temperature range (-20°C to +60°C), the ACS-CP-D is ideal for use in diverse industrial settings. Its compact size and lightweight construction make it easy to install and maintain in tight spaces or mobile applications.
