Operating Voltage:230 V AC

Current Capacity:30 A

Frequency:50/60 Hz

Protection Class:IP20

Weight:1.5 kg

Dimensions:145 x 115 x 80 mm

Input Resistance:≤ 0.05 Ohm

Output Voltage Tolerance:+/- 1%

Temperature Range:-20°C to +50°C

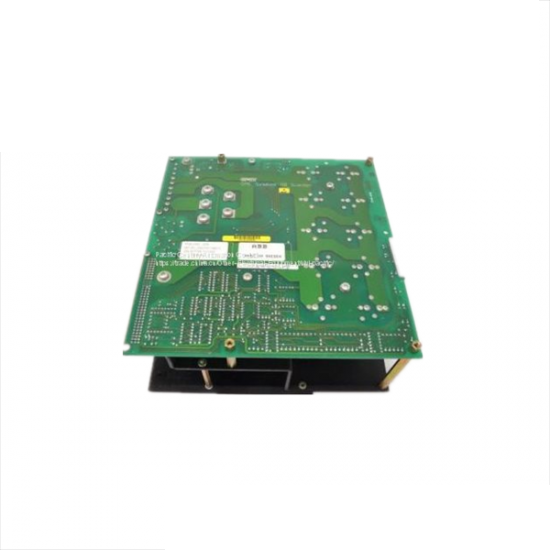

    The ABB DSQC249B Robot Rectifier Unit is a high-performance solution for controlling the current in industrial robot systems, offering unmatched precision and reliability.

    Featuring a wide input voltage range, this unit ensures compatibility across various power sources and can deliver up to 30 A of output current, making it suitable for demanding robotic applications.

    With an exceptional power factor of ≥ 0.95, the DSQC249B minimizes power loss and enhances energy efficiency, contributing significantly to the overall operational cost reduction of robotic systems.

    Engineered for robust performance, the unit operates within a temperature range of -20°C to +50°C, ensuring reliable operation in diverse industrial environments. Its IP20 protection class safeguards against dust and splashes of water, enhancing durability.

    Equipped with an RS-485 communication interface, the DSQC249B facilitates seamless integration with existing control systems, enabling easy setup and configuration. Its compact size and lightweight design make it ideal for space-constrained installations.

    This rectifier unit is the perfect choice for manufacturers seeking to optimize their robotic systems for enhanced productivity and efficiency without compromising on safety or performance.
