Place of Origin:Sweden

Order Number:DSQC236G YB560103-CD/22

Custom Processing:Yes

Item No.:DSQC236G YB560103-CD/22

Brand:ABB

Model:DSQC236G YB560103-CD/22

Operating Voltage:24V DC

Output Frequency:Up to 20 kHz

Certified Product:ISO 9001:2015

Series:DSQC 350 Series

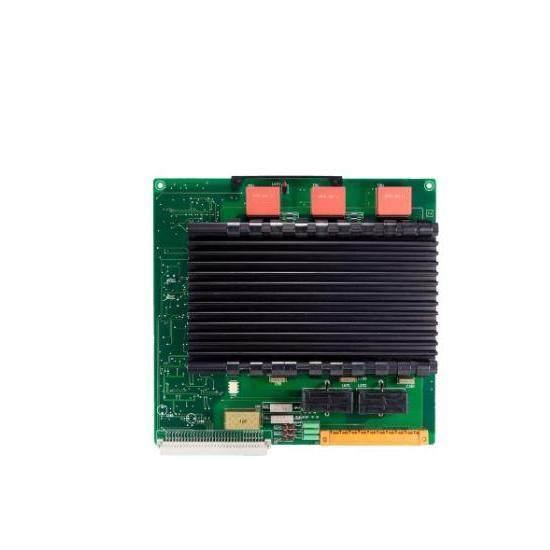

    The ABB DSQC236G YB560103-CD/22 robot axis drive board is meticulously designed for precision and reliability in industrial automation systems. This high-performance drive board supports up to four axes, making it versatile for a range of robotic applications. Its robust construction and advanced communication interfaces ensure seamless integration with other system components.

    Featuring a compact yet durable design, this board measures 130mm by 100mm by 20mm, weighing only 0.5kg, allowing for efficient use in space-constrained environments. With an operating voltage of DC 24V and a current rating of 1.5A, it ensures consistent performance across a wide range of operational scenarios.

    The high-resolution input of 1µm provides unparalleled accuracy in position control, critical for applications requiring fine adjustments. The board supports popular communication protocols like DeviceNet and CANopen, facilitating easy connectivity with a variety of control systems.

    For safety-critical operations, the DSQC236G YB560103-CD/22 includes Safe Torque Off (STO) and Safe Speed Monitoring (SSM) functionalities, ensuring the system can safely stop in case of emergency, enhancing the overall safety profile of the automation setup.

    Manufactured with high-quality materials, this drive board offers exceptional durability and longevity. It is compatible with leading industrial controllers, providing a seamless integration experience. Its user-friendly interface simplifies setup and configuration, making it accessible to both experienced engineers and newcomers in the field.
