Module Type:IGBT

Model Number:AGDR-71C

Operating Temperature Range:-40°C to +125°C

Maximum Continuous Current:100 A

Switching Frequency:up to 5 kHz

Insulation Resistance:> 10^10 Ω @ 500 VDC

Cooling Method:Thermal Pad and Forced Air Cooling

Electrical Rating:3kV CAT III

Dimension (W x H x L):114mm x 100mm x 36mm

Weight:0.3 kg

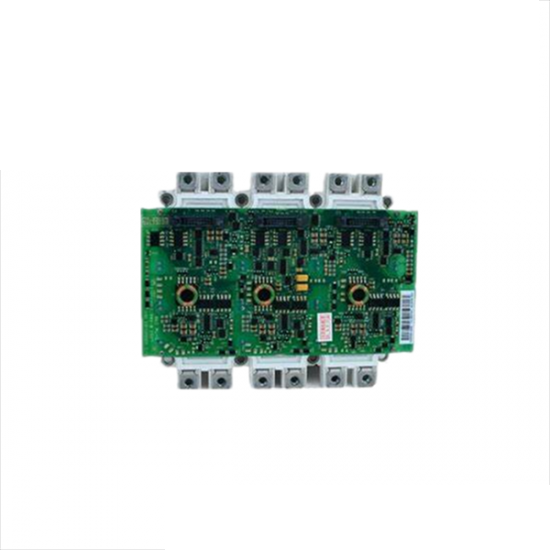

    The ABB AGDR-71C IGBT module is engineered for exceptional performance in industrial control environments. Its advanced power electronics design ensures optimal efficiency and reliability under a wide range of operational conditions.

    Featuring a compact yet robust package, this IGBT module is ideal for space-constrained applications where high current handling capacity and low switching losses are critical.

    With a temperature range of -40°C to +125°C, it is suitable for use in extreme environments without compromising on performance or durability.

    Equipped with high insulation resistance, the AGDR-71C provides unparalleled protection against electrical interference, ensuring stable operation even in noisy environments.

    Designed with state-of-the-art switching technology, it offers a high switching frequency of 25 kHz, enabling faster response times and improved system dynamics.
