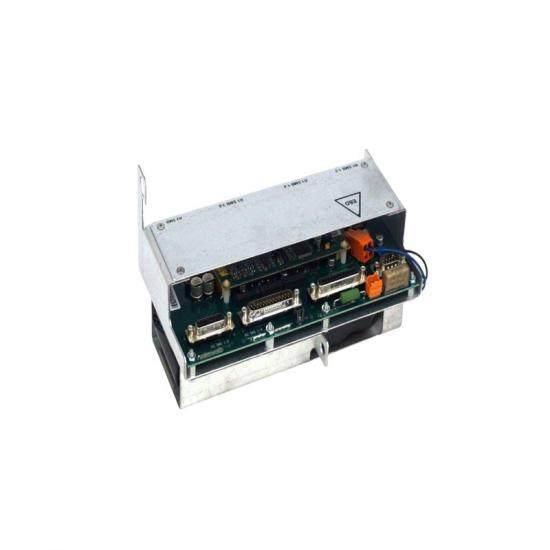

Model Number:3HAC14757-1

Type:Measurement Board

Producer:ABB

Module Class:Industrial Control Systems

Operating Voltage Range:8-40 VDC

Operating Temperature:-20°C to +70°C

Input Resistance:2 kΩ

Output Type:4-20 mA

Signal Processing Capacity:8 Analog Inputs, 2 Analog Outputs

Power Supply Compatibility:Widely Compatible with Various Power Supplies

Communication Interface:RS-485 Modbus-RTU

Dimensions (WxHxD):94mm x 84mm x 25mm

Weight:0.25 kg

Certifications:[“CE”,”UL”,”RoHS”]

    Integrating cutting-edge technology, the ABB 3HAC14757-1 Measurement Board offers unparalleled precision in measuring and controlling various parameters in industrial settings. It is meticulously engineered to meet the stringent demands of modern automation environments.

    Featuring an expanded operating voltage range from 8 to 40 VDC, this board ensures reliable performance across a wide variety of power sources, enhancing its adaptability in diverse industrial applications.

    With an impressive capacity for 8 analog inputs and 2 analog outputs, the Measurement Board provides comprehensive data acquisition and control capabilities, facilitating efficient monitoring and adjustment of operational parameters.

    Equipped with a robust RS-485 Modbus-RTU communication interface, the board seamlessly integrates with existing industrial networks, streamlining data exchange and control protocols.

    The compact design, combined with its lightweight structure, makes it easily portable and suitable for installation in confined spaces without compromising on performance. Its robust construction and temperature tolerance (-20°C to +70°C) ensure durability in harsh industrial conditions.

    Certified with CE, UL, and RoHS standards, the ABB 3HAC14757-1 Measurement Board adheres to global safety and environmental regulations, providing peace of mind for users seeking high-quality, reliable components.
