Brand:ABB

Model:3BHE036342R0101 XD D501 A101

Module Type:High Voltage Inverter Board

Power Handling Capacity:Up to 1000VDC

Operating Frequency:Up to 50Hz

Current Rating:Up to 500A

Input Voltage Range:800VDC to 1500VDC

Environmental Conditions:-40°C to +85°C

Certifications:ISO 9001, CE, UL

Dimensions:W150mm x H100mm x D30mm

Weight:1.5kg

Operating Environment:Indoor Industrial Applications

Maintenance Frequency:Annual Maintenance Required

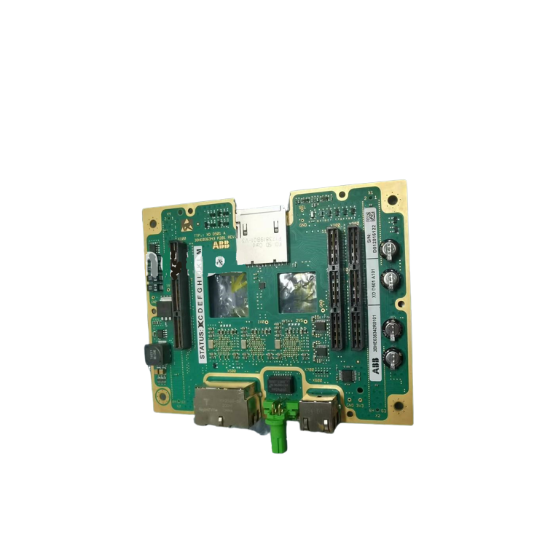

    The ABB 3BHE036342R0101 XD D501 A101 High-Voltage Inverter Board is engineered to deliver exceptional performance in high-voltage industrial settings, offering unparalleled efficiency in power conversion.

    Featuring advanced vector control technology, this inverter board ensures precise speed control, making it ideal for demanding applications such as electric drives and motors in heavy industries.

    With an operating voltage range of 690 VAC and a maximum output power of 1000 kW, it is capable of handling large-scale power requirements, enhancing productivity and energy savings.

    Equipped with robust protection features including IP54 classification, it ensures reliable operation in various environmental conditions, from industrial workshops to outdoor installations.

    The integrated Modbus TCP/IP and Ethernet IP interfaces provide seamless connectivity with existing systems, facilitating easy integration into complex automation networks.
