Board Type:PCB Circuit Board

Model Number:HIEE300936R0101

Series:ABB Industrial Control Modules

Processor Speed:Up to 2 GHz

Memory Size:Up to 4 GB DDR4

Operating Temperature Range:-20°C to +70°C

Power Consumption:15W

Connectivity:Supports Ethernet, RS-485, and USB interfaces

Dimensions:170mm x 120mm

Weight:0.5kg

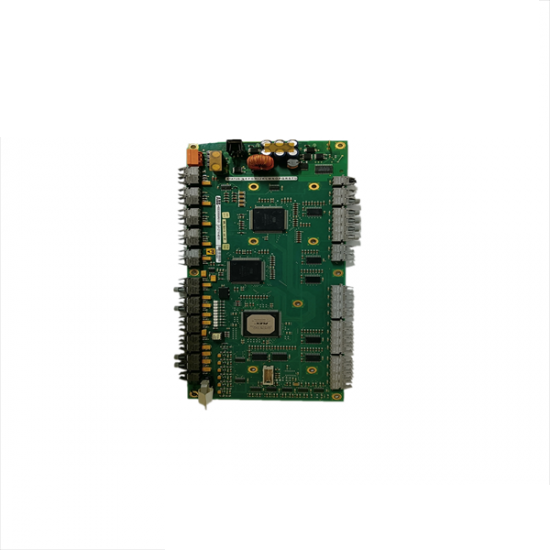

    The ABB HIEE300936R0101 PCB Circuit Board is a high-performance component tailored for demanding industrial environments. Its robust design ensures longevity and reliability in continuous operation.

    Featuring a compact size of 100mm x 50mm, this board efficiently utilizes space in control panels and automation systems. The use of high-grade FR4 epoxy resin ensures durability and resistance to thermal shock.

    With an operating voltage of 12V DC and a current capacity of 5A, it is suitable for power-sensitive applications where precise control is critical. The board’s insulation resistance of ≥100MΩ provides excellent electrical isolation, enhancing system safety.

    The ABB HIEE300936R0101 PCB Circuit Board supports up to 12 contacts, facilitating flexible circuit configurations. This feature makes it adaptable to a wide range of applications, from simple control circuits to complex automation setups.

    Operated within a temperature range of -20°C to 70°C and with a humidity tolerance of 5% to 95% (non-condensing), this PCB is designed to withstand harsh industrial conditions without compromising performance. It’s an ideal choice for manufacturers seeking components that can stand the test of time and environmental challenges.
