Model:ADV159-P01

Number of Input Channels:32

Rated Input Voltage:24 V DC (sink/source)

Input ON Voltage:18 to 26.4 V DC

Input OFF Voltage:5.0 V DC or less

Maximum Allowable Input Voltage:30.0 V DC

Withstanding Voltage Between:Between 300 V AC (1 min) and 1500 V AC (1 sec)

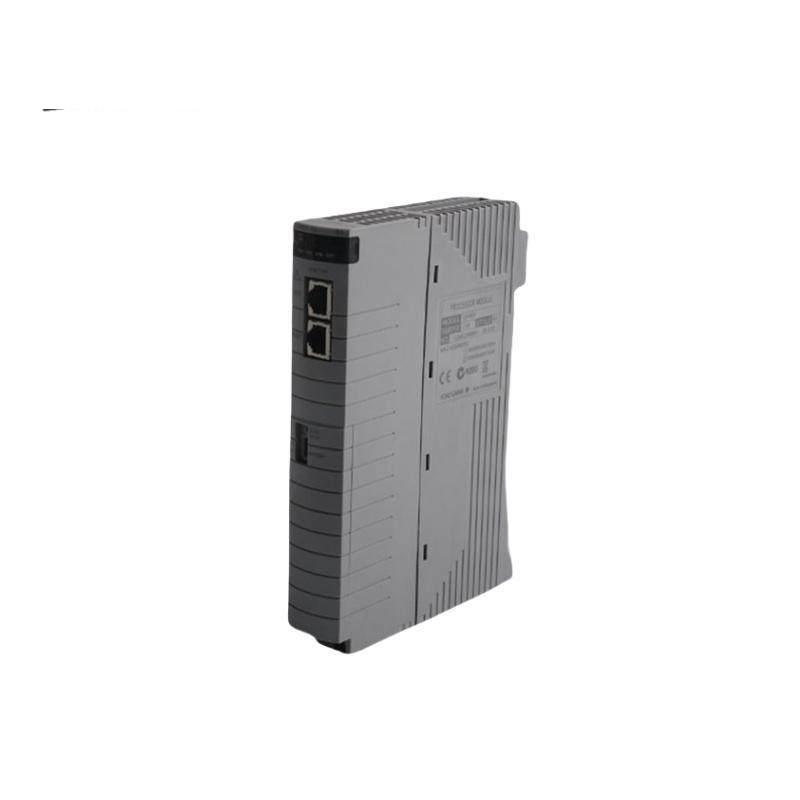

    YOKOGAWA ADV159-P01 Digital Input Module is meticulously designed to ensure reliable operation and high accuracy in monitoring and controlling industrial processes. This module is an integral part of the company’s commitment to providing cutting-edge technology solutions for industrial automation.

    Each channel is equipped with a robust design capable of handling harsh industrial environments, ensuring uninterrupted performance under varying conditions. The isolation feature minimizes interference between channels, enhancing system stability.

    With a minimum current value of 1.25 mA when the contact is short-circuited, this module ensures efficient signal processing without causing unnecessary strain on the system. The wide range of voltage inputs (OFF signal: 4.5 to 25 V DC, ON signal: ±1 V DC) makes it adaptable to various industrial standards.

    The YOKOGAWA ADV159-P01 Digital Input Module can be utilized in dual redundant configurations for added safety and reliability, making it a preferred choice for critical industrial control applications.

    Designed with ease-of-use in mind, the module offers simple integration with YOKOGAWA’s CENTUM VP Distributed Control Systems (DCS) and other compatible systems, facilitating seamless setup and maintenance. YOKOGAWA’s commitment to quality and customer support ensures that users receive comprehensive assistance throughout their project lifecycle.
