Model Type:TMR, AI

Number of Input Points:32, differential, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:<.15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23 dB

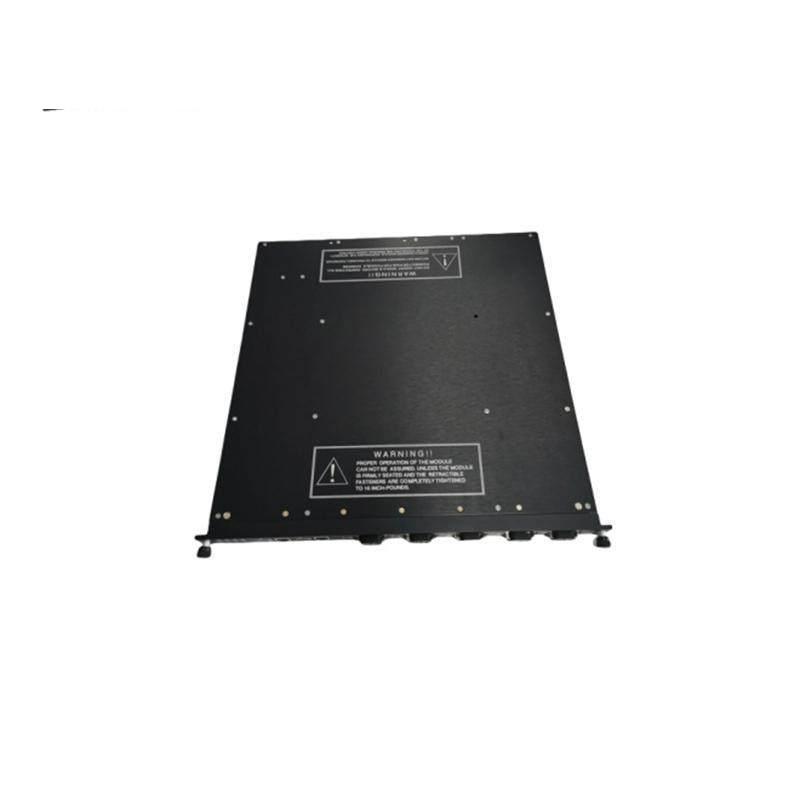

    Integrating advanced technology, the Invensys Triconex 3700A Analog Input Module ensures seamless integration into complex industrial systems, offering unparalleled accuracy and stability.

    Featuring a compact design and robust materials, this module is engineered to withstand harsh environments, ensuring long-lasting performance in challenging conditions.

    With its high-resolution 12-bit ADC, the Invensys Triconex 3700A can capture subtle changes in input signals, making it ideal for applications requiring precise measurements and control.

    Equipped with state-of-the-art isolation technology, the module guarantees reliable signal transmission without interference, even in noisy industrial environments.

    The Invensys Triconex 3700A is compatible with a wide range of industry-standard protocols, facilitating easy integration into existing automation systems, thereby enhancing operational efficiency and reducing downtime.
