Module Type:Optical Link Module

Version:V4.0

Connection:Profibus P22

Interface:1 RS485, 2 Glass FOC

Socket Count:4

Wavelength:1300nm

Signal Transmission Range:Up to 2200 meters

Weight:0.45 kg

Power Supply:DC 5-30V

Operating Temperature:-20°C to +70°C

Environmental Compliance:IP20

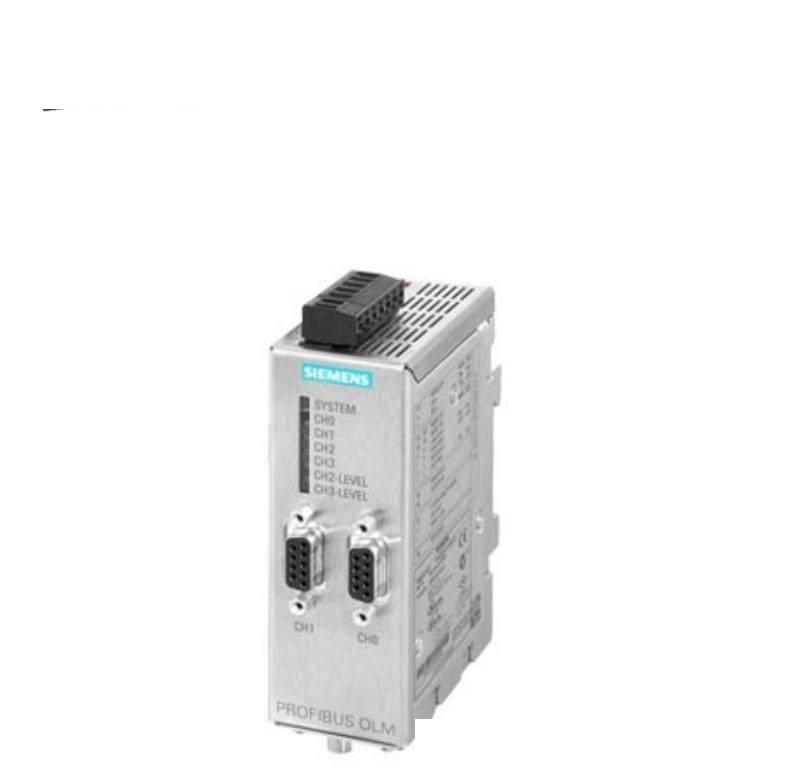

    The SIEMENS 6GK1503-4CA00 Optical Link Module boasts an advanced design that ensures robust performance and reliable data transfer in industrial environments. Its two glass-fiber optic connectors provide unparalleled signal integrity over extended distances, significantly reducing interference compared to traditional copper cables.

    With a maximum data transmission rate of 1 MBps, this module ensures efficient communication between control systems, enhancing operational speed and responsiveness. Its compatibility with PROFIBUS P22 V4.0 protocol guarantees seamless integration with a wide range of Siemens and third-party devices, supporting a diverse ecosystem of industrial automation.

    Engineered for durability and flexibility, the module operates within a wide temperature range (-25°C to +60°C during operation and -40°C to +85°C for storage), making it suitable for various industrial settings worldwide. The compact IP20 rated enclosure not only ensures protection against dust and light splashes but also allows for easy installation in confined spaces.

    To further enhance user convenience and system reliability, the module incorporates a test port for diagnostics and a signaling contact for status monitoring. These features facilitate quick troubleshooting and maintenance, reducing downtime and improving overall operational efficiency.

    In summary, the SIEMENS 6GK1503-4CA00 PROFIBUS OLM/P22 V4.0 Optical Link Module is an essential component for modern industrial control systems, offering superior performance, reliability, and ease of integration. Whether you’re upgrading existing infrastructure or building new systems, this module delivers exceptional value and performance, setting new standards for industrial automation.
