Model:ADV159-P00

Type:Digital Input Module

Input Channels:32

Rated Input Voltage:24 V DC (sink/source)

Input ON Voltage:18 to 26.4 V DC

Input OFF Voltage:5.0 V DC or less

Maximum Input Current:4.1 mA±20 % / channel

Maximum Allowable Input Voltage:30.0 V DC

Withstanding Voltage:Between…

Dimensions (WxHxD):120mm x 90mm x 40mm

Weight:0.40 kg

Operating Temperature Range:-10°C to +55°C

Environmental Rating:IP20 (Front Panel)

Communication Interface:ESB Bus

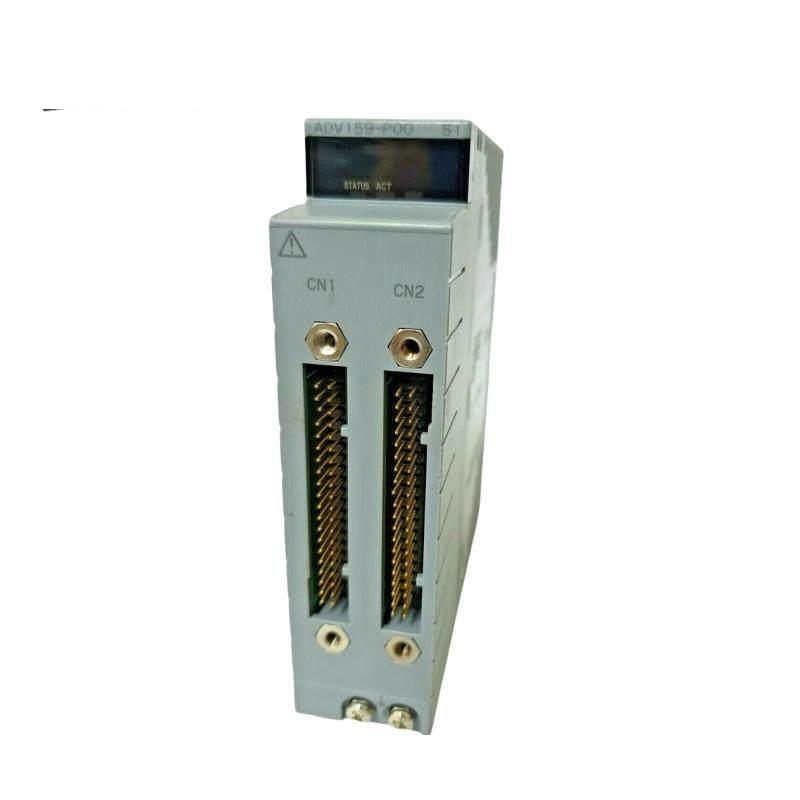

    The Yokogawa ADV159-P00 Digital Input Module is a high-performance solution for industrial automation environments. Its compact design ensures efficient use of space, making it suitable for both new installations and retrofits.

    Featuring 32-channel input capability, this module supports isolated channels for reliable signal processing. The advanced design allows for both contact and voltage status signals, ensuring compatibility with various field devices.

    Equipped with pushbutton input options (coded with ‘P’), the module offers user-friendly operation and quick status checks, enhancing operational efficiency. The basic type (‘0’) is tailored for straightforward applications without additional features.

    Yokogawa’s expertise in industrial automation is reflected in the ADV159-P00’s robust construction, which withstands harsh environments commonly found in manufacturing facilities. This ensures long-term reliability and minimal maintenance requirements.

    The module is compatible with dual redundant configurations, providing enhanced system availability and fault tolerance. This feature is particularly valuable in critical applications where downtime cannot be tolerated.
