Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type Reversing Contactor (Two interlocked contactors) Rated Operational Power 7.5 kW (10 HP) at 400V, AC-3 duty Rated Operational Current (Ie) 16 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 24 V DC Power Consumption Approx. 8 W (Holding) Typical value, confirm with datasheet Main Poles 2 x 3 Poles (Normally Open) Auxiliary Contacts Integrated interlocking contacts (typically 1 NO + 1 NC per side) for the control circuit. Interlocking Electrical and mechanical interlocking to prevent simultaneous closure of both contactors. Utilization Category AC-3: For squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.5 million operations (AC-3) Mechanical Life > 10 million operations Mounting DIN Rail (35 mm) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series NZM1 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating is set by installing the appropriate plug (e.g., NZM1/2-XV100 for 100A). The range is defined by the breaker's frame size. Poles 3 Poles (Standard for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) The exact value depends on the specific NZM1 frame size and voltage. (e.g., For an NZM1 frame size P, it could be 36kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP). Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Series NZM1 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating is set by installing the appropriate plug (e.g., NZM1/2-XV100 for 100A). The range is defined by the breaker's frame size. Poles 3 Poles (Standard for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) The exact value depends on the specific NZM1 frame size and voltage. (e.g., For an NZM1 frame size P, it could be 36kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP). Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Type Undervoltage Release (UVR) - Accessory Compatible Series NZM1 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 24 - 240 V AC/DC (Wide range, auto-sensing) Note: This is a common specification for the 'XKSA' model. Always verify the nameplate. Tripping Delay Typically 1 - 3 seconds (to avoid nuisance tripping on brief dips). Function Automatically trips the breaker when voltage drops below the threshold. Prevents the breaker from being closed if the control voltage is insufficient. Mounting Factory-installed or field-mounted on the side of compatible NZM1 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

Technical Data Parameter Specification Product Series NZM2 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating (e.g., 125A, 250A, 400A) is set by installing the appropriate plug (e.g., NZM1/2-XV200 for 200A). Poles 3 Poles (Typical configuration) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) High breaking capacity. The exact value depends on the specific frame size (e.g., N, H1, H2) and voltage rating. (e.g., can range from 50kA to 150kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP, Ethernet/IP) to be installed on the trip unit. Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Series NZM2 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating (e.g., 125A, 250A, 400A) is set by installing the appropriate plug (e.g., NZM1/2-XV160 for 160A). Poles 3 Poles (Typical configuration for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) High breaking capacity. The exact value depends on the specific frame size (e.g., N, H1, H2) and voltage rating. (e.g., can range from 50kA to 150kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP, Ethernet/IP) to be installed. Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Type Rating Plug (Accessory for MCCB) Compatible Series NZM1, NZM2 (with electronic trip units and X-series plug slot) Function Sets the Nominal Rated Current (In) of the circuit breaker Set Rated Current 6 A Product Designation XV6 (X-series, 6 Ampere) Mounting Plugs directly into the designated slot on the front of the compatible NZM1 or NZM2 circuit breaker.

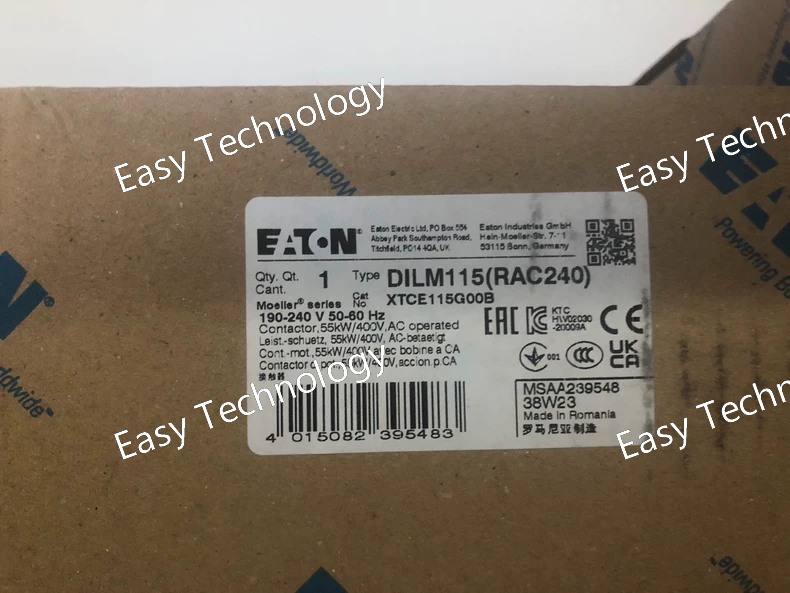

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type AC Power Contactor Rated Operational Current (Ie) 115 A at AC-3, 400V Max. Rated Thermal Current (Ith) 150 A Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 240 V AC (as specified by RAC240) Power Consumption Approx. 70 VA (Pick-up) / 9 VA (Holding) Typical values, confirm with datasheet Poles 3 Main Poles (Normally Open) Rated Power 55 kW (75 HP) at 400V, AC-3 duty 65 kW (90 HP) at 500V, AC-3 duty 75 kW (100 HP) at 690V, AC-3 duty Utilization Category AC-3: For squirrel-cage motors: Starting, switching off during running. AC-1: For non-inductive or slightly inductive loads, heating. Electrical Life > 1.3 million operations (AC-3) Mechanical Life > 10 million operations Terminal Connection Screw clamp for main and auxiliary circuits Auxiliary Contacts Can be equipped with add-on auxiliary contact blocks (e.g., DILE series), typically available in 1NO+1NC configurations. Mounting DIN Rail (35 mm) or Snap-on Mounting Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series NZM3 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) 380 - 440 V AC Rated Insulation Voltage (Ui) 690 V / 1000 V (Please confirm with datasheet) Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating (e.g., 125A, 250A, 400A) is set by installing the appropriate plug. Poles 3 Poles Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) High breaking capacity. The exact value depends on the specific frame size of the NZM3 breaker and the voltage. (Example: For an NZM3 frame size N, it could be 50kA at 415V AC. Must be verified with the technical datasheet.) Communication Capability Typically ready for communication modules (e.g., for Modbus, Profibus DP). Requires a separate communication adapter. Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Series NZM2 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. Common range from ~125A to 3200A for the NZM2 frame. (The exact range for this specific model must be confirmed with the rating plug used.) Poles 3 Poles Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) High breaking capacity, specific value depends on the voltage rating and frame size. *(e.g., values can range from 50kA to 150kA at 415V AC. Must check catalog for frame-specific data.)* Communication Capability Ready for communication modules (e.g., for Modbus, Profibus DP, Ethernet/IP). Requires a separate communication adapter. Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Terminal Connection Screw-type or busbar connection (depending on frame size and configuration)

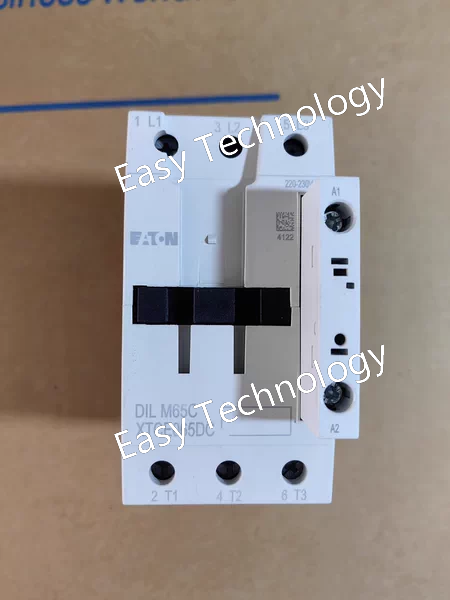

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type AC Power Contactor Rated Operational Current (Ie) 65 A at AC-3, 230V Rated Operational Voltage (Ue) 220-230 V AC, 50/60 Hz Poles 3 Main Poles (NO - Normally Open) Rated Power 15 kW (20 HP) at 230V, AC-3 duty Control Coil Voltage This is a separate designation (e.g., A230 for 230V AC). Must be specified when ordering. Common options: 24V AC/DC, 110V AC, 230V AC, 400V AC, etc. Utilization Category AC-3: Squirrel cage motors: Starting, switching off during running. AC-1: Non-inductive or slightly inductive loads. Electrical Life > 1.5 million operations (AC-3) Mechanical Life > 10 million operations Terminal Connection Screw clamp Auxiliary Contacts Typically available as add-on blocks (e.g., DILE/ DILA series). Can be fitted with normally open (NO) and/or normally closed (NC) contacts. Mounting DIN Rail (35 mm) or Snap-on Mounting Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series DIL M Product Type Miniature Circuit Breaker (MCB) Rated Operational Voltage (Ue) 24 V DC Rated Current (In) 1 A Poles 1 Pole (1P) Tripping Characteristic C (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) According to UL 1077: 5 kA @ 65V DC According to IEC/EN 60947-2: Please consult the official datasheet for specific values at 24V DC. Standards IEC/EN 60947-2, UL 1077 (Supplementary Protector) Electrical Durability ≥ 10,000 cycles Mechanical Durability ≥ 20,000 cycles Terminal Connection Screw clamp, suitable for cables up to 4 mm² (AWG 10) Torque 1.5 N·m (13.3 lb-in) Mounting DIN Rail (35 mm) Width 17.5 mm Ambient Temperature -25 °C to +60 °C (for calibration) -25 °C to +80 °C (operating) Storage Temperature -40 °C to +80 °C
