Parameter Specification Product Series Eaton PowerXL DG1 Model Number S801V65N3S Description Variable Frequency Drive, 65A, 37kW, 400V Rated Input Voltage 380 - 480V AC, 3-Phase, 50/60 Hz Rated Output Current 65 A Motor Power Rating 37 kW (50 HP) @ 400V Overload Capacity 150% of rated current for 60 seconds Control Methods V/F Control, Sensorless Vector Control Integrated Features DC Bus Choke (Standard), EMC Filter (Class C2 / Category C3), Graphic Keypad Digital Inputs 4 (programmable) Digital Outputs 2 (programmable, relay + transistor) Analog Inputs 2 (0/4-20mA or 0-10V, programmable) Analog Output 1 (0/4-20mA or 0-10V, programmable) Communication Protocols Modbus RTU (standard), Fieldbus options (e.g., Profibus DP, DeviceNet, EtherNet/IP) via plug-in modules Enclosure Rating IP20 / UL Type Open Standards & Certifications CE, cULus, RoHS

Parameter Specification Product Series Eaton DILM (Accessory for DILM Contactors) Model Number DM4-340-90K Description Auxiliary Contact Block, 4 Normally Open (4NO) Contact Configuration 4 Normally Open (4NO) Rated Operational Current 10A (for the auxiliary contacts) Rated Insulation Voltage 690V Mechanical Life High (typically millions of cycles, dependent on the main contactor) Electrical Life High (typically hundreds of thousands of cycles at rated load) Terminal Type Cage Clamp or Screw Terminal (specific to the -90K variant) Mounting Side-mounting onto compatible Eaton DILM contactors. Compatible Contactors Designed for use with specific frame sizes of DILM contactors (e.g., DILM32, DILM38, etc.). The "340" in the part number often correlates with compatibility for a specific contactor size, but must be verified with the manufacturer's datasheet. Material Thermoplastic Standards & Certifications CE, UL, CSA, CCC, etc., as part of the overall contactor assembly.

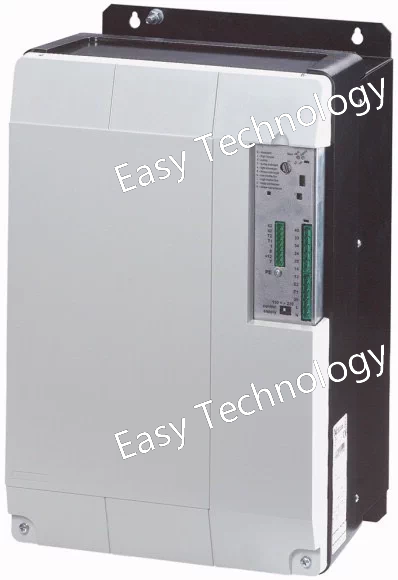

Parameter Specification Product Series Eaton DS7 / XStart Model Number DS7-340SX007N0-N Description Soft Starter, 34A, 15kW @ 400V Rated Supply Voltage 400V AC, 50/60 Hz Motor Power Rating 15 kW / 20 HP @ 400V Rated Current 34 A Current Range 5 - 34 A (Adjustable) Max. Current 150 A (for 1 second) Control Method Voltage Ramp, Current Limit Integrated Bypass Yes (Internal Bypass Contactor) Control Voltage 100-250V AC, 50/60 Hz (from factory, as denoted by 'SX') Control Connections Screw Terminals Start Time Adjustment 1 - 30 seconds (Adjustable) Torque Control Adjustable Initial Torque (Kickstart) and Torque Limit Protection Features Overload, Phase Loss, Phase Imbalance, Locked Rotor, Overheating, Jogging Protection Status Indication LED Indicators for Power, Run, Bypass, Fault Communication Optional communication modules (e.g., Profibus, DeviceNet) available Enclosure Rating IP00 (Open Type, must be installed in a control panel for protection) Standards & Certifications CE, UL, cUL, RoHS

Parameter Specification Product Series Eaton A22 Model Number A22-EC20 Description 22mm Illuminated Push Button Operator, Momentary, Flat, Yellow LED Operator Type Illuminated Push Button Button Color Black (Translucent, illuminated by LED) Lens Shape Flat LED Color Yellow (Amber) Contact Action Momentary (returns to normal position when released) Rated Voltage for LED Typically 24V DC (or as specified by the accompanying contact block/LED module). Note: The LED circuit is separate from the main contact block's power circuit. Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body)

Parameter Specification Product Series Eaton A22 Model Number A22-EC11 Description 22mm Illuminated Push Button Operator, Momentary, Flat, Red LED Operator Type Illuminated Push Button Button Color Black (Translucent, illuminated by LED) Lens Shape Flat LED Color Red Contact Action Momentary (returns to normal position when released) Rated Voltage for LED Typically 24V DC (or as specified by the accompanying contact block/LED module). Note: The LED circuit is separate from the main contact block's power circuit. Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body)

Parameter Specification Product Series Eaton A22 Model Number A22-EK10 Description 22mm Push Button Operator, Momentary, Flat, Red Operator Type Push Button Button Color Red Button Shape Flat Contact Action Momentary (returns to normal position when released) Rated Operational Current Note: This depends on the contact block used. The A22-EK10 is the operator. Common contact blocks are rated at: 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets.

Parameter Specification Product Series Eaton A22 Model Number A22-BE6 Description 22mm Selector Switch Operator, 2-Position Maintained, Metal Handle Operator Type Selector Switch (Rotor) Handle Type/Color Metal Handle, Black Number of Positions 2 Contact Action Maintained (Stays in selected position) Rated Operational Current Note: This depends on the contact block used. The A22-BE6 is the operator. Common contact blocks are rated at: 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic Body with Metal Handle Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets.

Parameter Specification Product Series Eaton A22 Model Number A22-EC02 Description 22mm Illuminated Push Button Operator, Momentary, Flat, Green LED Operator Type Illuminated Push Button Button Color Black (Translucent, illuminated by LED) Lens Shape Flat LED Color Green Contact Action Momentary (returns to normal position when released) Rated Voltage for LED Typically 24V DC (or as specified by the accompanying contact block/LED module). Note: The LED circuit is separate from the main contact block's power circuit. Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body)

Parameter Specification Product Series Eaton A22 Model Number A22-EFR Description 22mm Emergency Stop Push Button Operator, Mushroom Head, Red/Yellow Operator Type Emergency Stop (Mushroom Push Button) Head Color Red with Yellow Base Ring Head Type Mushroom (Large, prominent head for easy and rapid activation) Contact Action Maintained (Once pressed, it stays pressed until manually reset) Reset Mechanism Manual Rotational Reset (Turn the mushroom head to release it from the latched position) Rated Operational Current Note: This depends on the contact block used. The A22-EFR is the operator. Common safety contact blocks are rated at: 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Head and Body) Safety Standards Complies with international machinery safety standards such as IEC 60947-5-1 and IEC 60947-5-5. System Feature Modular design. The A22-EFR operator must be paired with a compatible A22 contact block (e.g., A22-T-, A22-TA-, A22-TB

Parameter Specification Product Series Eaton A22 Model Number A22-BE3C Description 22mm Selector Switch, 2-Position Maintained, 1NO+1NC Operator Type Selector Switch (Rotor) Knob Color Black Number of Positions 2 Contact Action Maintained (Stays in selected position) Contact Configuration 1 Normally Open (1NO) + 1 Normally Closed (1NC) (This is typically achieved with a common terminal (C), where C->NO closes in one position, and C->NC opens in the same position, and vice-versa in the other position.) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Knob and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design. The switch operator (A22-BE3C) can be mounted on various A22 contact blocks and combined with other accessories.

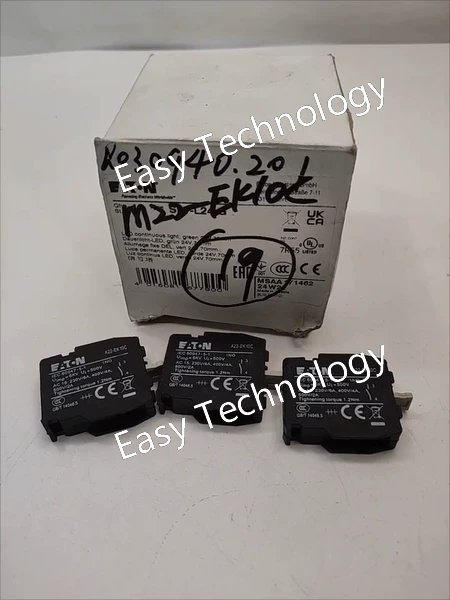

Parameter Specification Product Series Eaton A22 Model Number A22-EK10C Description 22mm Push Button Switch, Momentary, 1NO, Red Operator Type Push Button Button Color Red Button Shape Concave (Recessed) Contact Configuration 1 Normally Open (1NO / 1 Form A) Contact Action Momentary (returns to normal position when released) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design, compatible with the extensive A22 series of contact blocks, LED indicators, and enclosures.

Parameter Specification Product Series Eaton A22 Model Number A22-EK01C Description 22mm Push Button Switch, Momentary, 1NO Operator Type Push Button Button Color Black Button Shape Concave (Recessed) Contact Configuration 1 Normally Open (1NO / 1 Form A) Contact Action Momentary (returns to normal position when released) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design, compatible with the extensive A22 series of contact blocks, LED indicators, and enclosures.
