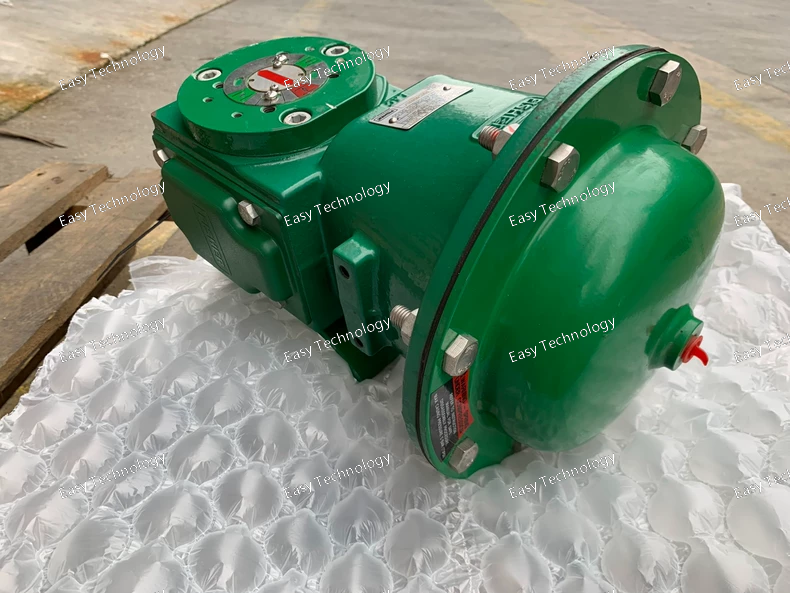

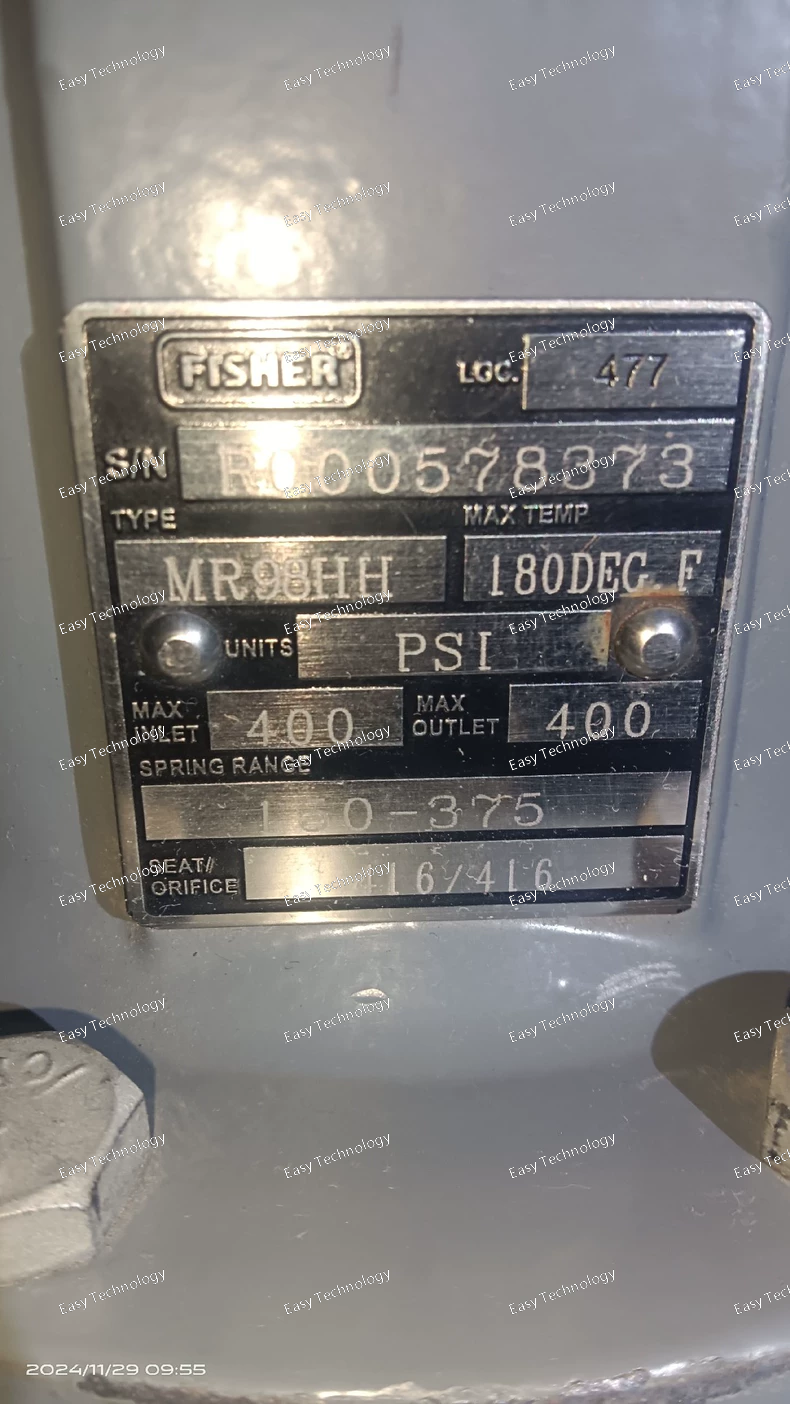

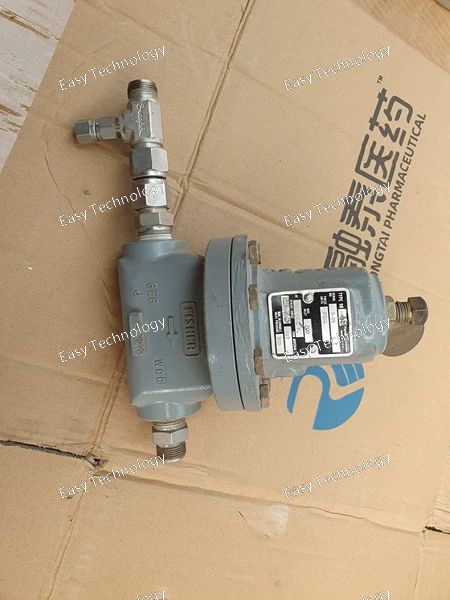

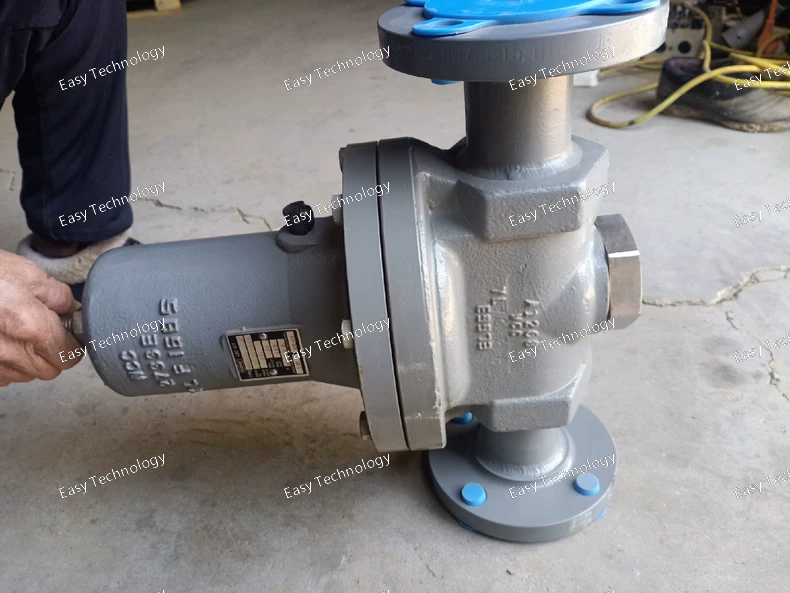

Technical Specifications Category Specification Model MR98HH Type Pilot-Operated, Spring-Loaded Monitor or Relief Pilot Function Overpressure Protection (Relief) / Backup Monitor Compatible Main Regulator Fisher 98HH Series Pressure Regulators Setpoint Range The setpoint is field-adjustable. The specific range is determined by the spring range installed inside the pilot. It is set above the primary regulator's control range. Maximum Inlet Pressure Suitable for the high-pressure ratings of the 98HH main regulators. Relief Capacity The flow capacity is sufficient to handle the overpressure scenario for the high-capacity 98HH regulator. Supply Self-powered by the process pressure. No external power required. Materials of Construction Body: Cast Steel or Ductile Iron (for high-pressure service). Internals: Stainless Steel. Port Connections Typically 1/4" NPT or 1/2" NPT for the sensing and control lines.

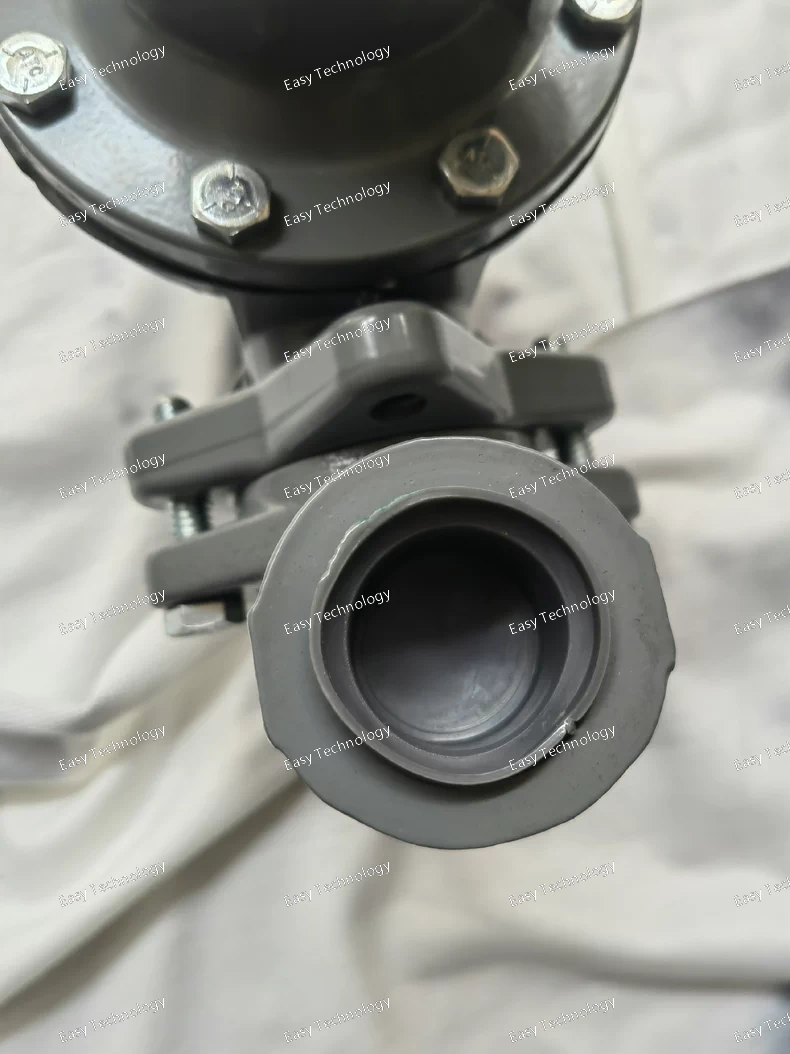

Technical Specifications Category Specification Model RB100 Type Self-Operated Backpressure Regulator Function To maintain a set upstream (inlet) pressure by relieving excess flow. Power Source Self-Operated (Uses energy from the process fluid) Body Style Globe Valve Body End Connections Flanged (ANSI Class 150 or 300 are common). Pressure Range Available in multiple, field-adjustable spring ranges for different setpoint requirements. Maximum Inlet Pressure Dependent on the body rating, but typically suitable for several hundred psig. Relief Capacity Determined by the orifice size, designed to handle the required relief flow. Temperature Range Standard with Buna-N diaphragm: -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Carbon Steel (WCB) or Cast Iron. Trim (Plug/Seat): Stainless Steel. Diaphragm: Buna-N (standard).

Technical Specifications Category Specification Model Type 98H49 Type Piston-Operated, Pilot-Based Pressure Reducing Regulator Service Natural Gas, Air, Inert Gases, Steam Pilot Type Internal, Self-Actuated (Type 49, defined by the suffix). Body Size & Orifice High Capacity ("H" designation). End Connections Flanged (ANSI Class 150, 300, or higher). Outlet Pressure Range Defined by the "49" pilot. This pilot is calibrated for a specific, field-adjustable range. The exact range must be confirmed from the factory data sheet. Maximum Inlet Pressure Suitable for very high pressures, often up to 400 psig or more, depending on the body class. Droop Performance Excellent (low droop) due to the pilot-operated design. Body Materials Carbon Steel (WCB) standard; other alloys available. Piston Ring Material Glass-Filled Teflon or similar for low friction and long life.

Technical Specifications Category Specification Model Type 95H-124/150RF Type Self-Operated Pressure Reducing Regulator Function To reduce a higher, variable inlet pressure to a stable, lower outlet pressure. Power Source Self-Operated Body Style Globe Valve Body End Connections Flanged, ANSI Class 150, Raised Face (RF) Orifice Size High Capacity ("H" designation) Outlet Pressure Range Defined by the "124" spring code. This is a factory-set, field-adjustable range. The exact range (e.g., 5-25 psig, 10-50 psig) must be confirmed from the Fisher 95 series specification sheet. Maximum Inlet Pressure Typically up to 400 psig (28 bar) for the standard body rating. Flow Coefficient (Cv) Higher than standard 95 models, specific value depends on the "H" orifice size. Temperature Range Standard with Buna-N diaphragm: -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Cast Iron (standard). Trim (Plug/Seat): Stainless Steel (standard). Diaphragm: Buna-N (standard)

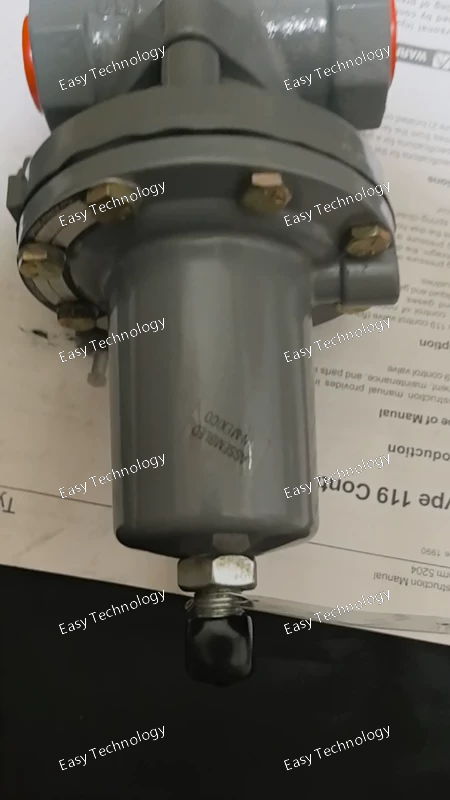

Technical Specifications Category Specification Fisher Part Number 627 119-5 Description Trim Part (e.g., Seat Ring) Applicable Valve Series Fisher ED, ES, ET (Eccentric Rotary) Component Type Replaceable Trim Part Primary Function Provides the sealing surface and defines flow geometry. Replaces worn parts to restore valve shut-off and performance. Materials of Construction Typically Stainless Steel (e.g., 316 SS) or Hardened Stainless Steel (e.g., 17-4PH) for erosion and cavitation resistance. The exact material is specific to this part number. Pressure Class Dependent on the parent valve body (e.g., ANSI Class 150, 300, 600). Leakage Class When installed with a matching plug, typically designed to achieve ANSI Class IV or better shut-off.

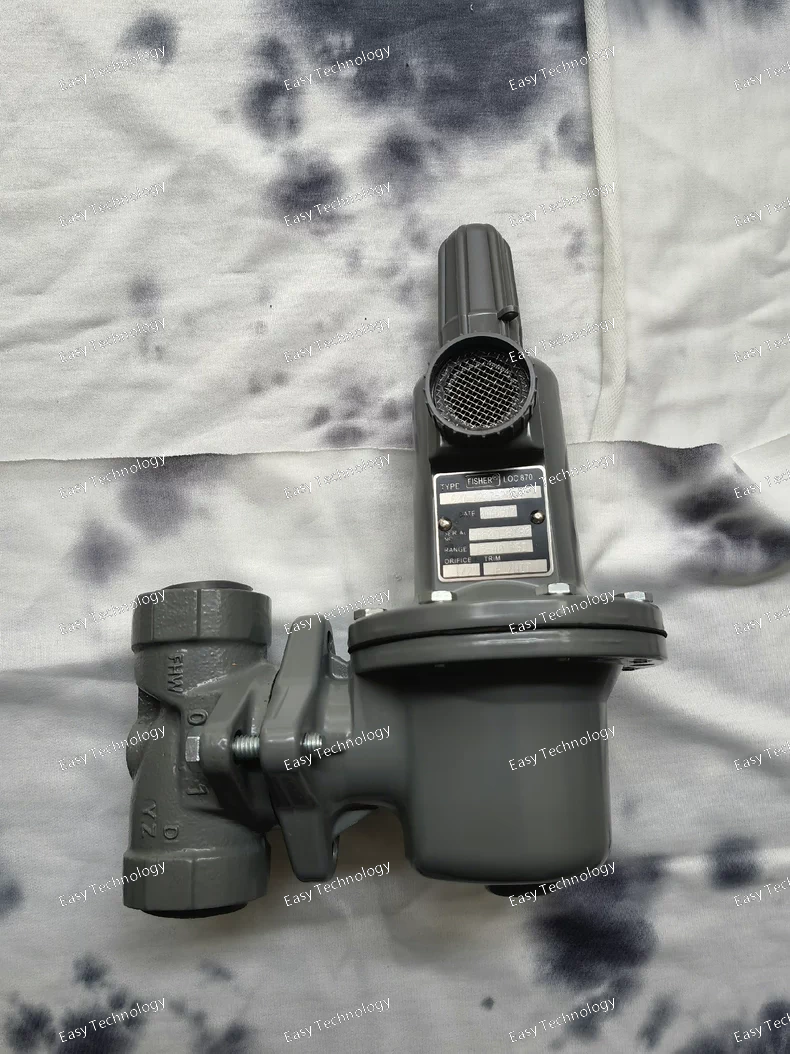

Technical Specifications Category Specification Fisher Part Number 627-1217-29858 Description Trim & Plug Kit Assembly Applicable Valve Series Fisher ED, EDT, ES, EST, ET Series Eccentric Rotary Valves Trim Type Eccentric Rotary Plug Trim Plug Type Standard Eccentric Plug Flow Characteristic Standard (Approximately Equal Percentage) Primary Material Plug: Hardened 17-4PH Stainless Steel Sleeve/Seat: Typically 17-4PH SS or 316 SS Hardness Plug is heat-treated (hardened) for enhanced wear and cavitation resistance. Leakage Class When assembled with a compatible seat, typically meets ANSI Class IV (0.01% of rated capacity) or better.

Technical Specifications Parameter Specification Part Number HSR-1628-87775 Description Handwheel Assembly Compatible Actuators Fisher 657/667 Series Pneumatic Actuators (verify specific model compatibility) Function Manual override for valve stem positioning Operation Manual rotation of handwheel to drive valve stem Mounting Bolted connection to actuator yoke Materials - Handwheel/Bracket: Coated carbon steel or aluminum - Lead Screw/Yoke Nut: Stainless steel - Hardware: Zinc-plated or stainless steel Environmental Rating Standard industrial grade (suitable for indoor/outdoor use)

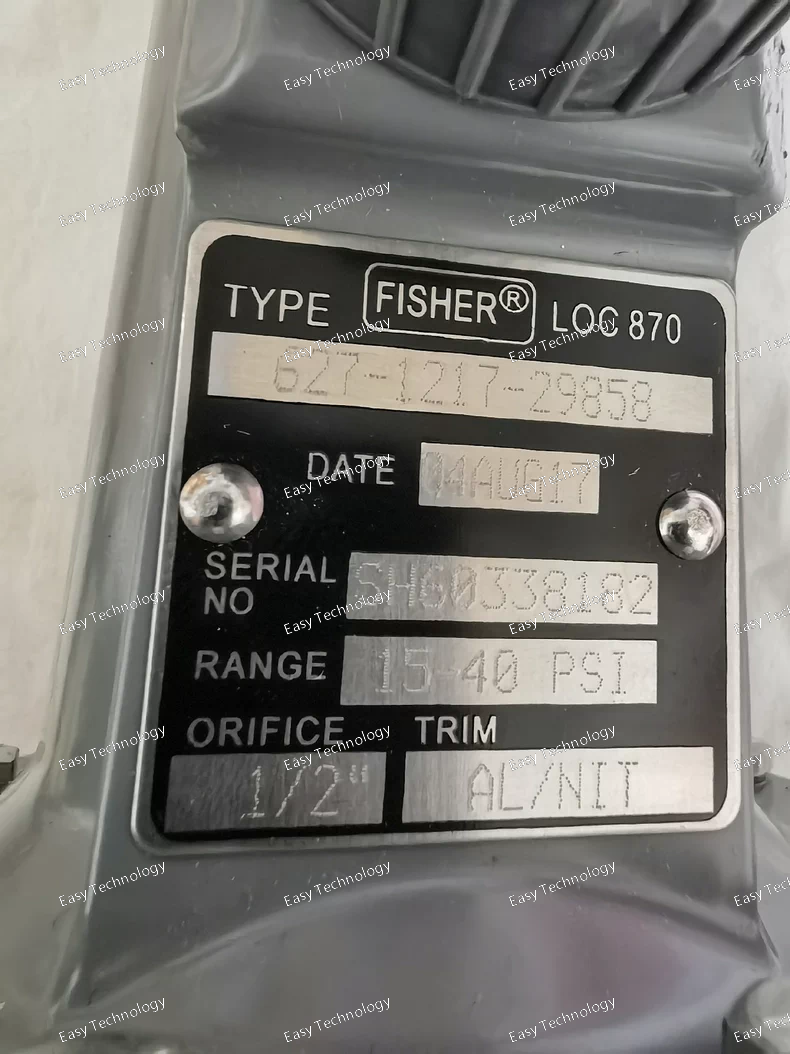

Technical Specifications Parameter Specification Model LOC 870 Type Limit Switch and Solenoid Valve Enclosure Enclosure Rating NEMA 4X / IP66 (Weatherproof, dust-tight, and corrosion-resistant) Material Fiberglass-Reinforced Polyester or Stainless Steel (depending on variant) Electrical Compatibility Compatible with Fisher limit switches (e.g., LSB/LSC series) and solenoid valves Mounting Designed for direct attachment to Fisher rotary or linear actuators Temperature Range -40°F to 180°F (-40°C to 82°C) (standard) Electrical Connections Conduit openings with sealing glands (e.g., 1/2" NPT) Internal Components - Terminal blocks for wiring - Mounting rails for switches/solenoids - Optional heater/thermostat

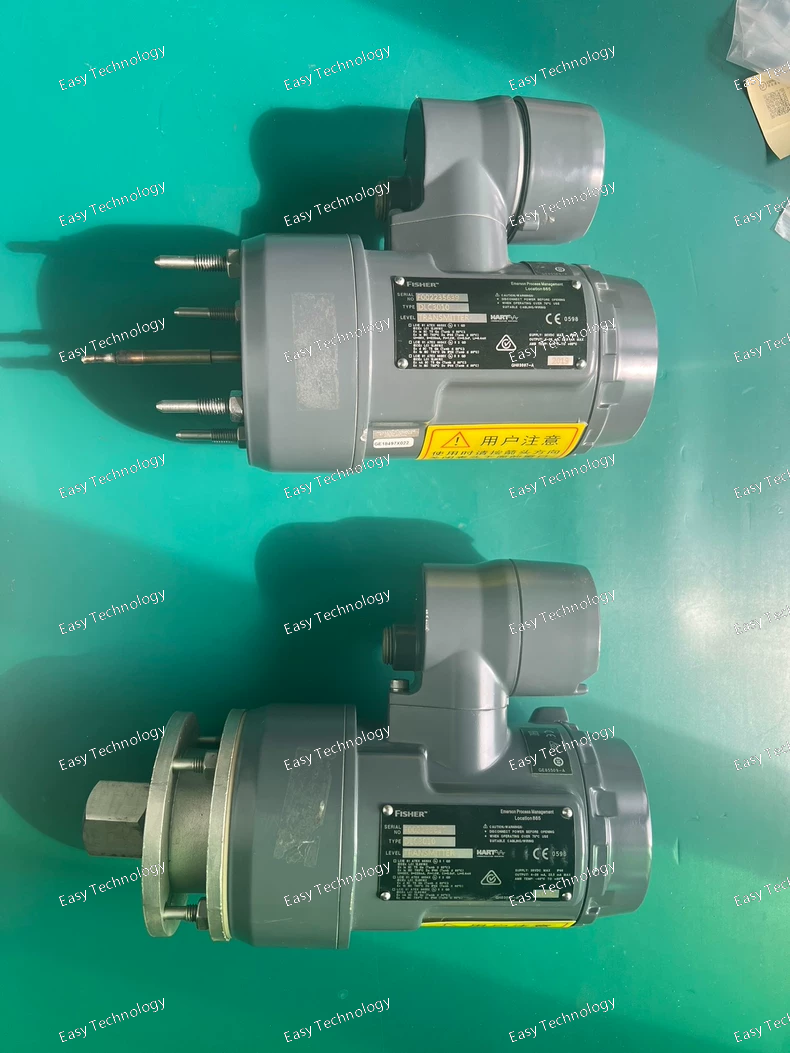

Technical Specifications Parameter Specification Model DLC3010 Type Digital Level Controller Input Signals • 4-20 mA analog input • HART protocol compatibility • Discrete inputs for status monitoring Output Signals • Dual 4-20 mA outputs • Relay outputs (configurable for alarm or control) • Digital communication (optional) Control Functions • Proportional (P) • Proportional-Integral (PI) • On-Off control • Pump control/lead-lag Display Backlit LCD for level reading, setpoints, and configuration parameters Power Supply 24 VDC or 100-240 VAC (depending on model variant) Enclosure Rating NEMA 4X / IP66 (for harsh environments) Communication • HART protocol • Optional Foundation Fieldbus or PROFIBUS PA Ambient Temperature -40°F to 185°F (-40°C to 85°C) Mounting Panel mount, DIN rail, or field mounting

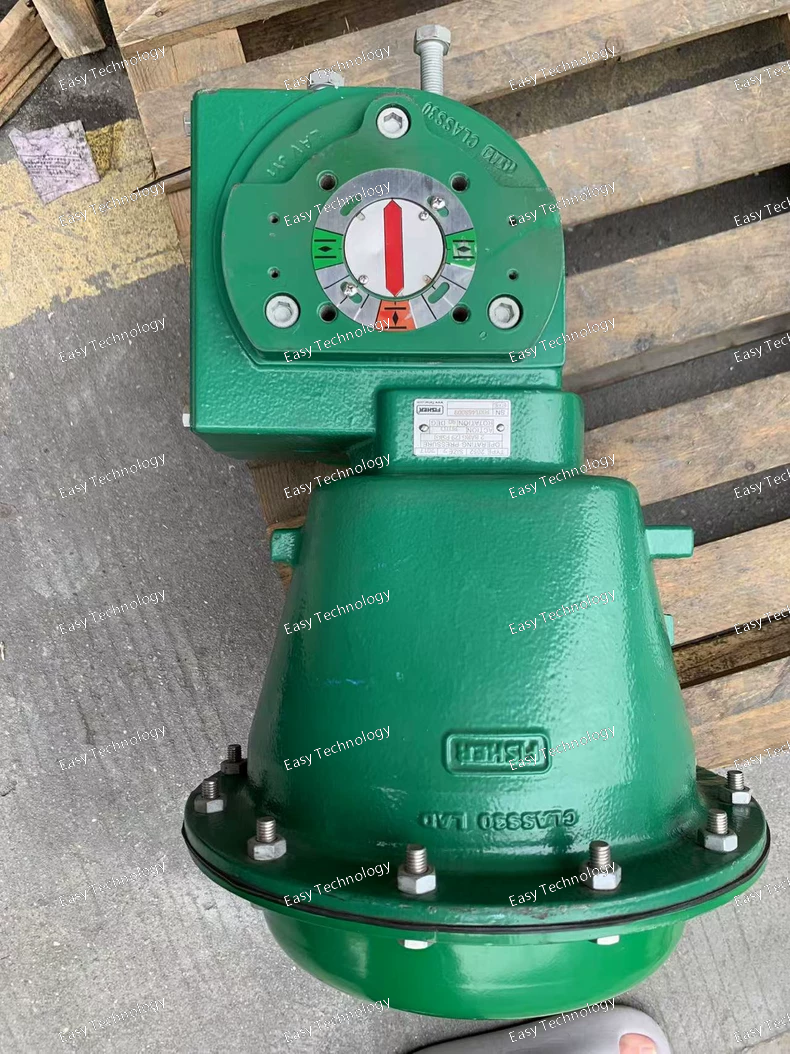

Technical Specifications Parameter Specification Model 2052/2 Type Pneumatic Pressure Transmitter Measurement Principle Force-Balance Mechanism Input Pressure Varies by specific configuration (e.g., 0-100 psi, other ranges available) Output Signal 3-15 psi standard pneumatic signal Supply Air Pressure 20-30 psi clean, dry instrument air Accuracy ±0.5% of span (typical for this series) Sensing Element Bourdon tube or diaphragm (depending on pressure range) Case Material Cast aluminum with corrosion-resistant coating Process Connection 1/2" NPT or other standard connections Ambient Temperature -20°F to 140°F (-29°C to 60°C) Enclosure Rating NEMA 4 (weatherproof)

Technical Specifications Parameter Specification Model 2052/1 Type Pneumatic Pressure Transmitter Measurement Principle Force-Balance Mechanism Input Pressure Range Specific range to be verified (e.g., 0-50 psi, 0-200 psi, etc.) Output Signal 3-15 psi standard pneumatic signal Supply Air Pressure 20-30 psi clean, dry instrument air Accuracy ±0.5% of span (typical) Sensing Element Bourdon tube or diaphragm (configuration dependent) Case Material Cast aluminum with corrosion-resistant coating Process Connection 1/2" NPT standard (other connections available) Ambient Temperature -20°F to 140°F (-29°C to 60°C) Enclosure Rating NEMA 4 (weatherproof)

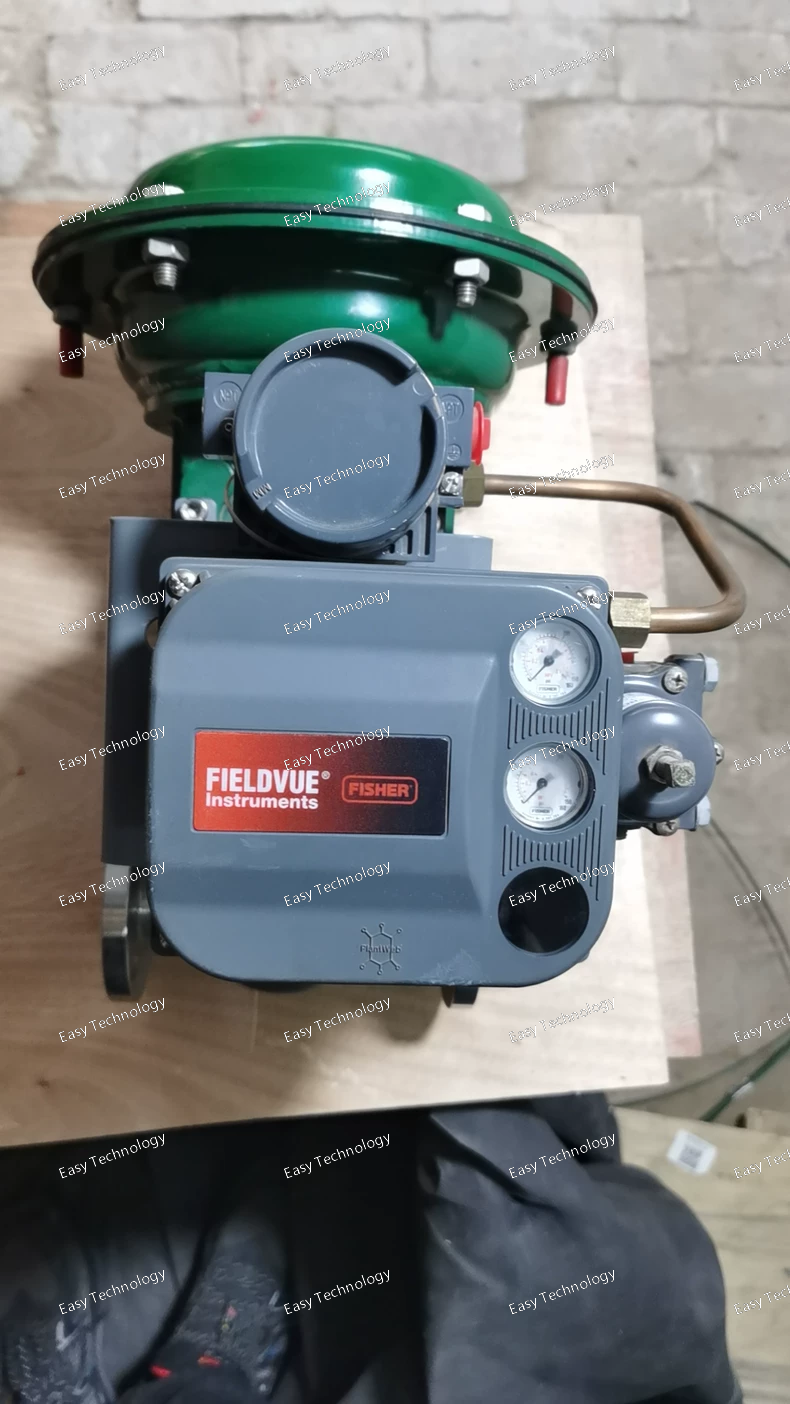

Technical Specifications Parameter Specification Model FV-CT04-PU-8D Type Digital Valve Controller Accessory Package Compatibility Fisher Fieldvue DVC6000/DVC2000 Series Digital Valve Controllers Communication Interface HART Protocol Max Device Connections 8 devices simultaneously Power Supply Built-in rechargeable battery or external power adapter Display Backlit LCD for configuration and diagnostics Enclosure Rating IP54 (Dust and water splash resistant) Operating Temperature 14°F to 122°F (-10°C to 50°C) Communication Ports HART communication terminals, USB (for data transfer)
