Technical Specifications Category Specification Model Y690AM Type Pneumatic Spring-Diaphragm Actuator (Specifically, a Piston-Type for Rotary Valves) Action Reverse Action (A) & Double-Acting (M) • Reverse Action: Stem retracts with increasing air signal. • Double-Acting: Requires air pressure to both open and close the valve. It has no spring and is not fail-safe. Standard Air Signal 3 to 15 psig (0.2 to 1.0 bar) Supply Air Pressure Maximum 100 psig (6.9 bar) supply pressure. The actual torque output is directly proportional to the supply pressure used. Travel Standard travel is 90 degrees of rotation, suitable for quarter-turn valves. Mounting Designed for direct mounting to Fisher V100, V150, V500, and other compatible rotary valve series via a standardized bracket. Typical Torque Output The Y690A size provides a specific torque range. For precise torque values at different air pressures, you must consult the official Fisher torque chart. (e.g., With 100 psig air supply, the torque output can be in the range of several hundred lb-in). Diaphragm / Piston Material Nitrile (Buna-N) is standard for elastomers. Housing Material Cast aluminum or ductile iron, with a corrosion-resistant coating. Temperature Limits Standard elastomers are suitable for temperatures between -20° to +180°F (-29° to +82°C).

Technical Specifications Category Specification Model Type 67DS Type Pneumatic Differential Pressure Switch Function To provide an electrical contact based on a pre-set pressure point. Sensing Element Diaphragm or Piston Switch Action Single Pole, Double Throw (SPDT) snap-action switch is common. Pressure Ranges Available in various adjustable ranges (e.g., 3-15 psig, 5-50 psig, etc.). Differential (Deadband) Adjustable. Electrical Rating Typical for industrial control circuits (e.g., 10A @ 125/250 VAC). Enclosure Rating Typically NEMA 4X (IP65) for weatherproof and corrosion-resistant protection. Process Connection Typically 1/4" NPT Materials of Construction Body: Die-cast Aluminum or Fiberglass. Wetted Parts: Brass, Stainless Steel. Ambient Temperature Limit Standard: -20°F to +150°F (-29°C to +66°C).

Technical Specifications Category Specification Model Type 95H-22 Type Self-Operated Pressure Reducing Regulator Function To reduce a higher, variable inlet pressure to a stable, lower outlet pressure. Power Source Self-Operated (Uses energy from the process fluid) Body Style Globe Valve Body End Connections Screwed (NPT) standard. Orifice Size Larger than standard 95 series, providing higher flow capacity (Cv). Outlet Pressure Range Defined by the "-22" configuration. This is a field-adjustable range, but the spring is selected for a specific span. A typical range for a "-22" code could be 10 to 60 psig or similar. The exact range must be confirmed from factory data sheets. Maximum Inlet Pressure Typically up to 400 psig (28 bar). Flow Coefficient (Cv) Higher than standard 95 models, specific value depends on orifice size. Temperature Range Standard with Buna-N diaphragm: -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Cast Iron (standard). Trim (Plug/Seat): Stainless Steel (standard). Diaphragm: Buna-N (standard).

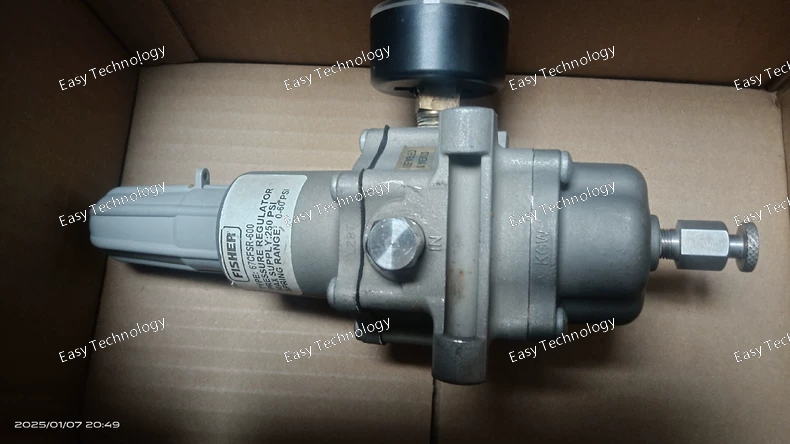

Technical Specifications Parameter Specification Part Number 67CFSR-600 Description Filter Regulator Mounting Kit Compatible Components Fisher 67CFR Series Actuator Pilots and related pneumatic systems Function Provides physical interface to mount a filter regulator to the target component. Kit Contents Mounting bracket, bolts, gaskets, fittings, and required hardware. Materials Plated carbon steel and stainless steel components for corrosion resistance.

Technical Specifications Category Specification Model Type 99H-901 Type Piston-Operated, Pilot-Based Pressure Reducing Regulator Service Natural Gas, Air, Inert Gases, Steam Pilot Type Internal, Self-Actuated (defined by the "-901" suffix). Body Size & Orifice High Capacity ("H" designation). Specific size (e.g., 2", 3") is defined by the full order code. End Connections Flanged (ANSI Class 150, 300, or higher). Outlet Pressure Range Defined by the "-901" pilot. This pilot is calibrated for a specific, field-adjustable range. Example ranges could be 5-25 psig or 20-60 psig. The exact range must be confirmed from the factory data sheet. Maximum Inlet Pressure Suitable for very high pressures, often up to 400 to 1440 psig, depending on the body class. Droop Performance Excellent (low droop) due to the pilot-operated design. Body Materials Carbon Steel (WCB) standard; other alloys available. Piston Ring Material Glass-Filled Teflon or similar for low friction and long life.

Technical Specifications Category Specification Model Type 1301F-N4 Type Self-Operated Pressure Reducing Regulator Function To reduce a higher, variable inlet pressure to a stable, lower outlet pressure. Power Source Self-Operated (Uses energy from the process fluid) Body Style Globe Valve Body End Connections Flanged (typical for "F" designation, e.g., ANSI Class 125 or 150). Outlet Pressure Range Defined by the "N4" configuration. This is a field-adjustable range. A typical range for an "N4" spring could be 4 to 7 psig or a similar low-pressure span. The exact range must be confirmed from factory data sheets. Maximum Inlet Pressure Typically up to 400 psig (28 bar) for standard bodies. Flow Coefficient (Cv) Determined by the orifice size. Temperature Range Standard with Buna-N diaphragm: -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Cast Iron (standard). Trim (Plug/Seat): Stainless Steel (standard). Diaphragm: Buna-N (standard).

Technical Specifications Parameter Specification Part Number 67CFSR-600 Description Filter Regulator Mounting Kit Compatible Components Fisher 67CFR Series Actuator Pilots and related pneumatic systems Function Provides physical interface to mount a filter regulator to the target component. Kit Contents Mounting bracket, bolts, gaskets, fittings, and required hardware. Materials Plated carbon steel and stainless steel components for corrosion resistance.

Technical Specifications Category Specification Model Type 1098H-EGR Type Piston-Operated, Pilot-Based Pressure Reducing Regulator Service Natural Gas, Air, Inert Gases, Steam Pilot Type Internal, Self-Actuated (Type EGR, defined by the suffix). Body Size & Orifice High Capacity ("H" designation). End Connections Flanged (ANSI Class 150, 300, or higher). Outlet Pressure Range Defined by the "EGR" pilot. This pilot is calibrated for a specific, field-adjustable range. Example ranges could be 10-60 psig or 20-100 psig. The exact range must be confirmed from the factory data sheet. Maximum Inlet Pressure Suitable for very high pressures, often up to 400 to 1440 psig, depending on the body class. Droop Performance Excellent (low droop) due to the pilot-operated design. Body Materials Carbon Steel (WCB) standard; other alloys available. Piston Ring Material Glass-Filled Teflon or similar for low friction and long life.

Technical Specifications Category Specification Model Type 99L Type Piston-Operated, Pilot-Based Pressure Reducing Regulator Service Natural Gas, Air, Inert Gases, Steam Actuation Piston Actuator Body Size & Orifice Standard/Large Capacity ("L" designation). End Connections Flanged (ANSI Class 150, 300, or higher). Outlet Pressure Range Field-adjustable, determined by the specific internal pilot installed (e.g., a common range for a 99L could be 5-50 psig or 20-100 psig). The exact range depends on the pilot. Maximum Inlet Pressure Suitable for very high pressures, often up to 400 psig or more, depending on the body class. Droop Performance Excellent (low droop) due to the pilot-operated design. Body Materials Carbon Steel (WCB) standard; other alloys available. Piston Ring Material Glass-Filled Teflon or similar for low friction.

Technical Specifications Category Specification Model MR95H Type Pilot-Operated, Spring-Loaded Monitor or Relief Pilot Function Overpressure Protection (Relief) / Backup Monitor Compatible Main Regulator Fisher 95H Series Pressure Regulators Setpoint Range The setpoint is field-adjustable. The specific range is determined by the spring range installed inside the pilot. It is set above the primary regulator's control range. Maximum Inlet Pressure Suitable for the pressure ratings of the 95H main regulators it services. Relief Capacity The flow capacity is sufficient to handle the overpressure scenario for the high-capacity 95H regulator it is protecting. Supply Self-powered by the process pressure. No external power required. Materials of Construction Body: Cast Iron or Aluminum. Internals: Stainless Steel, Brass. Port Connections Typically 1/4" NPT for the sensing and control lines.

Technical Specifications Category Specification Model Type 95L Type Self-Operated Pressure Reducing Regulator Function To reduce a higher, variable inlet pressure to a stable, lower outlet pressure. Power Source Self-Operated (Uses energy from the process fluid) Body Style Globe Valve Body End Connections Screwed (NPT) or Flanged options available. Orifice Size Standard or large orifice for moderate to high flow capacity (Cv). Outlet Pressure Range Available in multiple, field-adjustable spring ranges. Common examples include: • 5-25 psig (0.3-1.7 bar) • 10-50 psig (0.7-3.4 bar) • 20-100 psig (1.4-6.9 bar) The specific range is determined by the spring installed. Maximum Inlet Pressure Typically up to 400 psig (28 bar). Flow Coefficient (Cv) Varies with orifice size, providing good flow capacity for its size. Temperature Range Standard with Buna-N diaphragm: -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Cast Iron (standard). Trim (Plug/Seat): Stainless Steel (standard). Diaphragm: Buna-N (standard).

Technical Specifications Category Specification Model Type 63-EG Type Pneumatic Pressure Reducing Pilot Function To reduce a higher, variable inlet pressure to a stable, lower outlet control pressure. Input Signal Supply pressure from plant air or gas system. Output Signal A controlled, reduced outlet pressure. The range is defined by the "EG" spring code. Supply Pressure Typically requires a supply pressure higher than the desired output pressure. Outlet Pressure Range Defined by the "EG" configuration. This is a field-adjustable range. A typical range for an "EG" pilot could be 3-15 psig or a similar band. The exact range must be confirmed from factory data sheets. Accuracy & Sensitivity High, due to the precision force-balance mechanism. Port Connections Typically 1/4" NPT or 1/2" NPT. Materials of Construction Body: Aluminum or Cast Iron. Internals: Stainless Steel, Brass. Diaphragm: Buna-N (standard).
