Honey Well

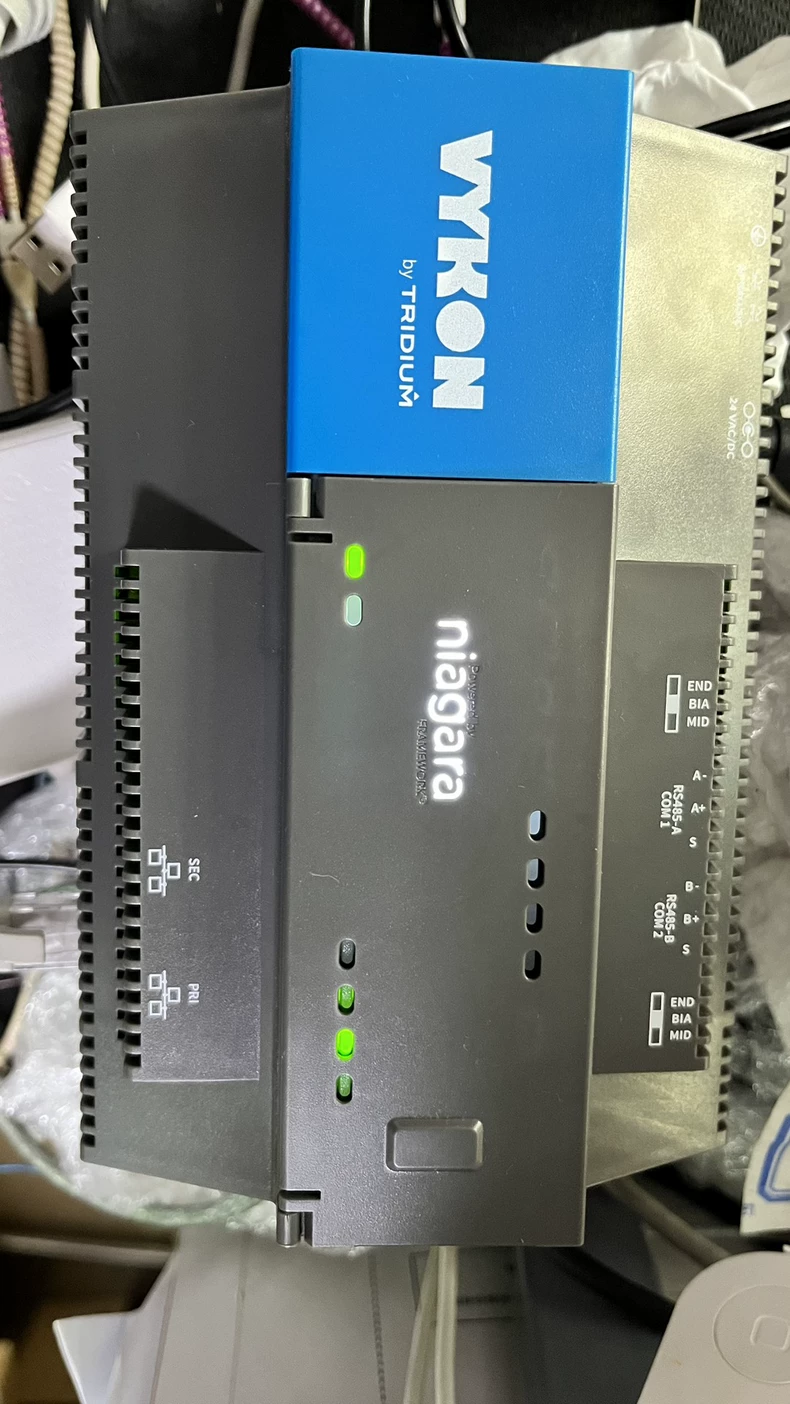

Honeywell JACE-91250 Technical Specifications General Information Manufacturer: Honeywell (Tridium Niagara Framework) Model: JACE-91250 Type: Advanced Building Automation Controller Primary Use: HVAC, lighting, security, and energy management integration Hardware Specifications Processor & Memory CPU: Quad-core ARM Cortex-A9 @ 1.0 GHz RAM: 2 GB DDR3 Flash Storage: 8 GB eMMC (expandable via microSD) Communication Ports Ethernet: 2× 10/100/1000 Mbps (RJ45) Serial Ports: 2× RS-485 (for BACnet MS/TP, Modbus RTU, etc.) USB: 2× USB 2.0 (for configuration/drivers) Wireless: Optional Wi-Fi/4G LTE module Expansion & I/O Slot for Expansion Modules: Supports Honeywell I/O modules (e.g., analog/digital) Max Supported Points: ~100,000 (software-dependent) Software & Protocols Operating System: Embedded Linux (Niagara 4 Framework) Supported Protocols: BACnet (IP & MS/TP) Modbus (TCP/RTU) LonWorks (optional) OPC UA/DA MQTT (for IoT/cloud connectivity) SNMP (network monitoring) Performance & Capacity Concurrent Users: Supports 50+ simultaneous connections Alarm Capacity: 50,000+ alarms Database Storage: 5+ years of trend data (configurable) Power & Environmental Power Supply: 24V AC/DC or PoE+ (Power over Ethernet) Power Consumption: 15W (typical) Operating Temperature: -40°C to +70°C (-40°F to +158°F) Humidity: 10–90% non-condensing Ingress Protection: IP30 (indoor use) Certifications & Compliance UL 916 (Energy Management) CE, FCC, RoHS BACnet BTL Listed Cybersecurity: TLS 1.2/1.3, role-based access Key Features ✔ High-performance edge controller for large-scale BMS ✔ Multi-protocol integration (legacy & modern systems) ✔ Cybersecurity hardened (SSL encryption, secure boot) ✔ Cloud-ready (Niagara Edge-to-Cloud) Typical Applications: Smart buildings Data centers Industrial automation

860

Honey Well

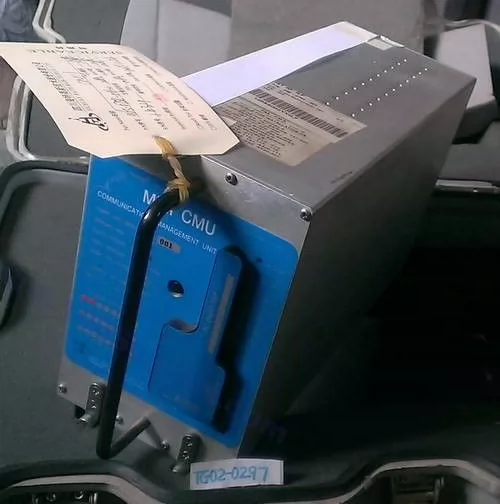

Honeywell 965-0758-001 (MKII CMU) Function: Communication gateway module for Experion® MKII I/O systems, bridging I/O racks to control networks. Key Role: Connects MKII I/O to Experion C300 controllers or external systems (e.g., DCS/SCADA). Supports redundant FTE (Fault Tolerant Ethernet) for high availability. Protocols: FTE, Modbus TCP, OPC. Environment: Operating Temp: -40°C to +70°C Certifications: ATEX/IECEx, FM, CSA (Class I Div 2). Compatibility: Requires Experion R511+ software.

630

Honey Well

Honeywell SPM Flex Core Function: Modular safety controller for high-integrity critical process safety (e.g., emergency shutdown, fire/gas systems). Key Features: Certifications: SIL 3 (IEC 61508), PLe (ISO 13849-1), ATEX/IECEx. Flexibility: Scalable I/O (digital/analog/HART) + redundant CPU options. Robustness: Operates in -40°C to +70°C with 95% humidity tolerance. Connectivity: Ethernet/IP, Modbus TCP, OPC UA.

194

Honey Well

XSL 513 (Alloy Structural Steel) Type: Chinese enterprise-standard alloy steel (equivalent to mid-grade Cr-Mo structural steel). Composition: Low-carbon steel with Chromium (Cr), Molybdenum (Mo), and trace alloys. Properties: High tensile strength (≥800 MPa), good toughness, and wear resistance. Hardness: 200–300 HB. Typical Use: Critical mechanical parts like gears, shafts, and high-strength fasteners.

805

Honey Well

Honeywell OM-1-E Technical Specifications General Information Manufacturer: Honeywell Model: OM-1-E Type: Optical Module (Fiber Optic Transmitter/Receiver) Primary Use: Industrial communication, signal transmission Optical Specifications Wavelength: 820nm (multimode) Fiber Type: 50/125μm or 62.5/125μm multimode fiber Transmission Distance: Up to 3 km (dependent on fiber quality) Data Rate: DC to 10 Mbps Optical Connector: ST or FC (optional) Electrical Specifications Input Voltage: 5V DC (±10%) Power Consumption: ≤100mA Output Signal: TTL compatible (0-5V) Operating Voltage Isolation: 2500V RMS (min) Environmental & Mechanical Operating Temperature: -40°C to +85°C Storage Temperature: -55°C to +100°C Humidity: 0-95% non-condensing Housing Material: Metal casing (EMI shielded) Dimensions: 25mm × 50mm × 12mm (W×H×D) Weight: 50g Certifications & Compliance EMC: EN 61000-6-2 / EN 61000-6-4 Safety: UL 508, CE, RoHS Key Features ✔ Industrial-grade reliability for harsh environments ✔ Plug-and-play installation ✔ LED status indicators (power & signal) ✔ Reverse polarity protection Typical Applications: Factory automation networks Remote I/O communication Noise-immune signal transmission

647

Honey Well

Honeywell VE4015A1146 T Type: Industrial Vibration Sensor (IEPE Accelerometer) Sensitivity: 11.46 mV/g (1146 Code) Range: ±50 g (Peak) Frequency Response: 0.5 Hz – 15 kHz (±10%) Output: Analog Voltage (Ratiometric, 1-5 VDC) Supply Voltage: 4-30 VDC Protection: IP67 Stainless Steel Housing Operating Temp: -40°C to +125°C (Temp-Compensated)

255

Honey Well

8C-PDODA1 Type: USB-C PD 3.1 Controller IC Protocol: USB PD 3.1 + PPS/EPR (140W) Voltage: 5-28V Programmable Current: Up to 5A Protections: OVP/OCP/TSD Package: QFN-24 (3×3mm)

68

Honey Well

V4055A1007 Type: Miniature Shielded Power Inductor (SMD) Inductance: 10μH ±20% Saturation Current: 0.7A (Isat @ 30% drop) DCR: <1.0Ω max Package: 4.0×4.0×2.0mm (L×W×H) Frequency: 1-3MHz (optimized) Temp Range: -40°C to +125°C

319

Honey Well

R7849A1023 Type: Automotive-Grade Shielded Power Inductor Inductance: 1mH (1000μH) ±20% Rated Current: 2.3A (Isat @ 30% drop) DCR: <150mΩ max Package: 7.8×4.9×3.8mm SMD Temp Range: -40°C to +125°C Compliance: AEC-Q200 (Automotive Certified)

446

Honey Well

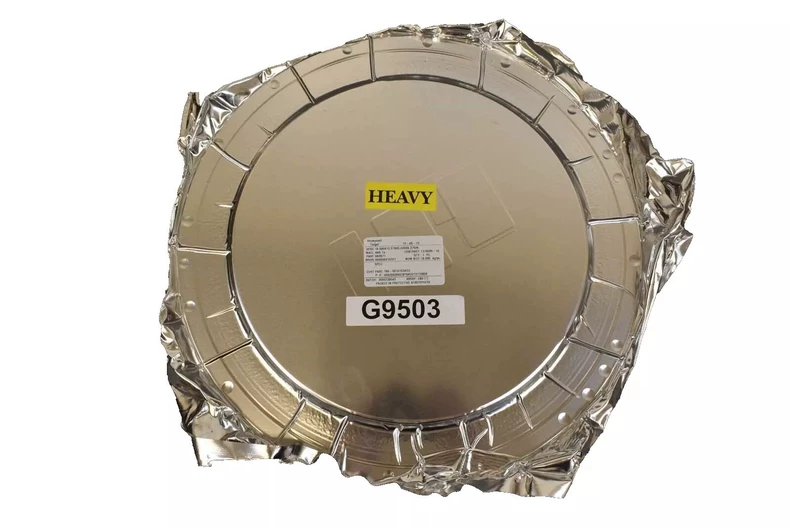

092977 AMAT Endura Target 200mm TNTLM 4N5 Type: Tantalum Nitride/Titanium Laminated Sputtering Target (PVD) Material: TNTLM (TaN/Ti laminate) Purity: 4N5 (99.995%) Diameter: 200 mm (8") Application: Advanced semiconductor metallization (AMAT Endura™ systems) Key Spec: Low-defect, high-uniformity films for logic/DRAM

911

Honey Well

C7061A1053 Type: SMD Ceramic Capacitor (MLCC) Capacitance: 1μF (105 = 10 × 10⁵ pF) Voltage: 25V DC Tolerance: ±10% Dielectric: X7R (Stable for General Use) Package: 0805 (2.0×1.25mm) Temp Range: -55°C to +125°C

818

Honey Well

EC7820A1026 Type: Shielded SMD Power Inductor Inductance: 10μH (102 Code) Rated Current: 2.6A (Isat) DCR: <100mΩ Package: 7.8×8.0mm Temp Range: -55°C to +125°C

561
