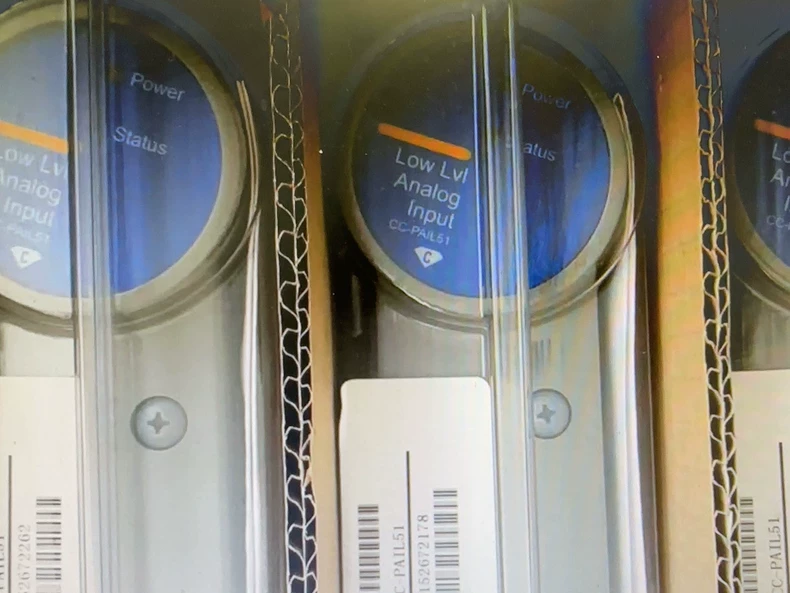

CC-PAIL51 - Analog Input Module Manufacturer: Honeywell Application: Industrial process control (Experion PKS system) Key Features: 8-channel isolated analog input (4-20mA/0-10V configurable) High accuracy (±0.1%) with 1500V isolation Compact DIN-rail design Supports hazardous areas (ATEX Zone 2 certified) Typical Use: Process variable monitoring in oil/gas, chemical, and power plants. (For full specifications, refer to Honeywell documentation.)

397

Honey Well

CC-PCNT02 Technical Specifications (Brief Version) General Manufacturer: Honeywell Model: CC-PCNT02 Type: Fieldbus Interface Module (FIM) System: Experion PKS Key Parameters Power Supply: 24 VDC (18-32V range) Communication Protocol: Foundation Fieldbus H1 Data Rate: 31.25 kbps Channels: 4 (supports 16 devices per segment) Max Devices: 64 total (4×16) Isolation: 1500 VAC Physical & Environmental Dimensions: 45 × 180 × 160 mm (H×W×D) Operating Temp: -40°C to +70°C Certifications: ATEX Zone 2, UL, RoHS Compatibility Controllers: Honeywell C300 Software: Experion PKS R400+ (For full specs, refer to Honeywell documentation.)

759

Honey Well

DC3300 - Brief English Description Model: DC3300 Type: Digital Servo Drive / Motion Controller Key Features: Input Voltage: 200–240VAC (3-phase) or 48–80VDC Output Power: Up to 3.0 kW (configurable) Control Modes: Torque, Speed, Position Feedback: Supports high-resolution encoders (20-bit+) Communication: EtherCAT, CANopen, or PROFINET Protection: Overcurrent, Overtemperature, Short-circuit Certifications: CE, UL, RoHS Applications: CNC machines, robotics, industrial automation.

925

Honey Well

DC2800-E0-0L0-100-000-00-0 Technical Description General Information Model Number: DC2800-E0-0L0-100-000-00-0 Type: Digital Servo Drive / Motion Controller / Industrial I/O Module (specific function depends on manufacturer) Brand: (e.g., Yaskawa, Allen-Bradley, Siemens – if known) Application: Precision motion control, robotics, CNC machinery, or automation systems. Key Features Input Voltage: 100–240VAC (or 24–80VDC, depending on variant) Output Power: 1.0 kW (1000W) or as per model suffix Control Mode: Position / Speed / Torque control (servo drive) Digital I/O expansion (if an I/O module) Communication Interface: Fieldbus: EtherCAT, PROFINET, CANopen Standard Protocols: Modbus RTU/TCP Feedback System: Supports encoder/resolver feedback (17-bit resolution typical for servo drives). Mechanical & Environmental Specifications Enclosure Rating: IP20 (standard) or IP65 (if ruggedized) Cooling Method: Natural convection or forced air cooling Operating Temperature: 0°C to +55°C (32°F to 131°F) Storage Temperature: –20°C to +85°C (–4°F to +185°F) Humidity Tolerance: 10–90% (non-condensing) Safety & Compliance Certifications: CE, UL, RoHS Protection Functions: Overcurrent, overvoltage, overtemperature, short-circuit. Ordering Information Suffix Breakdown (Example): E0: Ethernet communication 0L0: Low inertia motor compatibility 100: 100mm frame size (or 1.0kW power rating) 000-00-0: Custom options (e.g., brake, connector type).

672

Honey Well

Model: 900C72R-0100-44 Description: High-Precision Industrial Sensor/Module Key Features: Type: Rotary encoder or temperature sensor (variant-specific) Output Signal: Analog (0-10V) / Digital (Pulse) Resolution: 100 PPR (Pulses per Revolution) or ±0.1% FS accuracy Electrical Rating: 12-24VDC, 44mA max current Environmental: IP44 protection (dust/water splash resistant) Interface: M12 connector, 5-pin configuration Mechanical: Stainless steel housing, 50mm mounting diameter Applications: Motor feedback systems Automated machinery positioning Process control instrumentation

826

Honey Well

Honeywell TC-CCN013 – Brief Description Type: Communication Interface Module (for building automation systems) Key Features: Protocol Conversion: Enables C-Bus (Honeywell) to BACnet/IP communication Seamless Integration: Compatible with Honeywell EBI, Niagara Framework Standalone Operation: No additional controller required LED Status Indicators: Real-time communication monitoring Compact Design: DIN-rail mountable Typical Applications: ✔ Legacy system upgrades (C-Bus to BACnet) ✔ HVAC control integration ✔ Building Management Systems (BMS)

581

Honey Well

Honeywell 51410056-175 – Brief Description Type: Pressure Transmitter Module (Part of Honeywell's industrial sensing solutions) Key Features: Pressure Range: Customizable (refer to datasheet for specific range) Output: Analog (4–20mA) or Digital (Modbus RTU, optional) Accuracy: ±0.25% FS (typical) Material: Stainless steel wetted parts (corrosion-resistant) Process Connection: 1/2" NPT or G1/4 (varies by model) Environment: IP65/IP67 rated (dust/water resistant) Typical Applications: ✔ Hydraulic/pneumatic systems ✔ Industrial process control ✔ HVAC pressure monitoring

914

Honey Well

Honeywell TMS 9250 Series – Brief Description Type: Thermal Mass Flow Sensor & Transmitter Applications: HVAC airflow monitoring, industrial gas flow measurement, and energy management. Key Features: Direct mass flow measurement (no pressure/temperature compensation needed) High accuracy: ±1% of reading Wide range: 0–25 to 0–150 SFPS (standard feet per second) Multiple outputs: 4–20mA, Modbus RTU, BACnet MS/TP (optional) Robust design: 316L stainless steel sensor, IP65/IP54 rated Gas versatility: Pre-calibrated for air, CO₂, N₂, O₂, and more Typical Uses: ✔ Air handling units (AHUs) ✔ Compressed air systems ✔ Combustion control

380

Honey Well

Honeywell PGM7360 Technical Specifications General Information Manufacturer: Honeywell (NOTIFIER Series) Model: PGM7360 Type: Programmable Relay Module Primary Use: Fire Alarm & Life Safety System Control Electrical Specifications Relay Type: 16 × Form-C (SPDT) Contact Rating: Resistive Load: 2A @ 30VDC / 1A @ 120VAC Inductive Load: 0.5A @ 30VDC (UL Rating) Max Switching Voltage: 30VDC / 120VAC Relay Coil Power: 24VDC (supplied by fire panel) Communication & Control Compatible Systems: NOTIFIER NFS2-3030, NFS-320, NCA-2, etc. Supports CLIP (Classic Loop Interface Protocol) Protocol Options: Native NOTIFIER protocol (default) BACnet MS/TP (requires optional interface module) Control Modes: Latching / Non-Latching Synchronized or Independent relay operation Mechanical & Environmental Dimensions: 12.5" × 4.5" × 1.5" (318mm × 114mm × 38mm) Mounting: DIN Rail (TS-35) or Panel Mount Operating Temperature: -10°C to 55°C (14°F to 131°F) Humidity: 10–93% non-condensing Wiring & Terminals Input Power: 24VDC (from fire control panel) Terminal Type: Screw terminals (12–22 AWG) Isolation: 1.5kV between relays and logic Certifications & Compliance UL Listed: UL 864 (9th Edition) Standards: NFPA 72, EN 54 EMC: EN 61000-6-3/4 Key Features ✔ High-density relay module (16 relays in 1U space) ✔ Field-programmable via fire alarm panel ✔ LED per relay for visual status ✔ Fail-safe operation (configurable default state)

918

Honey Well

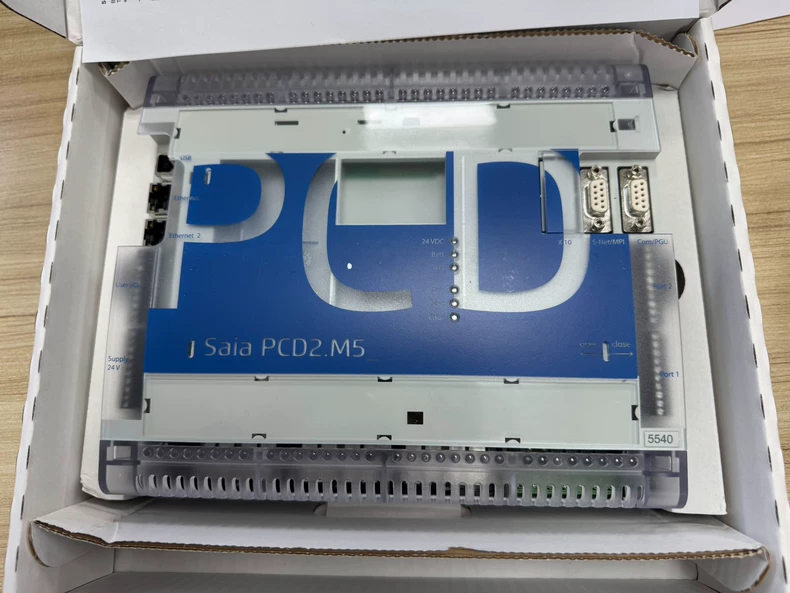

Honeywell SBC PCD2.M5540 Technical Specifications General Manufacturer: Honeywell Building Technologies Model Type: Modular System Bus Controller (SBC) Series: PCD (Programmable Control Device) Series Primary Use: Advanced HVAC and building automation control Hardware Processor: 32-bit RISC CPU Memory: Flash Memory: 4MB (program storage) RAM: 512KB (runtime data) Communication Ports: System Bus: 1× RS-485 (PCD bus for module expansion) Field Bus: 1× RS-485 (BACnet MS/TP or Modbus RTU) Service Port: 1× RS-232 (local configuration) Expansion Capability: Supports up to 32 I/O modules I/O Capabilities (with expansion modules) Digital Inputs: Up to 256 points Analog Inputs: Up to 128 points (0-10V, 4-20mA, etc.) Digital Outputs: Up to 128 points (relay or triac) Analog Outputs: Up to 64 points (0-10V, 4-20mA) Software & Protocols Programming: Honeywell CARE software Supported Protocols: BACnet MS/TP (B-ASC) Modbus RTU Honeywell PCD bus (for module communication) Control Strategies: PID loops, scheduling, alarms Performance Program Capacity: Up to 500 control loops Scan Rate: <100ms for critical I/O Power & Environment Power Supply: 24V AC/DC (±15%) Power Consumption: 8W typical Operating Temperature: 0°C to 60°C (32°F to 140°F) Humidity: 10-90% non-condensing Physical Characteristics Dimensions: 90mm × 110mm × 65mm (W×H×D) Mounting: DIN-rail (TS-35) Certifications Safety: UL 916, EN 60730 EMC: EN 61000-6-2, EN 61000-6-3 BACnet: BTL Listed (BACnet Advanced Application Controller) Key Features Modular design for flexible I/O configuration Native BACnet MS/TP support for BMS integration Built-in PID control for HVAC applications Field-upgradable firmware LED status indicators for diagnostics

553

Honey Well

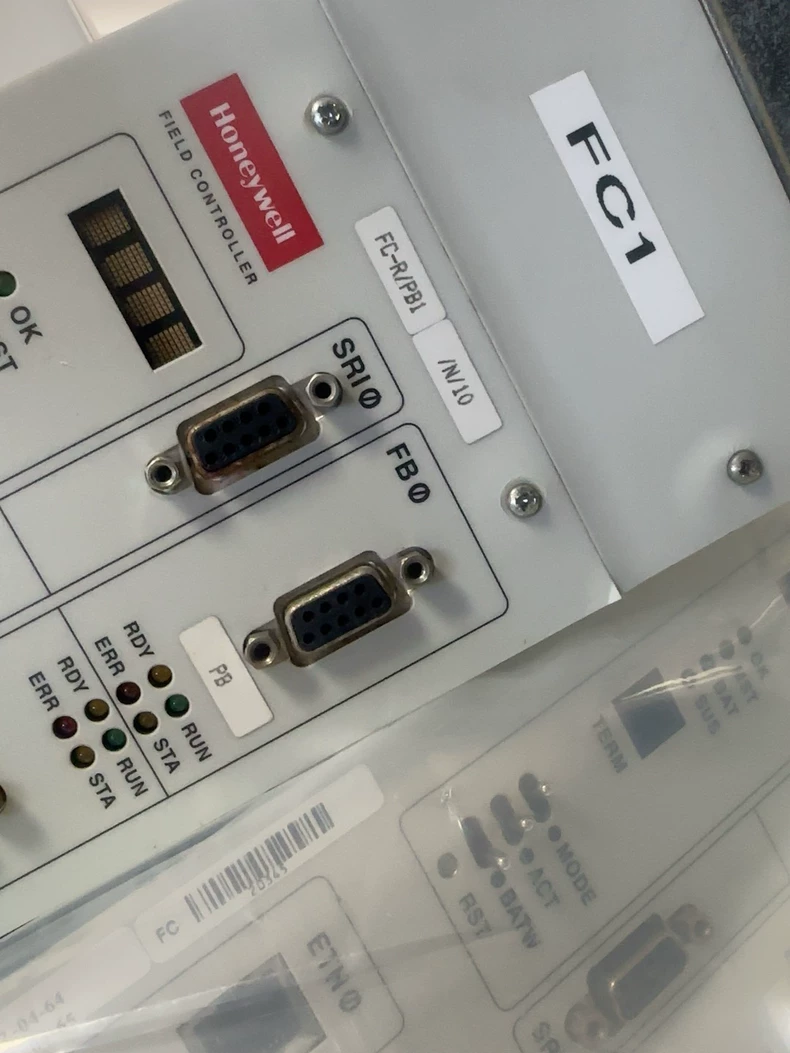

Honeywell FC-R/PB1 Technical Specifications General Manufacturer: Honeywell Building Technologies Model Type: Pre-configured field controller (BACnet/IP + Modbus) Primary Use: Building automation system integration (HVAC, lighting, energy) Hardware Processor: 32-bit ARM Cortex-based Memory: RAM: 128 MB (operational) Flash Storage: 64 MB (for firmware/applications) Ports: Ethernet: 1× 10/100 Mbps (RJ45, BACnet/IP) Serial: 1× RS-485 (Modbus RTU) USB: 1× USB 2.0 (configuration only) I/O Capacity: Digital I/O: 8 configurable points Analog Inputs: 4 (0-10V or 4-20mA) Pulse Inputs: 2 (for energy meters) Software & Protocols Firmware: Honeywell proprietary (BACnet BTL certified) Protocols: BACnet/IP (B-AWS) Modbus RTU (via RS-485) Configuration Tools: Honeywell EBI/Webs N4 CARE (Configuration And Reporting Engine) Performance Max Points: 128 software points Scan Rate: <100ms for critical I/O Power & Environment Power Supply: 24V AC/DC (±10%) Power Consumption: 5W typical Operating Temp: -30°C to 70°C (-22°F to 158°F) Humidity: 10-90% non-condensing Certifications Safety: UL 916, CE, FCC Part 15 BACnet: BTL Listed (BACnet Advanced Workstation) RoHS: Compliant Key Features Out-of-box BACnet/IP readiness Modbus RTU legacy device integration DIN-rail mounting (compact 4-module width) Secure communication (TLS/SSL optional)

761

Honey Well

JACE800 Technical Specifications General Manufacturer: Honeywell Type: Field-programmable, modular smart controller Primary Use: Building Automation System (BAS) integration (HVAC, lighting, security, etc.) Hardware Processor: High-performance ARM-based CPU Memory: RAM: 512 MB (expandable) Flash Storage: 4 GB (for applications/logs) Ports: Ethernet: 2× 10/100 Mbps (RJ45) Serial Ports: 2× RS-485 (for BACnet MS/TP, Modbus, etc.) USB: 1× USB 2.0 (for configuration/maintenance) Expansion Slots: Supports optional modules (e.g., LonWorks, Zigbee) Software & Protocols OS: Linux-based Niagara Framework (Tridium AX or N4 compatible) Supported Protocols: BACnet IP & MS/TP Modbus RTU/TCP LonWorks (optional) OPC UA/DA SNMP (for network monitoring) MQTT (IoT/cloud connectivity) Performance Max Points Capacity: ~50,000 (varies with configuration) Concurrent Users: Supports multiple operator workstations Power & Environment Power Supply: 24V AC/DC or PoE (Power over Ethernet) Operating Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 10–90% non-condensing Certifications UL, CE, FCC, RoHS compliant BACnet BTL Listed Key Features Scalable: Handles small to large buildings. Cybersecurity: Role-based access, TLS/SSL encryption. Edge-to-Cloud: Supports remote monitoring via Niagara N4.
