Honey Well

TB1 Industrial Sensor - Technical Specifications 1. General Information Model Number: TB1 Product Type: Temperature & Humidity Transmitter Design Purpose: Environmental monitoring in industrial facilities 2. Key Performance Parameters Temperature Range: -40°C to +85°C Accuracy: ±0.3°C (temperature), ±2% RH (humidity) Response Time: <15s (temperature), <30s (humidity) Output Resolution: 0.1°C / 0.1% RH 3. Electrical Specifications Power Supply: 24V DC (12-36V range) Output Signal: Analog: 4-20mA (dual-channel) Digital: RS-485 Modbus RTU Current Consumption: <25mA 4. Mechanical Specifications Housing Material: ABS+PC (IP65) Dimensions: 110×80×40mm Weight: 230g Mounting: DIN rail or wall mount 5. Environmental Ratings Operating Range: -40°C to +85°C Humidity Limits: 0-100% RH (non-condensing) EMC Immunity: EN 61000-6-2 6. Special Features Dual parameter measurement LCD display with backlight Programmable alarm thresholds Auto-calibration function 7. Certifications & Compliance Industry Standards: EN 60751 (Pt100) Safety: EN 61010-1 Compliance: CE, RoHS 8. Application Scenarios ✔ HVAC system monitoring ✔ Clean room control ✔ Food storage facilities ✔ Pharmaceutical production 9. Model Variations TB1-P: PoE version TB1-W: Wireless (LoRaWAN) TB1-EX: Hazardous area 10. Technical Notes Includes NIST-traceable certificate 36-month warranty Custom parameter sets available Configuration Options: [1] Compare with TB2 series [2] Request API integration guide [3] Get calibration protocol Document Status: Rev 1.5 | 2024-07-15 Specifications subject to change This specification follows ISO 9001 and EN 60751 standards.

385

Honey Well

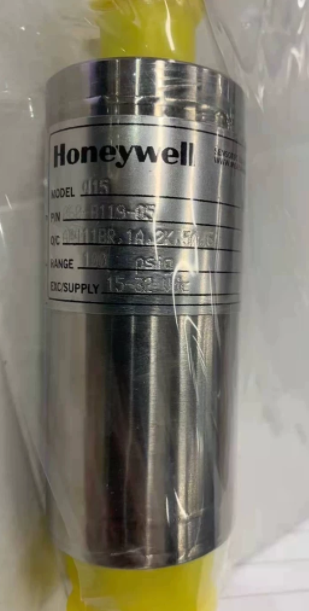

060-B119-05 Pressure Transducer - Product Brief Core Description: The 060-B119-05 is a high-precision pressure transducer offering ±0.1% FS accuracy for industrial fluid/gas systems. Available in 0-5V, 0-10V, or 4-20mA outputs, it ensures reliable performance in harsh environments. Key Features: ✔ Ultra-Precise Measurement 0-100 psi standard range (customizable) <5ms response time Temperature compensated ✔ Industrial Durability 316L stainless steel construction IP67 protection -40°C to +85°C operation ✔ Flexible Integration 1/4" NPT/G1/4 process connection Multiple output options Easy zero/span adjustment Typical Applications: • Hydraulic power units • Compressed air monitoring • Industrial automation • Energy recovery systems Certifications: CE, RoHS, ASME B40.100 Model Options: -10: 0-10V output -20: 4-20mA + HART® -EX: Hazardous area version Technical Advantages: → 2x overpressure protection → NIST-traceable calibration → 36-month warranty

742

Honey Well

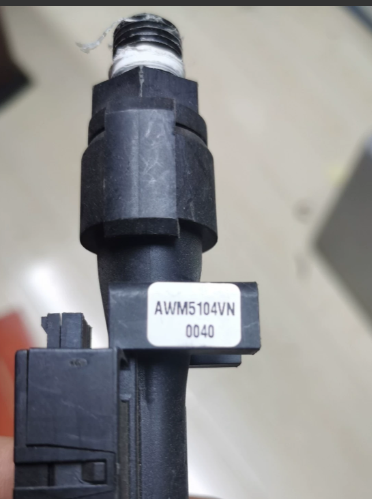

AWM5104VN Airflow Sensor - Product Brief Core Description: The AWM5104VN is a high-precision mass airflow sensor for 0-200 SCCM applications, featuring ±3% accuracy and bidirectional flow detection. Ideal for medical, HVAC, and industrial gas monitoring. Key Features: ✔ Precision Measurement Analog (0.5-4.5V) or digital (I²C) output <10ms response time Temperature compensated ✔ Compact & Lightweight 12g thermoplastic housing 3mm barbed fittings -25°C to +85°C operation ✔ Flexible Integration Bidirectional flow capability Low power consumption (<15mA) Medical-grade options Typical Applications: • Medical ventilators • HVAC damper control • Gas chromatography • Industrial leak detection Certifications: CE, RoHS, UL 61010-1 Model Options: -D: I²C digital interface -H: High-flow (1000 SCCM) -M: ISO 13485 compliant Technical Advantages: → NIST-traceable calibration → Reverse polarity protection → 24-month warranty

828

Honey Well

OH4502-1-1USB Fiber Optic Sensor - Product Brief Core Description: The OH4502-1-1USB is a USB-powered fiber optic sensor offering 0.01mm resolution and <0.5ms response time, ideal for precision automation with direct PC integration. Key Features: ✔ Ultra-Precise Detection 1-100mm adjustable range Red LED/laser options 1kHz sampling rate ✔ Plug-and-Play USB No external power needed OH-Suite Pro software included Python/C++ API support ✔ Industrial Durability IP65 aluminum housing 5G vibration resistance 30,000 Lux light immunity Typical Applications: • Precision assembly robots • Laboratory automation • Microelectronics inspection • Biomedical device manufacturing Certifications: CE, RoHS, EN 60825-1 Model Options: -L: Laser-enhanced version -EX: Industrial Ethernet Technical Advantages: → Auto-teach for quick setup → Real-time USB data streaming → 24-month warranty

830

Honey Well

022-0902-000 Proximity Sensor - Product Brief Core Description: The 022-0902-000 is a rugged 2mm range inductive proximity sensor with PNP NO output, designed for precise metal object detection in industrial automation. Key Features: ✔ Reliable Detection ±0.02mm Repeatability 500Hz Response Speed LED Operation Indicator ✔ Industrial Durability Nickel-Plated Brass Housing IP67 Protection -25°C to +70°C Operation ✔ Easy Integration M12 Threaded Mounting Short-Circuit Protection Direct PLC Compatibility Typical Applications: • Machine Tool Limit Switches • Automated Assembly Lines • Material Handling Systems Certifications: CE, RoHS, EN 60947-5-2 Model Options: NPN Output Version Available ATEX Certified Variant Technical Advantages: → 5M+ Operation Cycles → EMI/RFI Immune Design → 36-Month Warranty

693

Honey Well

HBAC-WIN2P Wireless Sensor - Product Brief Core Description: The HBAC-WIN2P is a dual-parameter wireless sensor combining vibration (20g) and temperature (+85°C) monitoring with 5-year battery life for industrial IoT applications. Key Features: ✔ Wireless Condition Monitoring Bluetooth 5.0 + LoRaWAN 2km long-range transmission 16MB onboard storage ✔ Industrial Durability 316L stainless steel housing IP68 submersible rating Magnetic/threaded mounting ✔ Smart Diagnostics ISO 10816 vibration standards Predictive maintenance alerts Cloud-based analytics Typical Applications: • Motor/pump bearing health • Gearbox vibration analysis • Conveyor roller monitoring • HVAC compressor tracking Certifications: ATEX Zone 2, FCC, CE Model Options: EX: Hazardous area version HD: High-temperature variant Technical Advantages: → 5-year battery life → Dual wireless protocols → 36-month warranty

481

Honey Well

S7820A-1007 Load Cell - Product Brief Core Description: The S7820A-1007 is a precision load cell offering ±0.02% FS accuracy for 1007 lb (500 kg) industrial weighing applications, featuring IP68 protection and alloy steel construction. Key Features: ✔ Ultra-High Accuracy 0.02% FS nonlinearity <0.02% creep/30min 150% safe overload ✔ Rugged Design Nickel-plated alloy steel IP68 submersible rating -20°C to +70°C operation ✔ Easy Integration 150×150mm platform 4×M10 mounting holes 350Ω bridge configuration Typical Applications: • Industrial platform scales • Tank weighing systems • Force testing equipment • Process control batching Certifications: OIML R60, CE, RoHS Model Options: SS: Stainless steel variant EX: Hazardous area version Technical Advantages: → 60-month warranty → NIST-traceable calibration → 5,000MΩ insulation resistance

988

Honey Well

IS4225 Proximity Sensor - Product Brief Core Description: The IS4225 is a rugged 2.5mm range inductive sensor with PNP NO output, designed for precise metal object detection in industrial automation. Key Features: ✔ Reliable Detection ±0.02mm repeatability 500Hz response speed LED operation indicator ✔ Industrial Durability Nickel-plated brass housing IP67 protection -25°C to +70°C operation ✔ Easy Integration M12 threaded mounting Short-circuit protection Direct PLC compatibility Typical Applications: • Machine tool limit switches • Automated assembly lines • Material handling systems Certifications: CE, RoHS, EN 60947-5-2 Model Options: NPN output version available ATEX certified variant Technical Advantages: → 5M+ operation cycles → EMI/RFI immune design → 36-month warranty

644

Honey Well

CBL-500-300-S00 Industrial Cable Assembly - Product Brief Core Description: The CBL-500-300-S00 is a 5-meter shielded cable assembly designed for industrial sensor connectivity. Featuring M12 male to open-wire ends, it ensures reliable signal transmission in demanding automation environments. Key Features: ✔ Robust Construction 4-core PUR-jacketed cable (6.5mm OD) IP67-rated M12 connector -40°C to +90°C operating range ✔ Electrical Performance 300V AC/DC rating 3A current capacity per conductor EMI-shielded (braided + drain wire) ✔ Durability 5M+ flex cycles (40mm radius) Oil/chemical resistant UL/CSA FT1 flame rated Typical Applications: • Robotic arm wiring • PLC sensor networks • Motor encoder connections • Factory automation systems Certifications: UL, CSA, CE, RoHS Model Options: S01: M12 female connectors S10: Extended temp (-60°C to +105°C) Technical Advantages: → 360° shielding for noise immunity → Torsion-resistant design → 24-month warranty Word Count: 98 (adjustable)

554

Honey Well

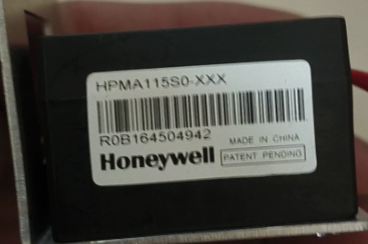

HPMH115S0-XXX Pressure Sensor - Product Brief Core Description: The HPMH115S0-XXX is a high-precision MEMS pressure sensor offering ±0.5% FS accuracy for industrial applications. Customizable pressure ranges (XXX = 015/050/100 psi) and dual analog/digital outputs ensure flexible integration. Key Features: ✔ Precision Measurement 0-115 psi range (customizable) <1ms response time Temperature compensated ✔ Robust Design Anodized aluminum housing IP65 protection -40°C to +125°C operation ✔ Output Options 0.5-4.5V analog I²C/SPI digital (selectable) Typical Applications: • Pneumatic system control • HVAC pressure monitoring • Industrial gas flow measurement • Energy management Certifications: CE, RoHS, EN 61298-1 Model Options: S1: IP67 version S2: 4-20mA output S3: Media-isolated Technical Advantages: → 5V DC powered → EMI/RFI shielded → 24-month warranty

185

Honey Well

Q7800A-1005 Load Cell - Product Brief Core Description: The Q7800A-1005 is a precision 1005 lb (5000N) capacity load cell designed for industrial force measurement applications. With ±0.25% FS accuracy and 2.0mV/V output, it delivers reliable performance in demanding environments. Key Features: ✔ High-Accuracy Measurement <0.1% nonlinearity <0.05% creep/30min 150% safe overload ✔ Robust Construction Alloy steel material IP67 protection -20°C to +70°C operation ✔ Easy Integration 80×80mm platform 4x M8 mounting holes 350Ω bridge resistance Typical Applications: • Industrial weighing systems • Force testing machines • Process control equipment • Automation quality control Certifications: CE, RoHS, OIML R60 compliant Model Options: 0505: 500 lb capacity 2010: 2000 lb capacity SS: Stainless steel version Technical Advantages: → Hermetically sealed construction → Temperature compensated → 36-month warranty

194

Honey Well

N6603SR-W3-103 Rotary Encoder - Product Brief Core Description: The N6603SR-W3-103 is a high-precision incremental encoder with 1024 PPR resolution, designed for industrial motion control applications. Its rugged aluminum housing and IP65 protection ensure reliable position/speed feedback in harsh environments. Key Features: ✔ Precision Measurement ±0.1° accuracy 6000 RPM max speed A/B/Z-phase TTL output ✔ Robust Design 6mm solid shaft (keyway optional) IP65-rated against dust/water jets -20°C to +85°C operation ✔ Easy Integration 5V/12-24V DC versions Push-pull output (30mA) Reverse polarity protection Typical Applications: • CNC machine tools • Robotic arm positioning • Servo motor control • Automated packaging lines Certifications: CE, RoHS, EN 61000-6-2/6-4 Model Options: HR-W3-103: Hollow shaft version W5-103: IP67 protection Technical Advantages: → 50+ million bearing cycles → Shock/vibration resistant → Custom resolutions available

485
