BENTLY

Bently Nevada 3500/22M Marine Axial Position Monitor Key Features: • DNV-GL Certified for offshore/marine use • ±5mm Bidirectional Range (1μm resolution) • Dual-Range Operation (±1mm/±5mm) Enhanced Specs: ✓ ±0.5% Accuracy ✓ 10kHz Dynamic Sampling ✓ -40°C to +85°C Operation Marine Functions: Shaft Eccentricity Compensation ISO 10816-3 Compliance Waveform Capture Certifications: • DNV-GL/ABS Marine • API 670 Annex B • IECEx Zone 1 Applications: Ship Propulsion Systems Offshore Turbines DP Thrusters

276

BENTLY

Bently Nevada 3500/15 Frame Interface Module Core Features: • RS-485 Modbus RTU Communication • Supports 16 Monitor Modules • 100ms System Update Rate Key Specs: ✓ 1500V Channel Isolation ✓ <10ms Alarm Response ✓ -40°C to +70°C Operation Functions: Configuration Management Event Time Stamping System Health Monitoring Compliance: • API 670 • SIL 2 • DNV-GL Applications: DCS/PLC Integration Safety Systems Remote Monitoring

245

BENTLY

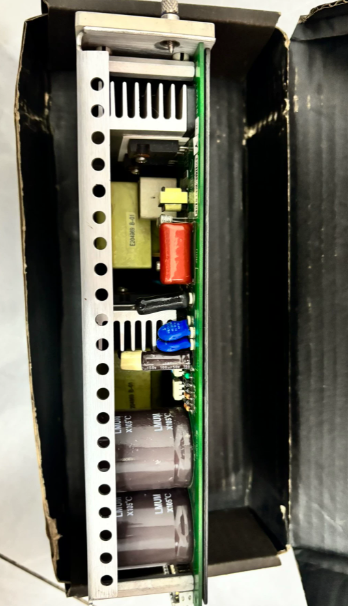

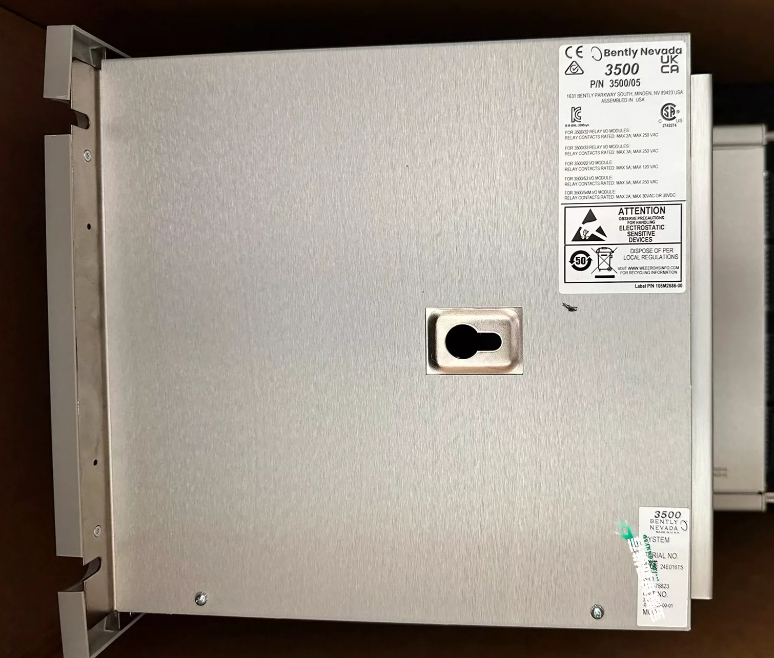

Bently Nevada 3500/05 Rack Power Supply Module Core Features: • Universal Input: 85-264V AC • 24V DC Output: 6A (144W) • Redundant Configuration Support Key Specs: ✓ >89% Efficiency ✓ 20ms Hold-up Time ✓ -40°C to +70°C Operation Protections: Overvoltage/Overcurrent Short Circuit Auto-recovery Compliance: • UL/EN 61010-1 • DNV-GL Marine

749

BENTLY

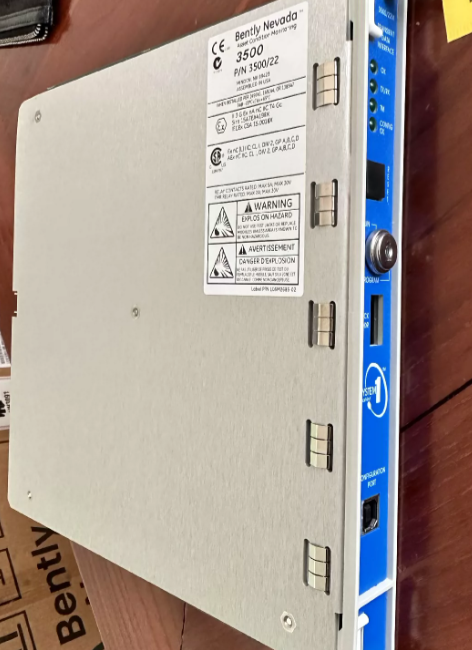

Bently Nevada 3500/22 Axial Position Monitor Module Core Features: • Dual-Channel Thrust Monitoring • ±5mm Bidirectional Range • 4-20mA + Modbus Outputs Key Specs: ✓ 0.01mm Resolution ✓ ±1% Accuracy ✓ 0-1kHz Dynamic Response Protection Functions: 4 Adjustable Alarms per Channel Gap Voltage Monitoring Directional Thrust Discrimination Applications: Turbine Thrust Bearing Protection Compressor Axial Shift Pump Shaft Position Compliance: • API 670 Annex B • SIL 2 Capable • DNV-GL Marine

266

BENTLY

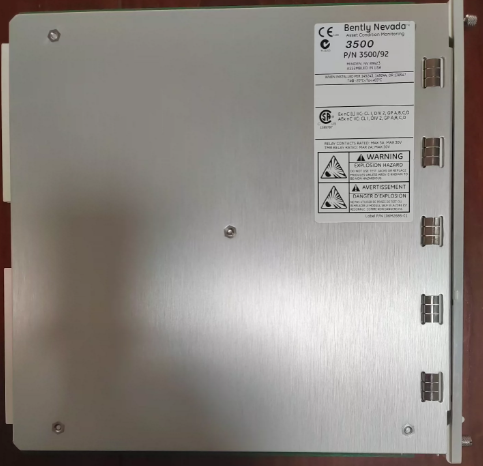

Bently Nevada 3500/92 Dual-Channel Vibration Monitor Core Features: • 2 Independent Inputs (proximity/velocity/accelerometer) • 0-25.4mm (1") Measurement Range • 4-20mA + Modbus Outputs Key Specs: ✓ 0.5Hz-10kHz Frequency Response ✓ ±1% Accuracy ✓ 4 Configurable Alarms per Channel Protection Functions: Dynamic Gap Monitoring Sensor Fault Detection Phase Reference Output Applications: Turbine/Compressor Monitoring Rotating Machinery Protection Predictive Maintenance Compliance: • API 670 5th Ed. • SIL 2 • DNV-GL Marine

162

BENTLY

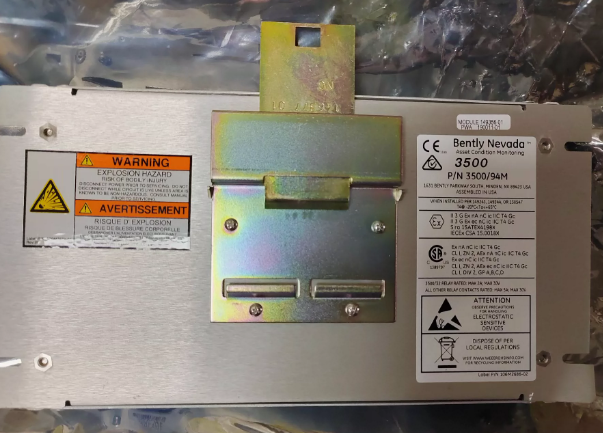

Bently Nevada 3500/94M TMR Overspeed Protection Module Key Features: • SIL 3 Certified (2oo3 voting) • 3-Channel Redundant Input • 1-99,999 RPM Range Critical Specs: ✓ ±0.01% Accuracy ✓ <15ms Response Time ✓ 4 Programmable Setpoints Safety Functions: Continuous MPU Health Monitoring Broken Wire Detection Fault-Tolerant Outputs Certifications: • API 670 Annex K • TÜV SIL 3 • DNV-GL Marine Applications: Turbine Overspeed Protection Nuclear Safety Systems Mission-Critical Rotating Assets

995

BENTLY

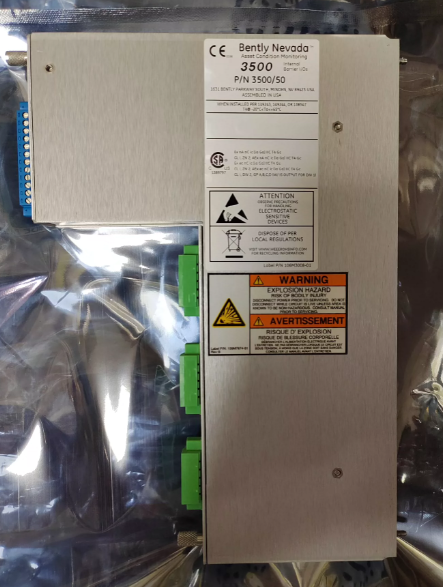

Bently Nevada 3500/50 Seismic Vibration Monitor Module Core Features: • Dual-Channel Input (2x proximity probes) • 0-25.4mm (1") Measurement Range • 4-20mA + Modbus Outputs Key Specs: ✓ 0.5Hz-10kHz Frequency Range ✓ ±1% Accuracy ✓ SIL 2 Functional Safety Protection Functions: 4 Adjustable Thresholds Sensor Fault Detection Gap Voltage Monitoring Applications: Turbine Casing Vibration Structural Health Monitoring Seismic Event Detection Compliance: • API 670 5th Ed. • DNV-GL Marine

332

BENTLY

Bently Nevada 330780-50-00 Velocity-to-4-20mA Converter Core Features: • 4-20mA + HART® Output • 4Hz-1kHz Frequency Range • 0.5-100mm/s Configurable Range Key Specs: ✓ ±1% Accuracy ✓ -40°C to +85°C Operation ✓ ATEX Zone 2 Certified Applications: Structural Vibration Monitoring Turbine Foundation Systems Predictive Maintenance Compliance: • API 670 Annex J • SIL 2 Capable

229

BENTLY

Bently Nevada 330878-90-00 Tachometer Signal Conditioner Core Features: • 1-30,000 RPM Range • Multi-Output: 0-10V + TTL + Modbus RTU • API 670 Annex K Compliant Key Specs: ✓ ±0.01% Accuracy ✓ 10ms Response Time ✓ SIL 2 Capable Applications: Turbine Overspeed Protection Critical Gearbox Monitoring VFD System Integration *Note: Requires 3300XL probes. Configurable via 3300/20M software.*

141

BENTLY

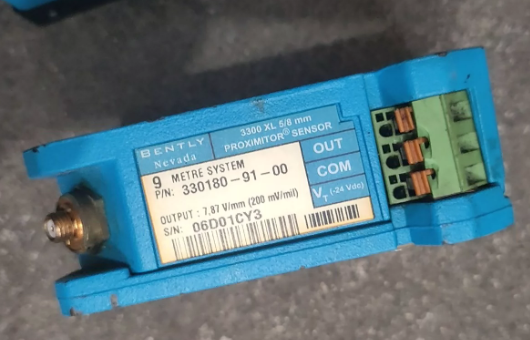

Bently Nevada 330180-91-00 Proximitor® Sensor Driver Core Features: • -1V to -21VDC Output • 0.5Hz-12kHz Bandwidth • Configurable Sensitivity Key Specs: ✓ -10V Gap Voltage (±0.5V) ✓ ±1% Linearity ✓ 300m Max Cable Drive Certifications: • API 670 5th Ed. • CE/RoHS Applications: Shaft Vibration Monitoring Thrust Position Measurement Machinery Protection

713

BENTLY

Bently Nevada 330780-91-00 Velocity Signal Conditioner Core Features: • IEPE Sensor Interface • 4-20mA + HART® Output • 2Hz-1kHz Frequency Range Key Specs: ✓ 0.2-50mm/s Configurable Range ✓ ±1% Measurement Accuracy ✓ -40°C to +85°C Operation Certifications: • API 670 Annex J • ATEX Zone 2 • SIL 2 Capable Applications: Structural Vibration Monitoring Turbine Foundation Systems Predictive Maintenance

151

BENTLY

Bently Nevada 330130-080-00-05 Ultra-Sensitive Vibration Sensor Key Features: • 80mV/mm/s High Sensitivity • 15m Marine-Grade Cable • 1Hz-500Hz Low-Frequency Range Critical Specs: ✓ 0.1-25mm/s Precision Range ✓ IP68 Submersible Rating ✓ -20°C to +85°C Operation Applications: Offshore Structural Monitoring Precision Equipment Foundations Seismic Research Stations Certifications: • DNV-GL Marine Approved • API 670 Class S *Note: Requires HiSens Velomitor™ (PN:330800-05-15). Optimized for low-frequency detection.*

865
